Magic PV Flat Pro

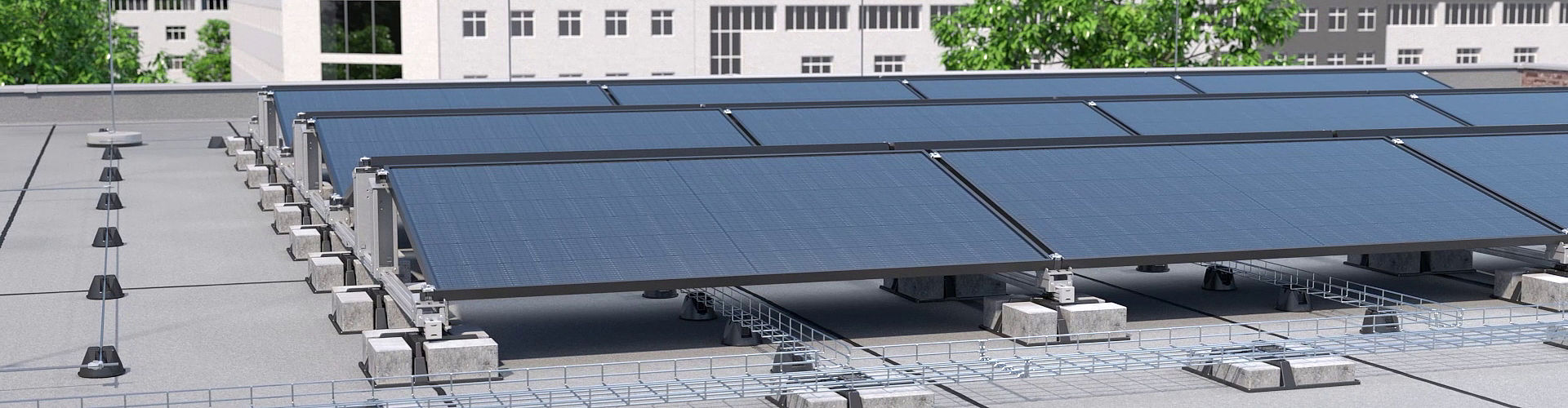

Thanks to the Magic technology, the Magic PV Flat Pro system for flat-roof systems is installed without the need for screws or tools. High-quality materials and system components with maximum load-bearing capacity form the basis for a long-lasting installation system. A cable routing system with mesh cable trays can also be integrated.
The UniBase ballast system provides variable weighting of the overall system by using rectangular blocks – even possible at any time after the installation. Thanks to the flexible system components, the products for flat- and pitched-roof systems can be combined. This reduces the number of individual components required considerably.
Product highlights

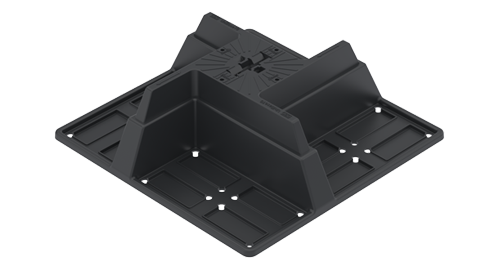

Universal stand ballasting, blocks up to 10 cm
- Low weight in direct comparison to a TrayFix block
- Components can be stacked on top of each other
- Simple alignment through subsequent weighting
- Mounting without tools for different types of adapters
- Recyclable material
- Can be ballasted with standard paving stones 200 x 100 mm (to be purchased locally)
- One UniBase for different applications, such as substructures,
cable routing, mounting rails and much more. - 2 variants available in the heights 60 and 100 mm

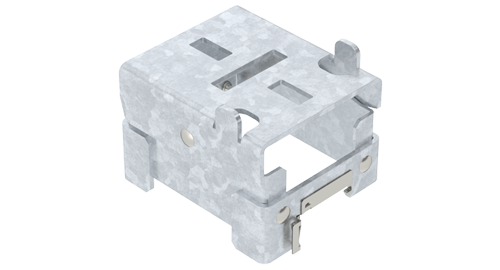

Short support for flat-roof systems
- Installation on the mounting rail without tools
- Continuous adjustment options in every installation position
- Auxiliary bracket for mounting the solar module
- Horizontal slot for the universal clamp as a standard fastening or vertical slot if a single mounting foot is also used as an intermediate support
- An intermediate support for each panel is possible, if required
- Compatible with all module sizes thanks to the angled joint head
- Long service life thanks to the high-quality surface coatings
Support profile adapter for universal stand
- Toolless mounting of adapter with the UniBase
- Toolless mounting of the mounting rail with the adapter
- Integrated anti-slip support surface
- Toolless dismantling of mounting profile
- Simple alignment of the mounting profile
Support profile for flat- and pitched-roof systems
- Plain version for all roofs without specific aesthetic requirements
- Double-sided 10 mm-wide grooves, e.g. for sliding nuts, universal and/or earthing clamps
- Other lateral grooves, e.g. for straight and/or cross-connectors

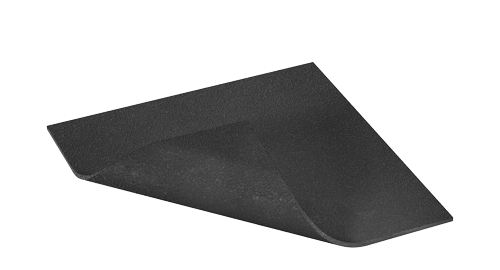

Building protection mat
- Additional protection for the roof surface
- Reduces the mechanical effects on the roof surface
- Avoids any leaks that may occur due to incompatible plastics
- Suitable for increasing the coefficient of friction if, for example, the roof foil requires this, 2 variants available with or without aluminium lamination

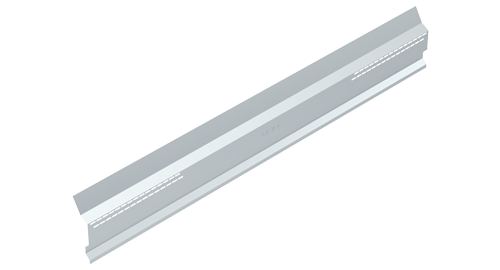

Wind protection panel for flat-roof systems
- Mitigation of the effects of local wind loads, insofar as structural conditions require this (example: use with flat-roof systems facing south)
- Easy pre-mounting by simply pushing into the fastening straps on the STL long supports
- Flexible fastening options with generous slots on the STL long supports using FKS flat-head screws, which are to be ordered separately
Universal clamp for flat- and pitched-roof systems
- Plain version for optimal combination with plain support profile
- Clamping range for module fastening from 30 to 50 mm
- Can be rotated by 90° after engaging in the mounting rail groove
- Can be used as an intermediate or end clamp
- Specific geometry at the corners of the upper part for equipotential bonding to the solar module
- Plastic housing guides the upper part and prevents it from twisting incorrectly during mounting
- The upper part remains in its upper position until the solar module is fixed in place
- Can be clicked onto the provided mounting feet (flat-roof system) and into the mounting rail groove (pitched-roof system)
- Plastic housing functions as a support surface to position the panels correctly
- Long service life thanks to the use of high-quality stainless steel
