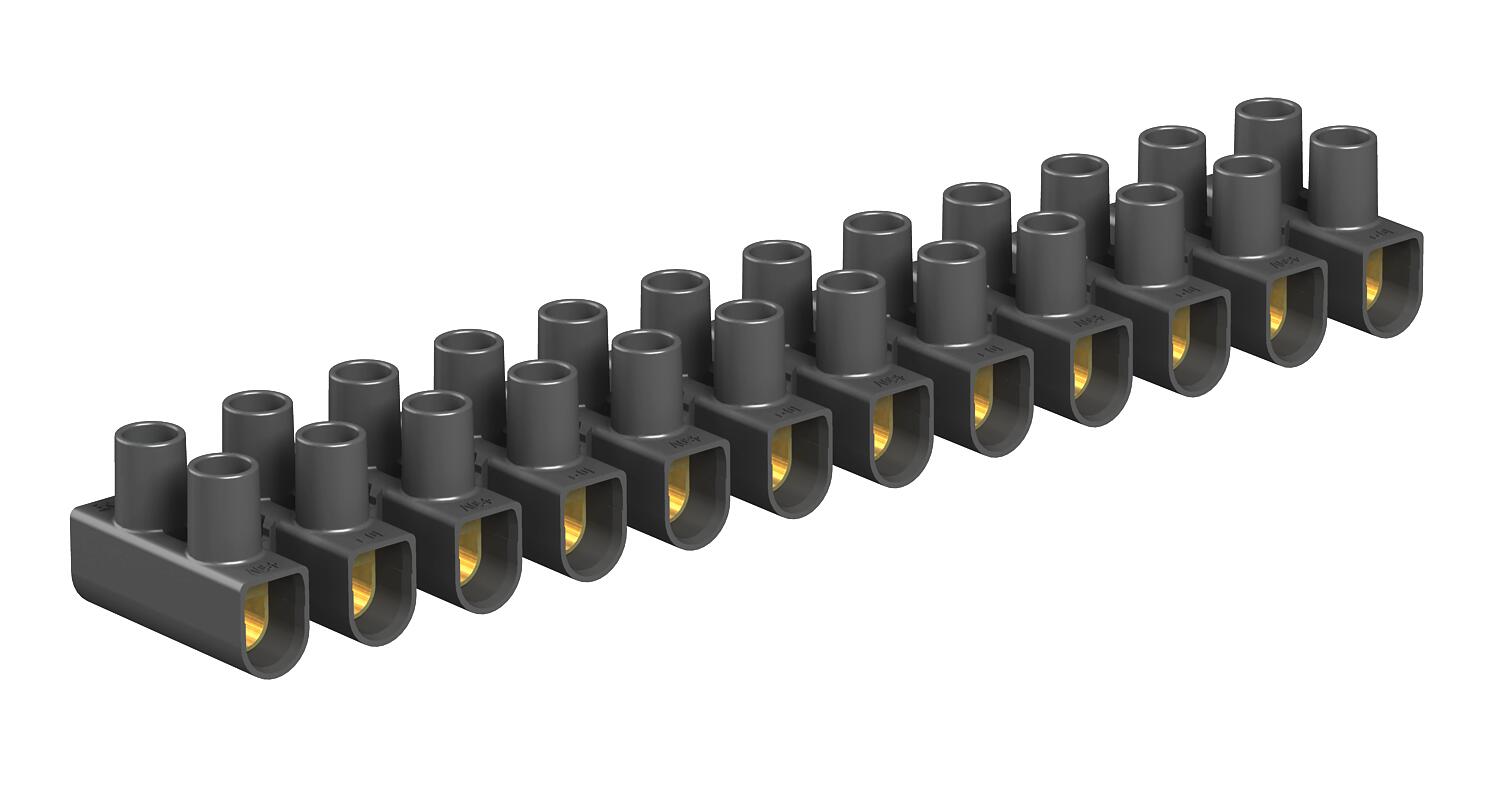

10 mm² series connectors, polypropylene 12 | 10 | | 450 | Black

10 mm² series connectors, polypropylene

Item no. 2056380 | EAN 4012195879374

Item no. / Types

No. of terminals	12

Nominal cross-section, min.	10 mm²

Nominal voltage	450 V

Colour

Product description

Product description

Tested to EN 60998.
Steel terminals, steel screws, electrogalvanised, 12-pole, individual terminals detachable from strips using "twist'n'pull".
Captive upwards screw.
Max. approved ambient temperature to EN 60998: –5 to +80 °C.
Nominal cross-section 10 ÷ mm².
Nominal voltage 450 V.
Nominal current 57 A.
Max. attachment each side: 10 mm² single-wire or 6 mm² multi-wire/flexible.

Technical data

Technical data

Ambient temperature	80 °C
Closing plate required	no
Colour	Black
Connectable conductor cross-section, fine-wire without wire-end ferrule, max.	6 mm²
Connectable conductor cross-section, fine-wire without wire-end ferrule, min.	2,5 mm²
Connectable conductor cross-section, multi-wire, max.	6 mm²
Connectable conductor cross-section, multi-wire, min.	2,5 mm²
Connectable conductor cross-section, single-wire, max.	10 mm²
Connectable conductor cross-section, single-wire, min.	2,5 mm²
Connection position	Side
Cross-section	Max. attachment each side: 10 mm² single-wire or 6 mm² multi-wire/flexible mm²
Dimension	10,0mm²
Drill hole spacing, centre	11,5 mm
Explosion-tested version	no
Height	17 mm
Length	134 mm

Material	Polypropylene
No. of terminals	12
Nominal cross-section, min.	10 mm²
Nominal current	57 A
Nominal voltage	450 V
Number of screwless terminals per pole	2
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-5 °C
Pole number	12
Suitable for flexible conductors	yes
Suitable for multi-wire conductors	yes
Suitable for solid conductors	yes
Transparent	no
Version of electrical connection 1	Screw connection
Version of electrical connection 2	Screw connection
Width	23 mm
