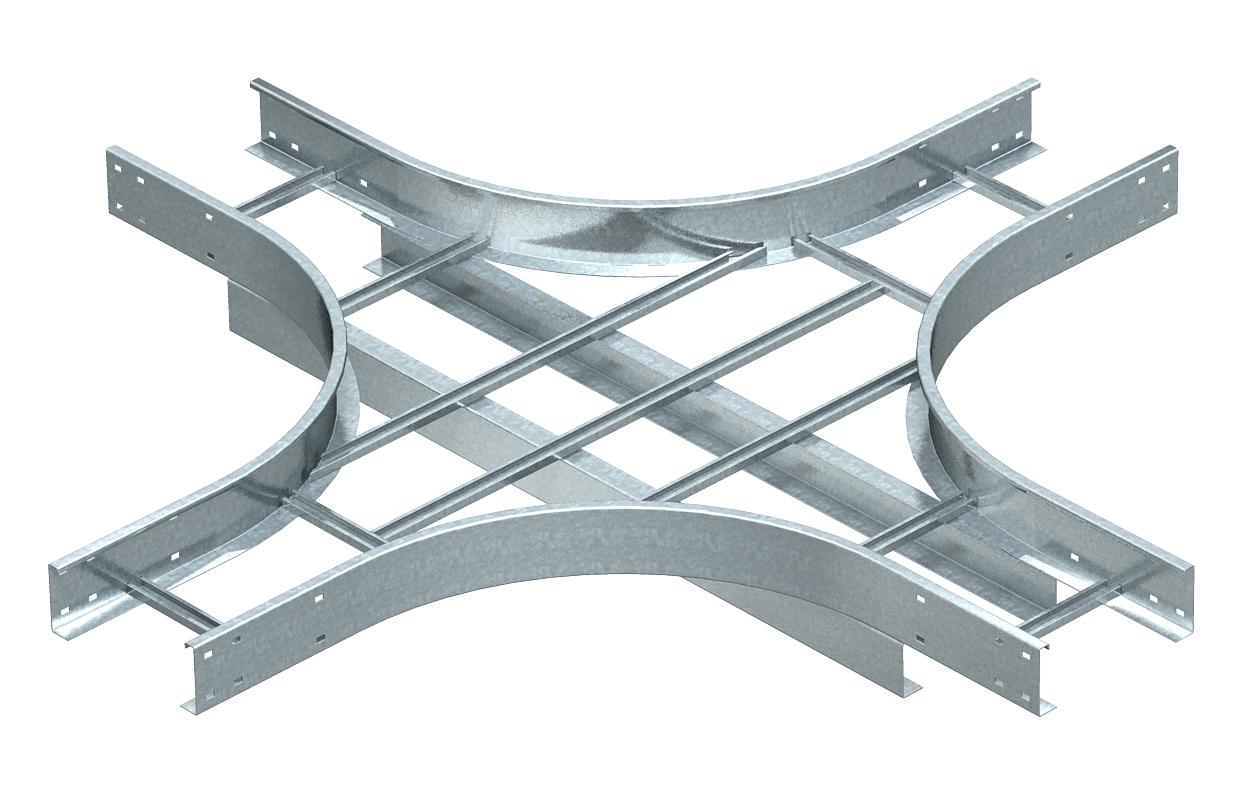

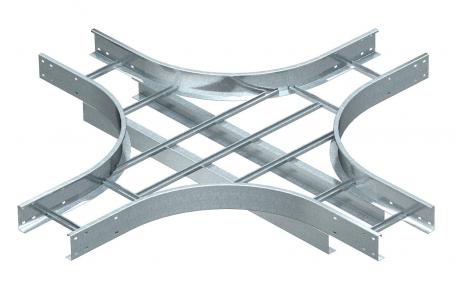

110 FT cross-over
Item no. 6312934 | EAN 4012196303311
- Product description
-
Product description
Horizontal cross-over for all wide span cable ladders of 110 mm side height.
-
- Technical data
-
Technical data

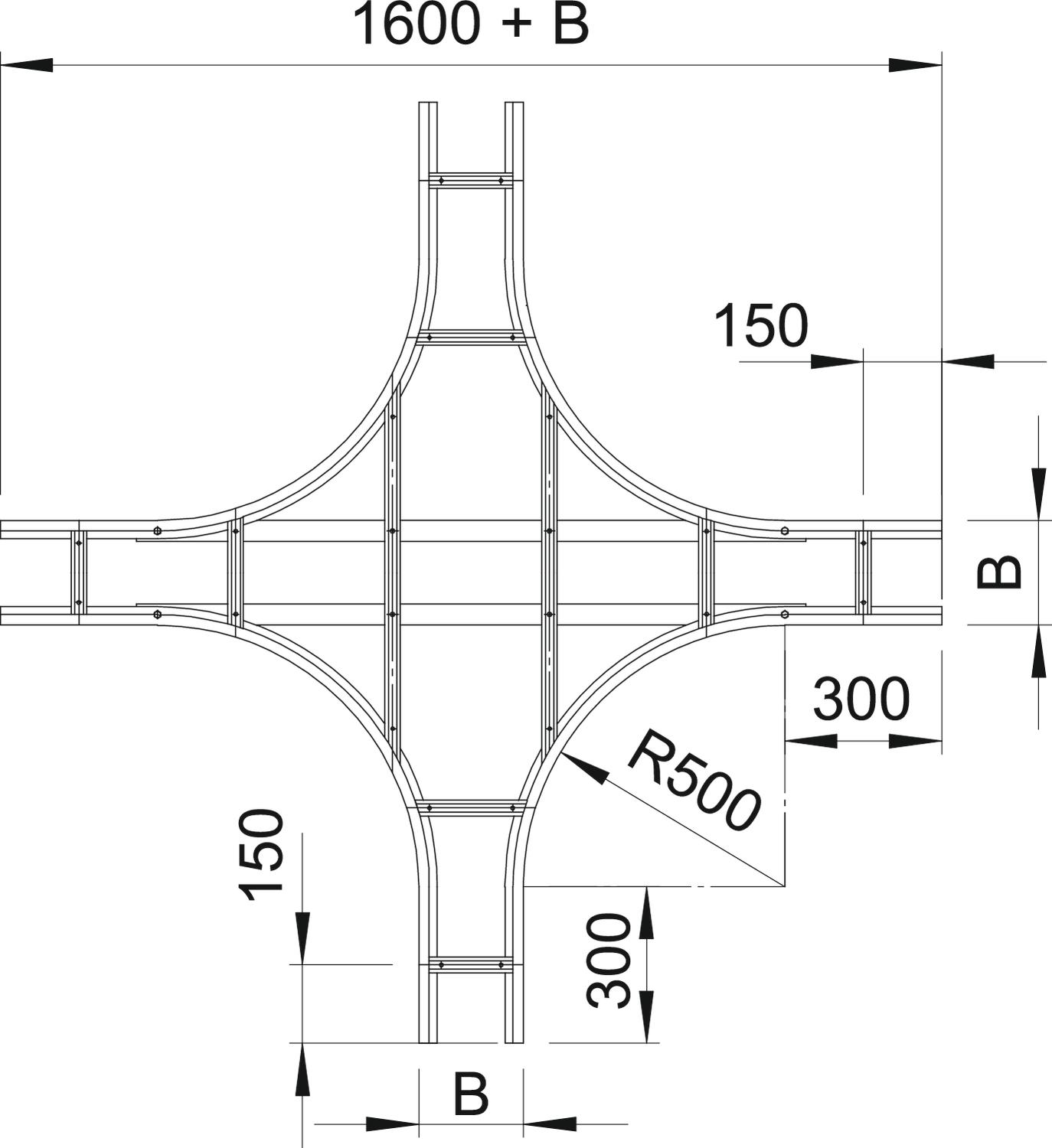

Dimension 110x200 Dimension B 200 mm Dimension R 500 mm Height 110 mm Maintain electrical functions no Material Steel Rail thickness 2 mm Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile unperforated Wide-span version yes Width 200 mm - All types
- Downloads
-
Data sheet WLK 1120 FT / 6312934 , 0.22MB , pdfBrochure Wide span systems , 2.10MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity WLK 1120 FT / 6312934 , 0.10MB , pdfUK Declaration of Conformity WLK 1120 FT / 6312934 , 0.09MB , pdfMounting instructions Weitspannkabelleitern , 11.33MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
