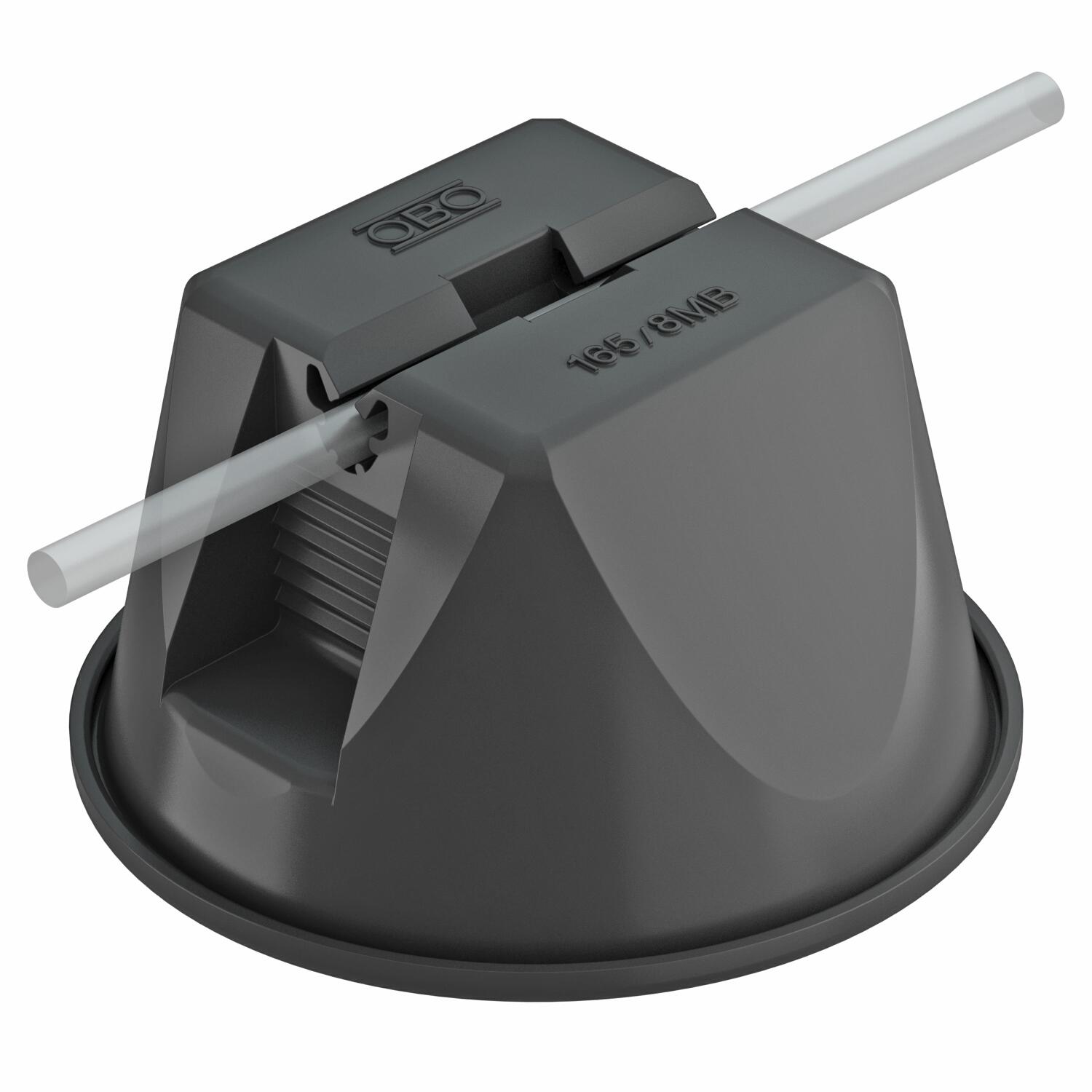

165 MBG... roof cable holder for flat roofs, black, with concrete

Item no. 5218780 | EAN 4012196435234

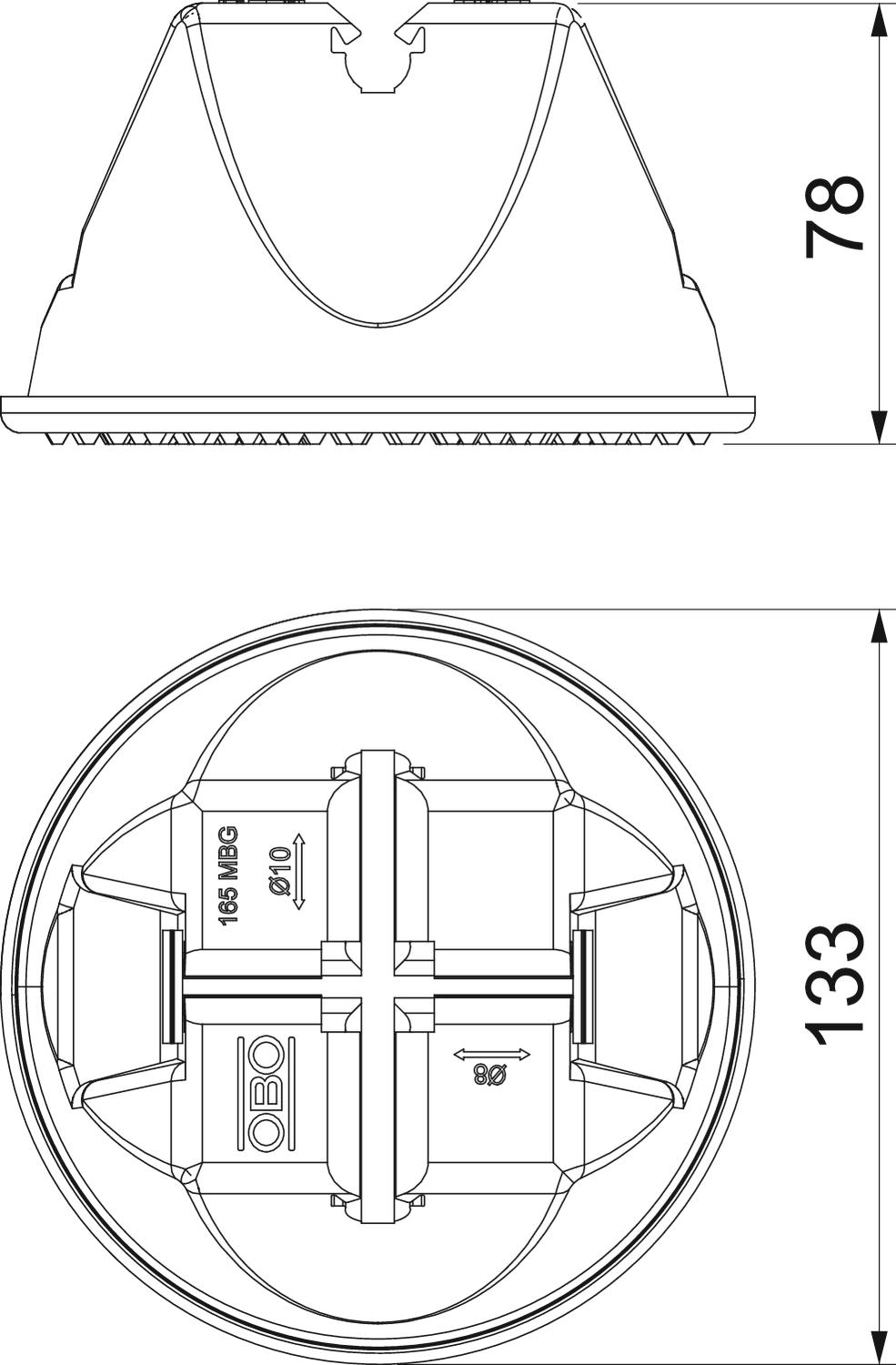

133.5 mm
Product description

Product description

• Closed form with base
• With double conductor holder
• Filling weight 1 kg (frost-resistant concrete)
• Sleeve made of polyethylene, black, UV-resistant and weather-resistant
• Base made of polyamide PA 6, black, UV-resistant and weather-resistant
• Base can be used on almost all roofing felt systems (bitumen, PVC)
• Types 165 MBG...FO: Packed in foil bag
Technical data

Technical data

Application Flat roof
Conductor diameter, max. 6
Conductor diameter, min. 6
Conductor fastening type With clip
Dimension 6mm
Fit Rd 6 mm
Length 133,5 mm
Mounting type Miscellaneous
All types

All types

Types Length Fit Item no. Quantity SSU
165 MBG-8-10 133.5 mm Rd 8-10 mm 5218700
12 piece
165 MBG-8-10 FO 133.5 mm Rd 8-10 mm 5218704
420 piece
165 MBG-6SO 133.5 mm Rd 6 mm 5218780
12 piece
