165 MBG... roof cable holder for flat roofs, grey, with concrete

Item no. 5218708 | EAN 4012196648313

5218708 / 165 MBG-8-10 GR

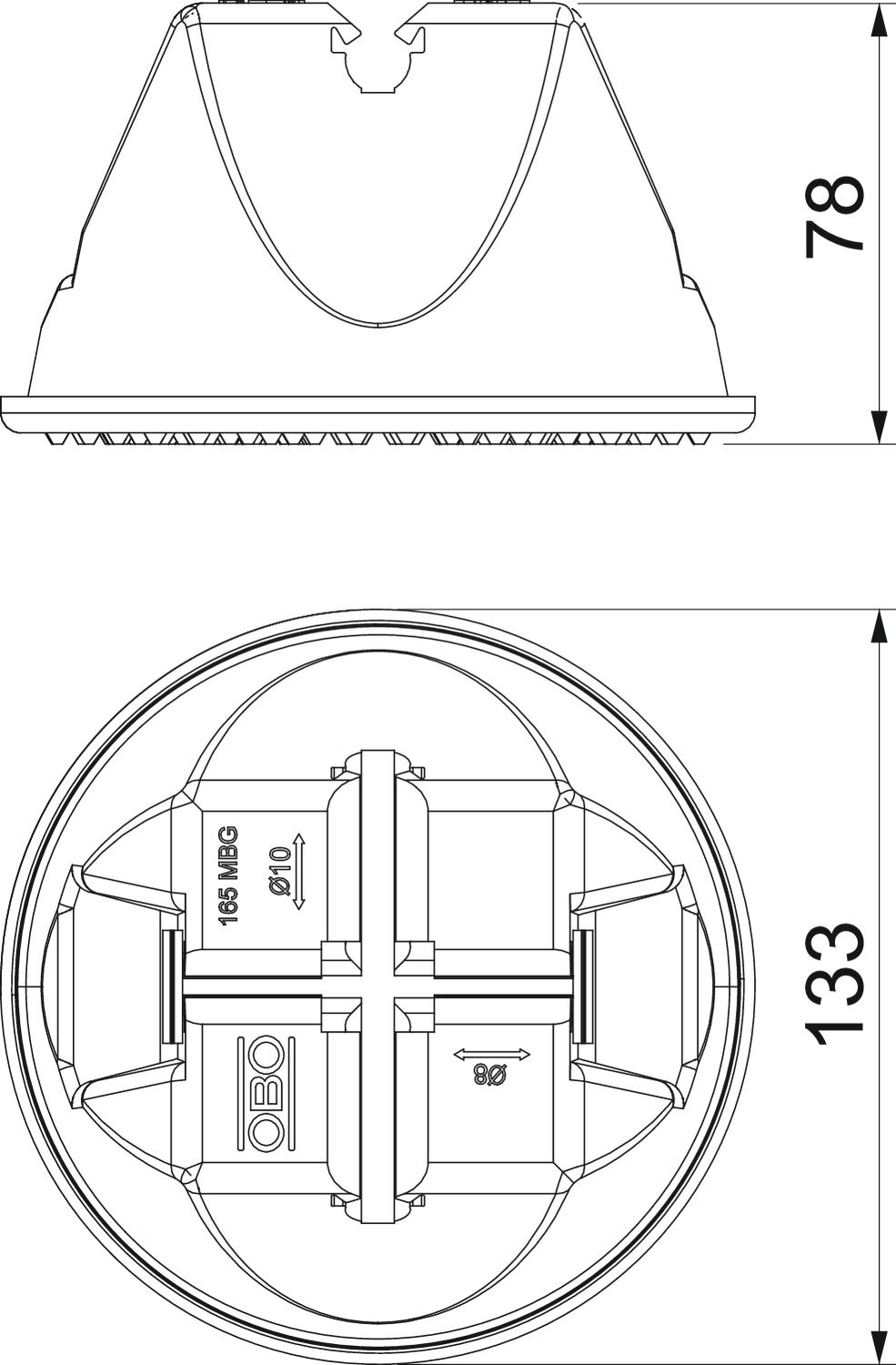

133.5 mm
Rd 8-10 mm
Product description

Product description

• Closed form with base

• With double conductor holder

• Filling weight 1 kg (frost resistant concrete)

• Case made from polyethylene, light grey, UV-resistant and weatherproof

• Base made from polyamide PA 6, light grey, UV-resistant and weatherproof

• Base suitable for nearly all roofing membrane systems (bitumen, PVC)
Technical data

Technical data

Application Flat roof
Colour Grey
Conductor diameter, max. 10
Conductor diameter, min. 8
Conductor fastening type With clip
Dimension 8-10mm
Fit Rd 8-10 mm
Length 133,5 mm
Material Polyamide/Polyethylene
Mounting type Miscellaneous
All types

All types

Types Length Fit Item no. Quantity SSU
165 MBG-8-10 GR 133.5 mm Rd 8-10 mm 5218708
12 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Universal flat conductor adapter for roof conductor holder, type 165/MBG Universal flat conductor adapter for roof conductor holder, type 165/MBG 165 MBG UH 5218882
25 piece
Flat conductor adapter for roof conductor holder, type 165/MBG Flat conductor adapter for roof conductor holder, type 165/MBG 165 MBG HFL 5218885
60 piece
Mesh cable tray adapter for roof conductor holder Mesh cable tray adapter for roof conductor holder 165 MBG HGRM 5218886
50 piece
