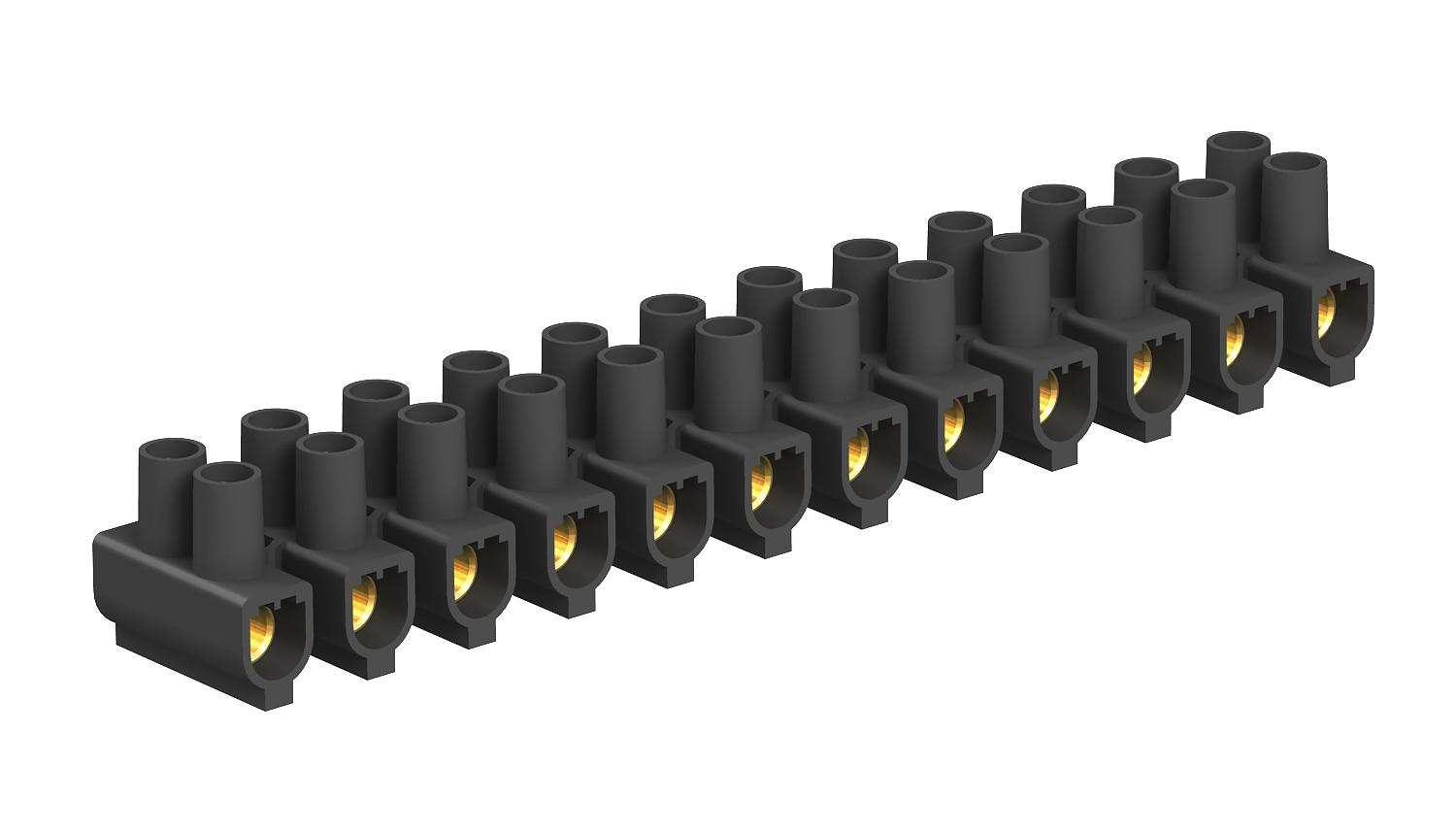

25 mm² series connectors, polypropylene

Item no. 2056585 | EAN 4012195879558

12
25 mm²
750 V
Product description

Product description

Tested to EN 60998.
Brass terminals, steel screws, electrogalvanised and transparently passivated, 12-pole, individual terminals detachable from strips.
Captive upwards screw.
Max. approved ambient temperature to EN 60998: –5 to +80 °C.
Nominal cross-section 25 ÷ mm².
Nominal voltage 750 V.
Nominal current 101 A.
Max. attachment each side: 25 mm² multi-wire or 16 mm² fine-wire.
  • Österreichischer Verband für Elektrotechnik, Austria
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 850 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nominal cross-section 25 mm²
Technical data

Technical data

Ambient temperature 80 °C
Closing plate required no
Colour Black
Connectable conductor cross-section, fine-wire without wire-end ferrule, max. 16 mm²
Connectable conductor cross-section, fine-wire without wire-end ferrule, min. 16 mm²
Connectable conductor cross-section, multi-wire, max. 25 mm²
Connectable conductor cross-section, multi-wire, min. 25 mm²
Connection position Side
Cross-section Max. attachment each side: 25 mm² multi-wire or 16 mm² fine-wire mm²
Dimension 25,0mm²

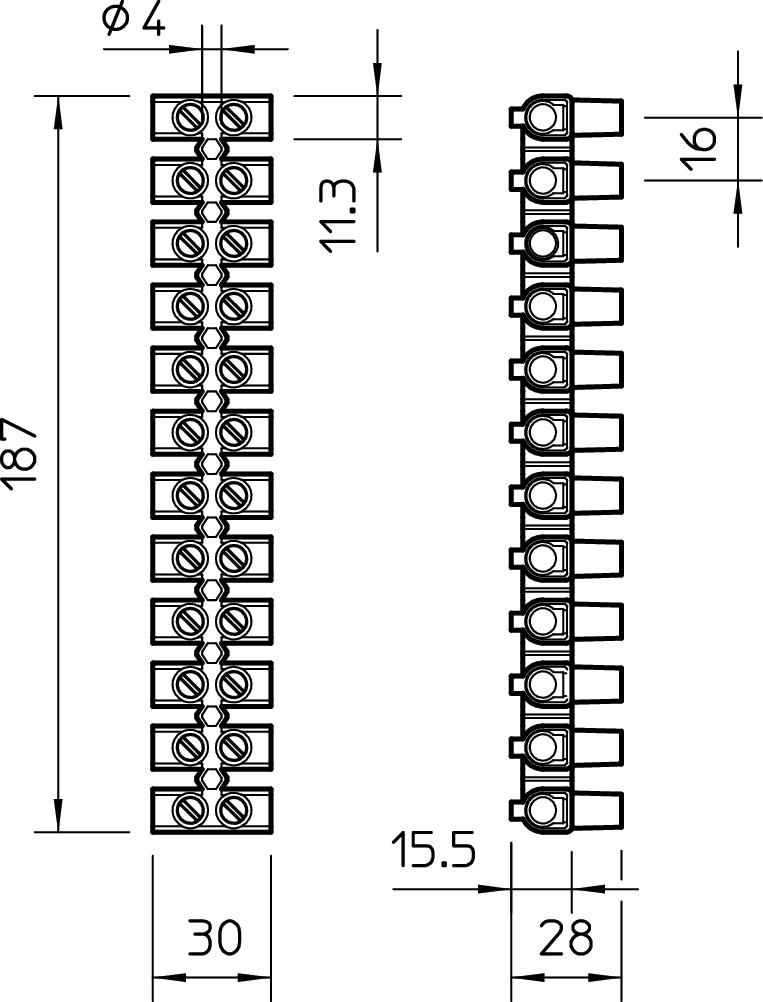

Drill hole spacing, centre 16 mm
Explosion-tested version no
Height 28 mm
Length 187 mm
Material Polypropylene
No. of terminals 12
Nominal cross-section, min. 25 mm²
Nominal current 101 A
Nominal voltage 750 V
Number of screwless terminals per pole 2
Permitted temperature range, max. 80 °C
Permitted temperature range, min. -5 °C
Pole number 12
Suitable for flexible conductors yes
Suitable for multi-wire conductors yes
Suitable for solid conductors yes
Transparent no
Version of electrical connection 1 Screw connection
Version of electrical connection 2 Screw connection
Width 30 mm
All types

All types

Types No. of terminals Nominal cross-section, min. Nominal voltage Colour Item no. Quantity SSU
79 CE WS/EKL 4BE 12 25 mm² 750 V White 2056577
10 piece
79 CE SW/EKL 4BE 12 25 mm² 750 V Black 2056585
10 piece
