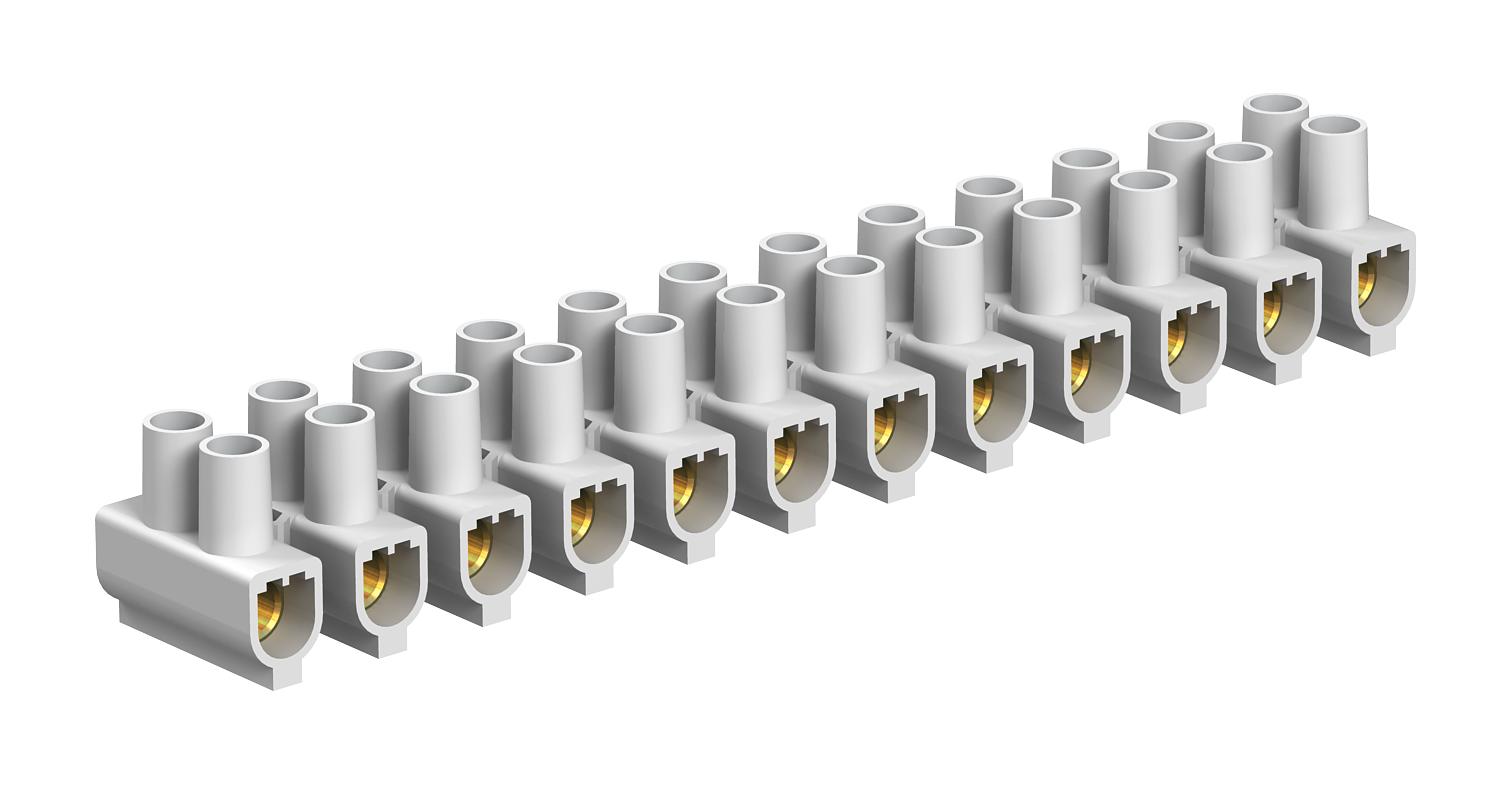

25 mm² series connectors, polypropylene
Item no. 2056577 | EAN 4012195879497
- Product description
-
Product descriptionTested to EN 60998.
Brass terminals, steel screws, electrogalvanised and transparently passivated, 12-pole, individual terminals detachable from strips.
Captive upwards screw.
Max. approved ambient temperature to EN 60998: –5 to +80 °C.
Nominal cross-section 25 ÷ mm².
Nominal voltage 750 V.
Nominal current 101 A.
Max. attachment each side: 25 mm² multi-wire or 16 mm² fine-wire.
-
- Technical data
-
Technical data

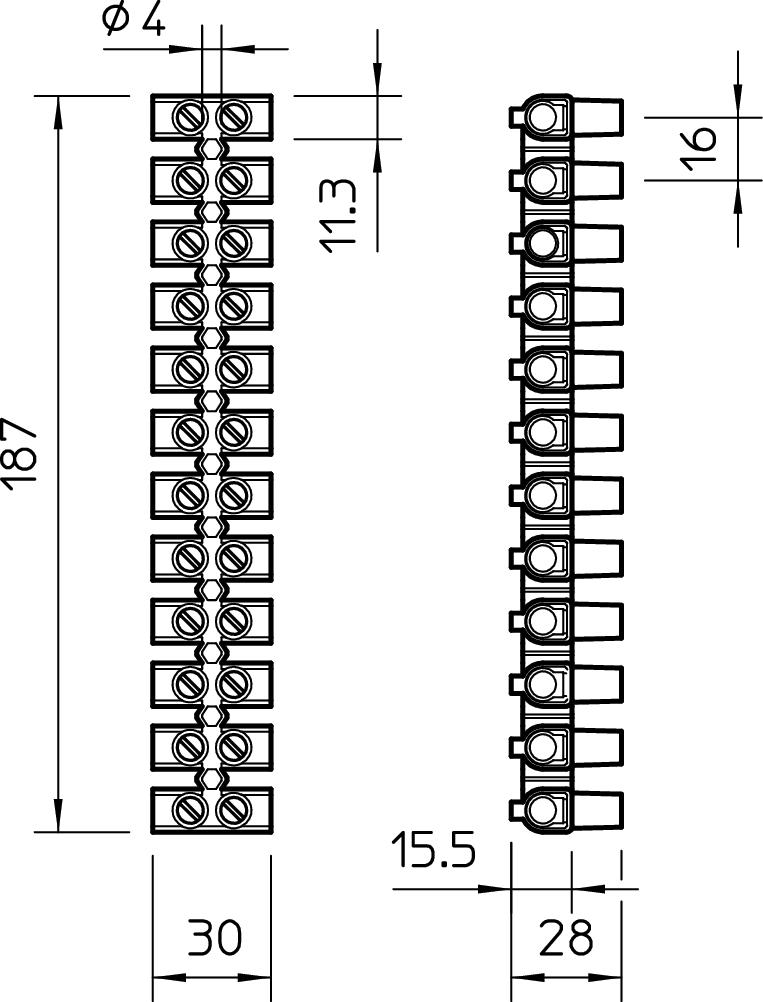

Ambient temperature 80 °C Closing plate required no Colour White Connectable conductor cross-section, fine-wire without wire-end ferrule, max. 16 mm² Connectable conductor cross-section, fine-wire without wire-end ferrule, min. 16 mm² Connectable conductor cross-section, multi-wire, max. 25 mm² Connectable conductor cross-section, multi-wire, min. 25 mm² Connection position Side Cross-section Max. attachment each side: 25 mm² multi-wire or 16 mm² fine-wire mm² Dimension 25,0mm² Drill hole spacing, centre 16 mm Explosion-tested version no Height 28 mm Length 187 mm Material Polypropylene No. of terminals 12 Nominal cross-section, min. 25 mm² Nominal current 101 A Nominal voltage 750 V Number of screwless terminals per pole 2 Permitted temperature range, max. 80 °C Permitted temperature range, min. -5 °C Pole number 12 Suitable for flexible conductors yes Suitable for multi-wire conductors yes Suitable for solid conductors yes Transparent no Version of electrical connection 1 Screw connection Version of electrical connection 2 Screw connection Width 30 mm - All types
