- Product description
-

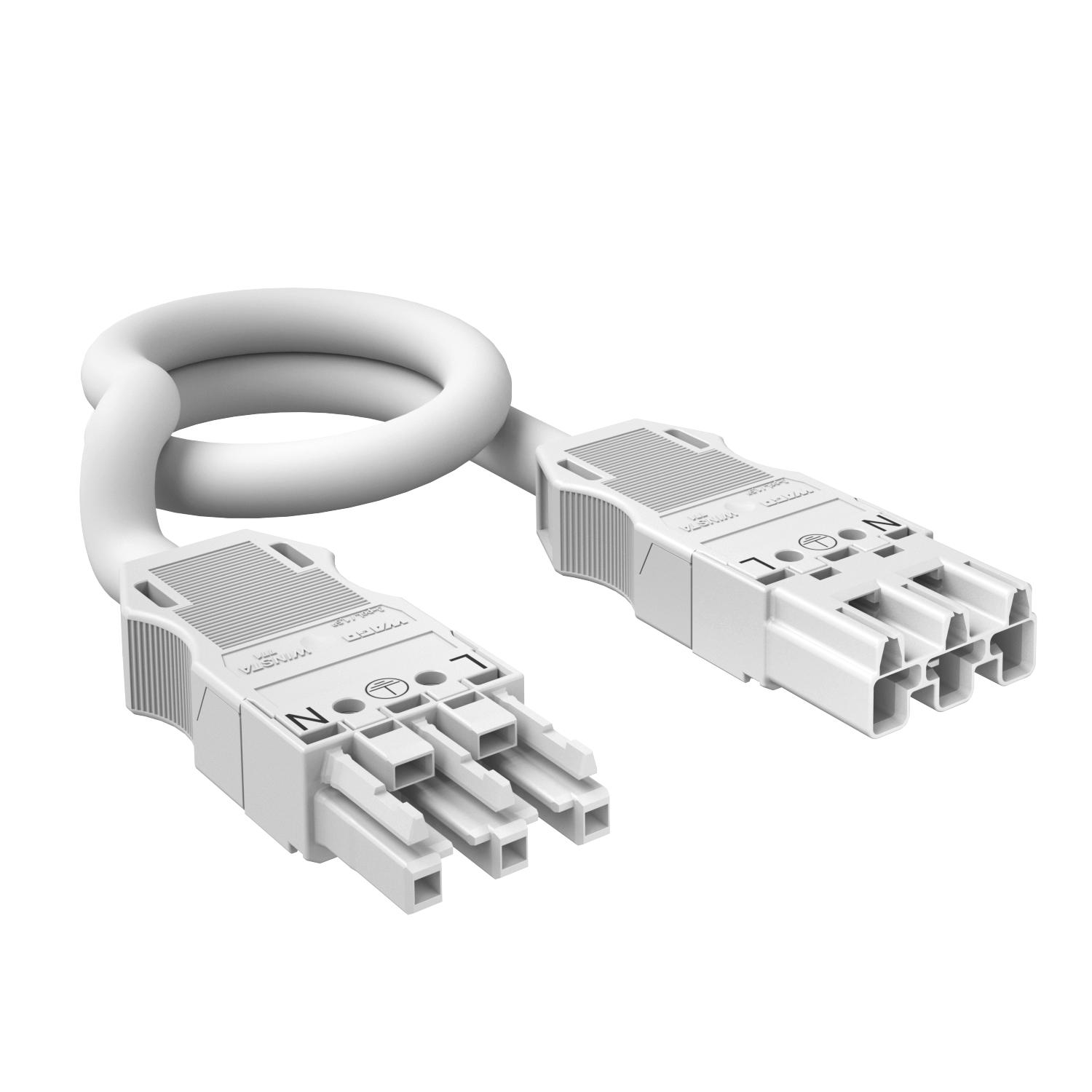

Product descriptionConnection cable 3 x 2.5 mm² in the version socket-connector, type WINSTA® MIDI.
Hose pipe: H05Z1Z1-F 3 x 2.5 mm²
Suitable for connection of ready-for-connection universal supports Connect UTC to an energy distributor.
- Technical data
-
Technical data

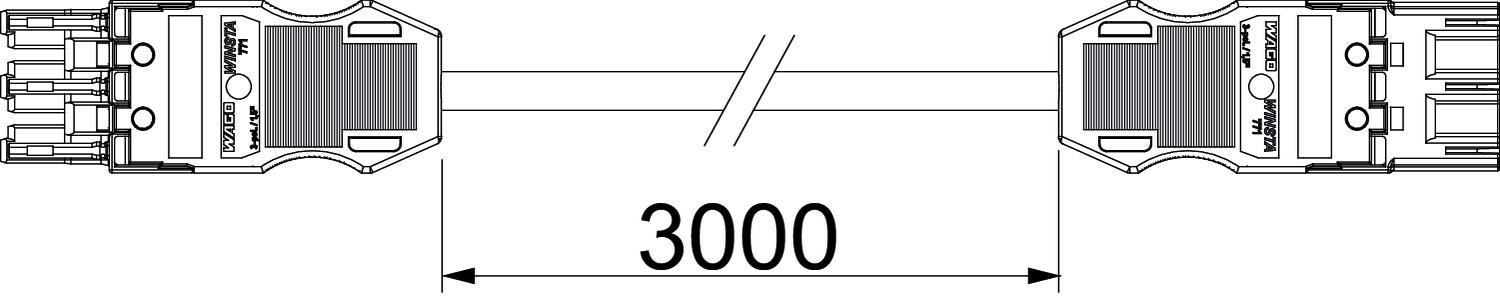

Cable length 3000 mm Colour White Colour of the coding/contact insert White Cross-section 1.5 mm² Dimension 3000x27x15 Halogen-free yes Material Polyamide Nominal current 20 A Nominal voltage 250 V Number of poles 3 Pin labelling L, N, PE Protection rating IP20 Type of locking Separate Version, page 1 socket Version, page 2 Connector - All types
- Downloads
-
Data sheet VL-WIN 3P2.5H3W / 6108736 , 0.15MB , pdfCatalogue Installation systems , 28.45MB , pdfREACH Declaration of conformity VL-WIN 3P2.5H3W / 6108736 , 0.12MB , pdfRoHS Declaration of conformity VL-WIN 3P2.5H3W / 6108736 , 0.12MB , pdf
