3-wire connection cable, halogen-free, cross-section 2.5 mm², Cable length 3 m, white 3000 | 3 | 2.5
morepic-1 morepic-2

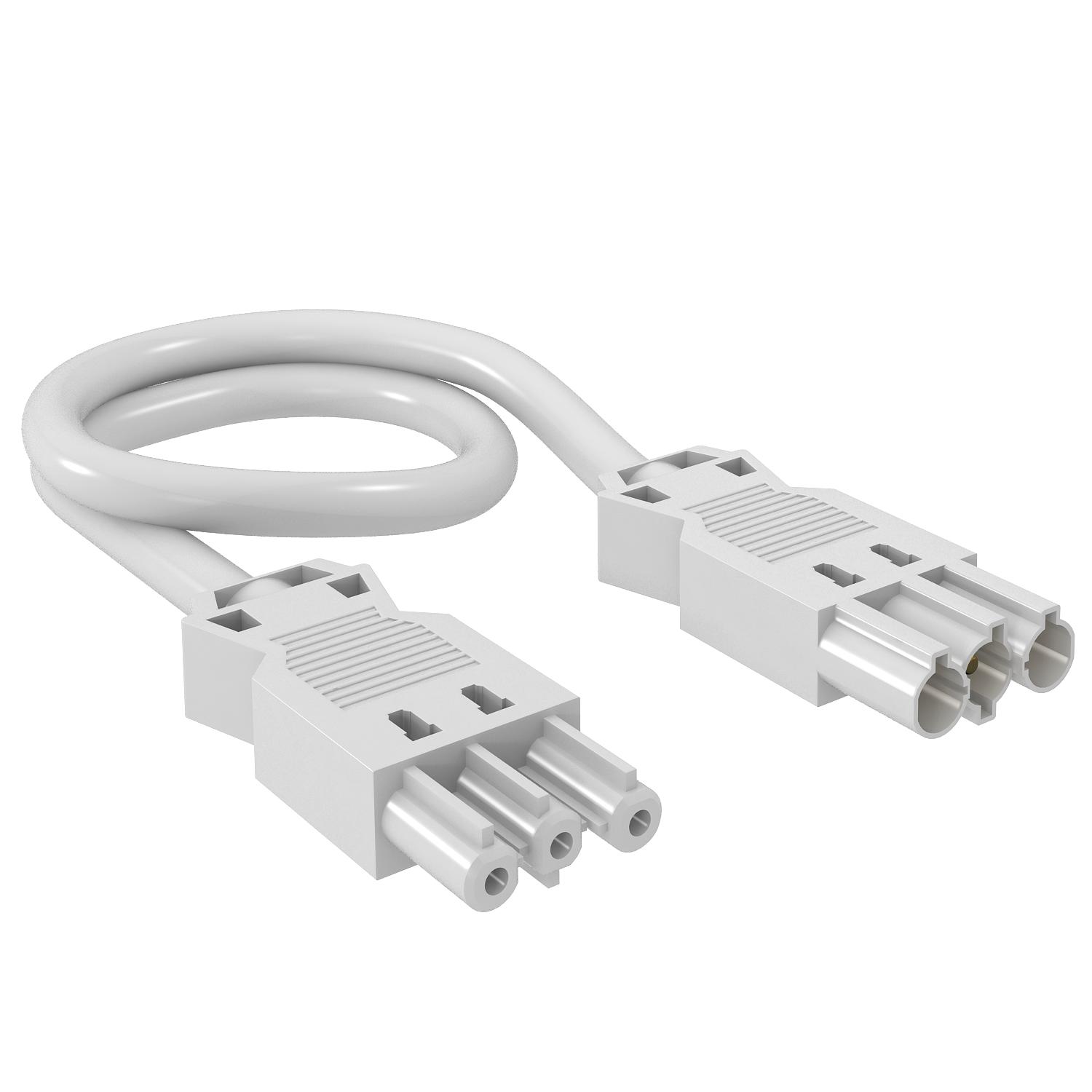

3-wire connection cable, halogen-free, cross-section 2.5 mm², Cable length 3 m, white

Item no. 6108477 | EAN 4012195124788

3
2.5 mm²
Product description

Product description

Halogen-free connection cables 3 x 2.5 mm² in the version socket – connector with GST18i connection system.

  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

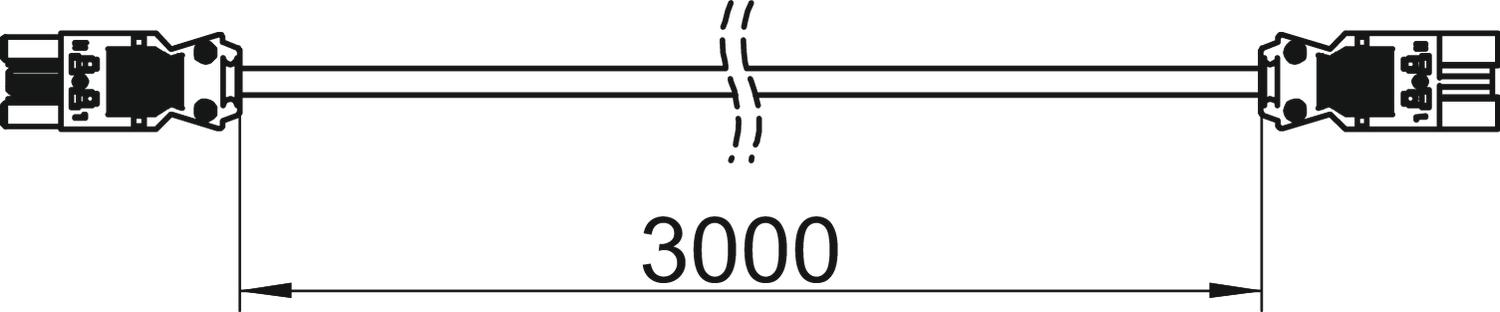

Cable length 3000 mm
Colour White
Cross-section 2.5 mm²
Dimension L3000mm
Halogen-free yes
Nominal current 16 A
Nominal voltage 250 V
Number of poles 3
Protection rating IP40
Version, page 1 socket
Version, page 2 Connector
All types

All types

Types Cable length Number of poles Cross-section Item no. Quantity SSU
VL-3Q2.5 H1 W 1000 mm 3 2.5 mm² 6108475
1 piece
VL-3Q2.5 H3 W 3000 mm 3 2.5 mm² 6108477
1 piece
VL-3Q2.5 H5 W 5000 mm 3 2.5 mm² 6108479
1 piece
VL-3Q2.5 H8 W 8000 mm 3 2.5 mm² 6108482
1 piece
VL-3Q2.5 H10 W 10000 mm 3 2.5 mm² 6108484
1 piece
Downloads

Download

Download
Download

Download
REACH Declaration of conformity VL-3Q2.5 H3 W / 6108477 , 0.12MB , pdf
Download
RoHS Declaration of conformity VL-3Q2.5 H3 W / 6108477 , 0.12MB , pdf
Download

No invitation to tender text is available for this product.
