3-wire connection cable, halogen-free, cross-section 2.5 mm², Cable length 5 m, black 5000 | 3 | 2.5
morepic-1 morepic-2

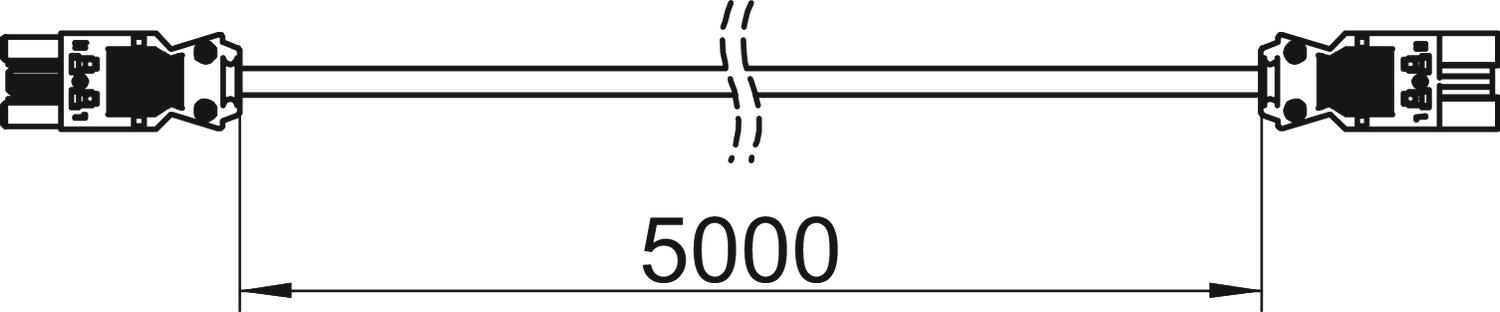

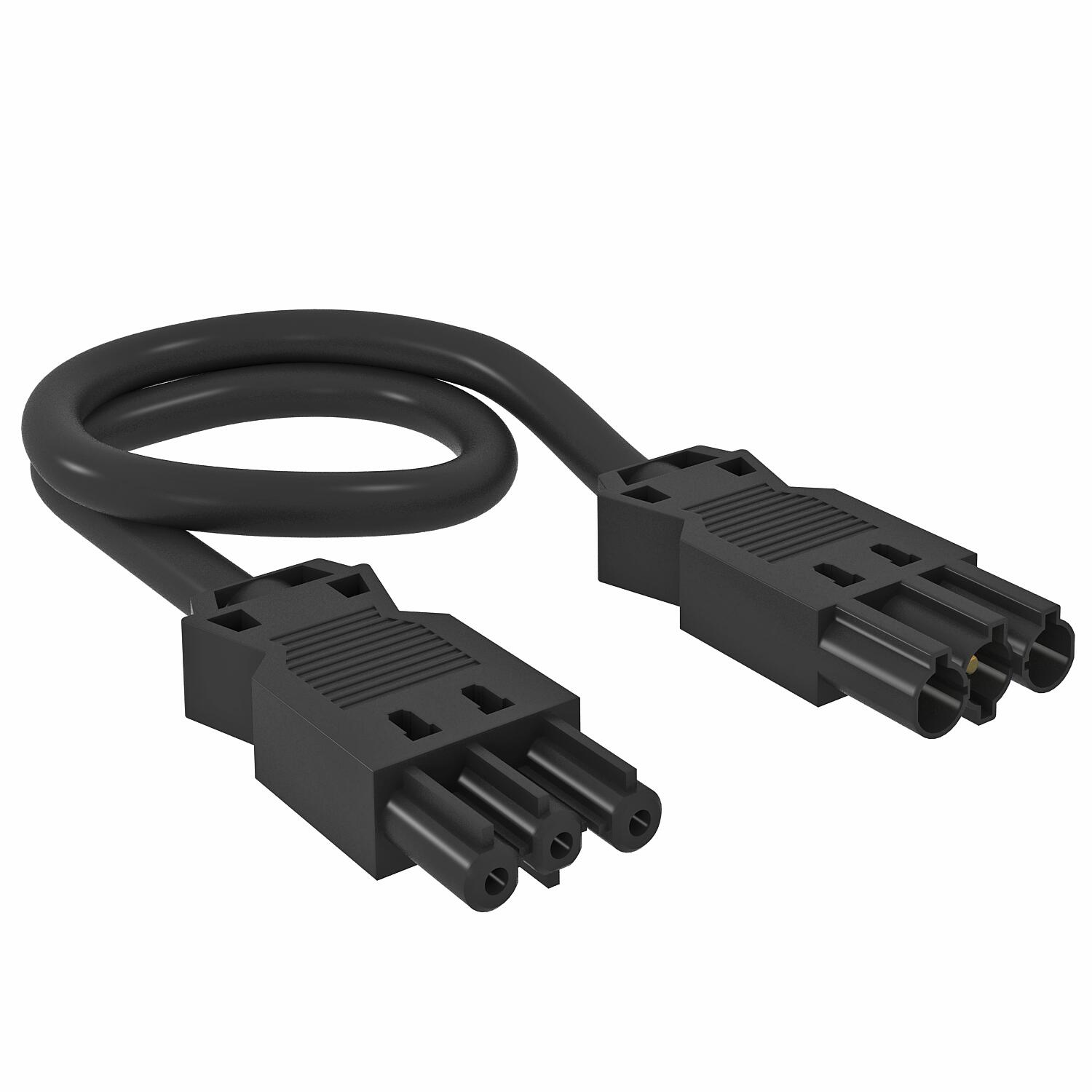

3-wire connection cable, halogen-free, cross-section 2.5 mm², Cable length 5 m, black

Item no. 6108454 | EAN 4012195124436

3
2.5 mm²
Product description

Product description

Halogen-free connection cables 3 x 2.5 mm² in the version socket – connector with GST18i connection system.

  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cable length 5000 mm
Colour Black
Cross-section 2.5 mm²
Dimension L5000mm
Halogen-free yes
Nominal current 16 A
Nominal voltage 250 V
Number of poles 3
Protection rating IP40
Version, page 1 socket
Version, page 2 Connector
All types

All types

Types Cable length Number of poles Cross-section Item no. Quantity SSU
VL-3Q2.5 H1 SW 1000 mm 3 2.5 mm² 6108450
1 piece
VL-3Q2.5 H3 SW 3000 mm 3 2.5 mm² 6108452
1 piece
VL-3Q2.5 H5 SW 5000 mm 3 2.5 mm² 6108454
1 piece
VL-3Q2.5 H8 SW 8000 mm 3 2.5 mm² 6108457
1 piece
VL-3Q2.5 H10 SW 10000 mm 3 2.5 mm² 6108459
1 piece
