3-wire connection cable, PVC, cross-section 2.5 mm², 8 m length, white 8000 | 3 | 1.5

3-wire connection cable, PVC, cross-section 2.5 mm², 8 m length, white

Item no. 6108724 | EAN 4012196688531

Item no. / Types

Cable length

Number of poles	3

Cross-section	1.5 mm²

Product description

Product description

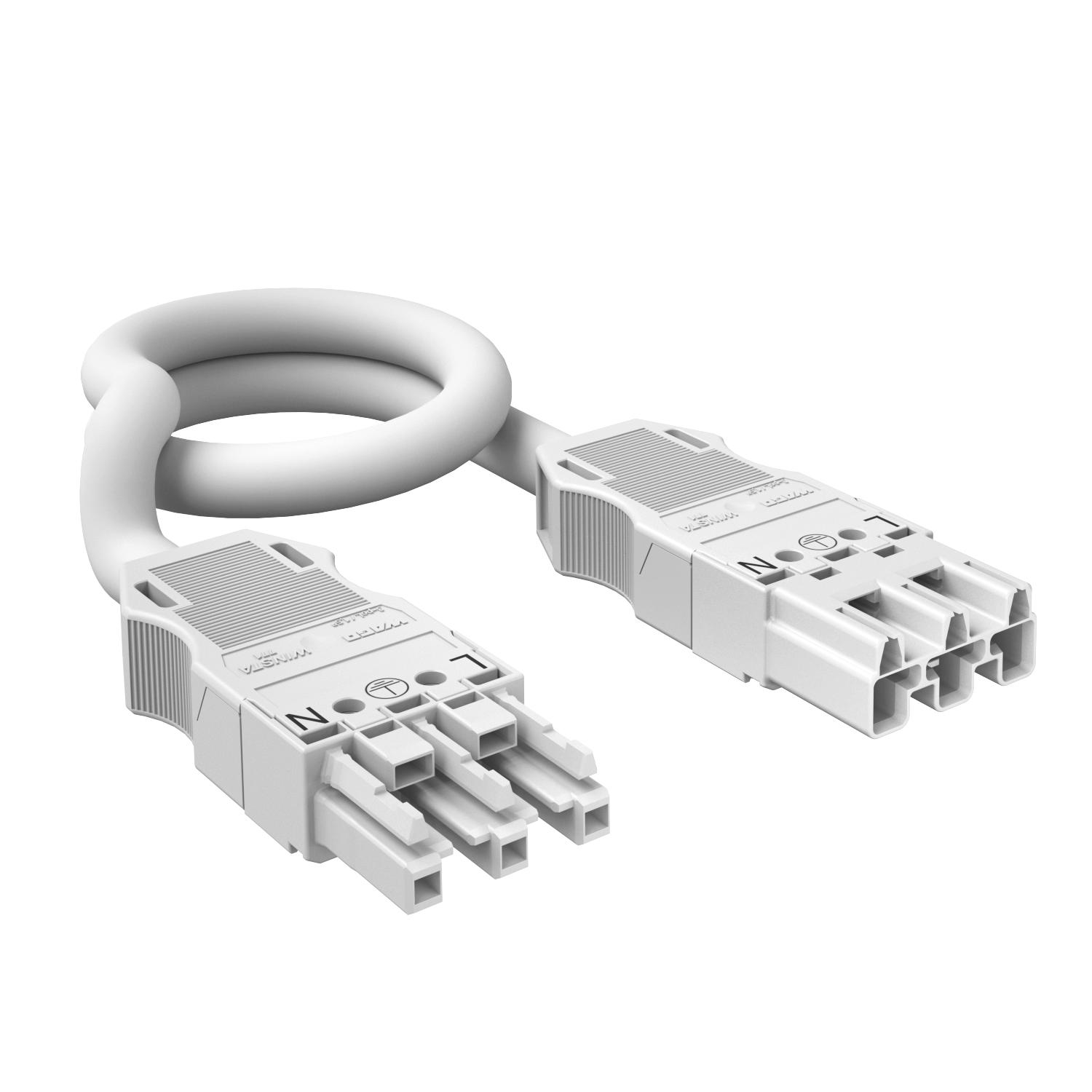

Connection cable 3 x 2.5 mm² in the version socket-connector, type WINSTA® MIDI.

PVC hose pipe: H05VV-F 3 x 2.5 mm²
Suitable for connection of ready-for-connection universal supports Connect UTC to an energy distributor.

Technical data

Technical data

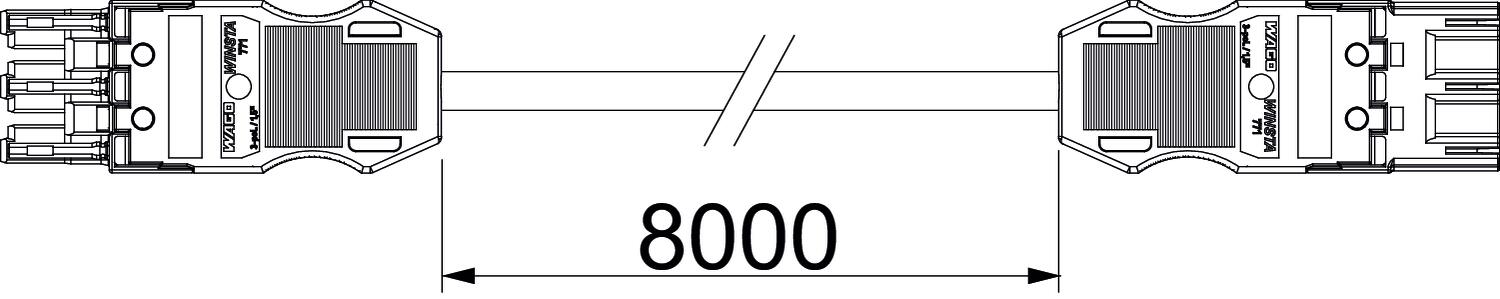

Cable length	8000 mm
Colour	White
Colour of the coding/contact insert	White
Cross-section	1.5 mm²
Dimension	8000x27x15
Halogen-free	no
Material	Polyamide
Mechanical encoding	yes

Nominal current	20 A
Nominal voltage	250 V
Number of poles	3
Pin labelling	L, N, PE
Protection rating	IP20
Type of locking	Separate
Version, page 1	socket
Version, page 2	Connector

All types

All types

Types	Cable length	Number of poles	Cross-section	Item no.	Quantity	SSU
VL-WIN 3P2.5 1W	1000 mm	3	1.5 mm²	6108712	piece	50 piece
VL-WIN 3P2.5 3W	3000 mm	3	1.5 mm²	6108716	piece	20 piece
VL-WIN 3P2.5 5W	5000 mm	3	1.5 mm²	6108720	piece	10 piece
VL-WIN 3P2.5 8W	8000 mm	3	1.5 mm²	6108724	piece	5 piece
