- Product description
-
Product description

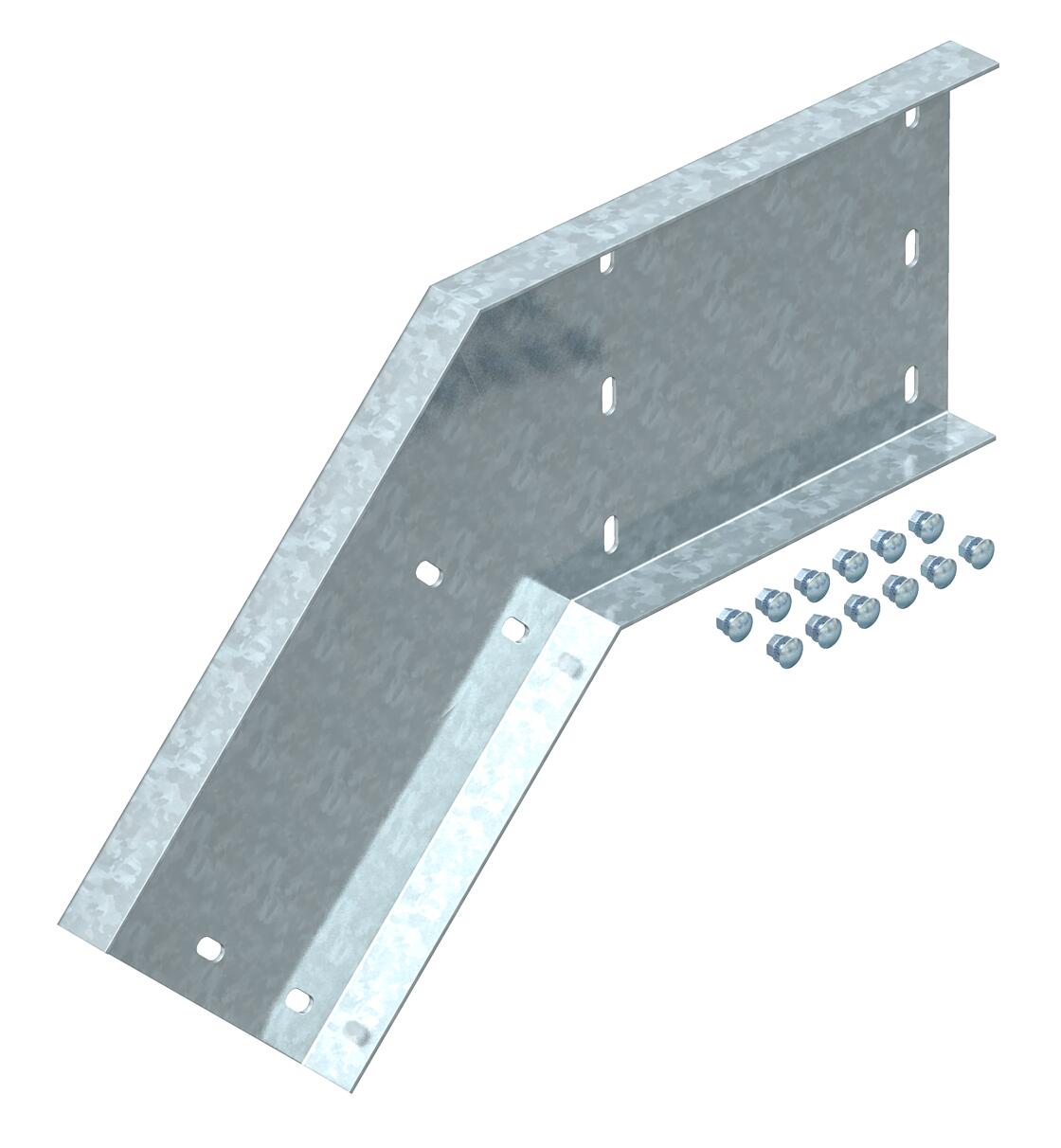

45° angle connector, vertical, for wide span cable ladders of 200 mm side height.
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension 200x500 Maintain electrical functions no Material Steel Plate thickness 2,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray no Suitable for cable tray system height 200 mm Suitable for mesh cable tray no Surface Hot-dip galvanised Version for Angle connector Dimensions

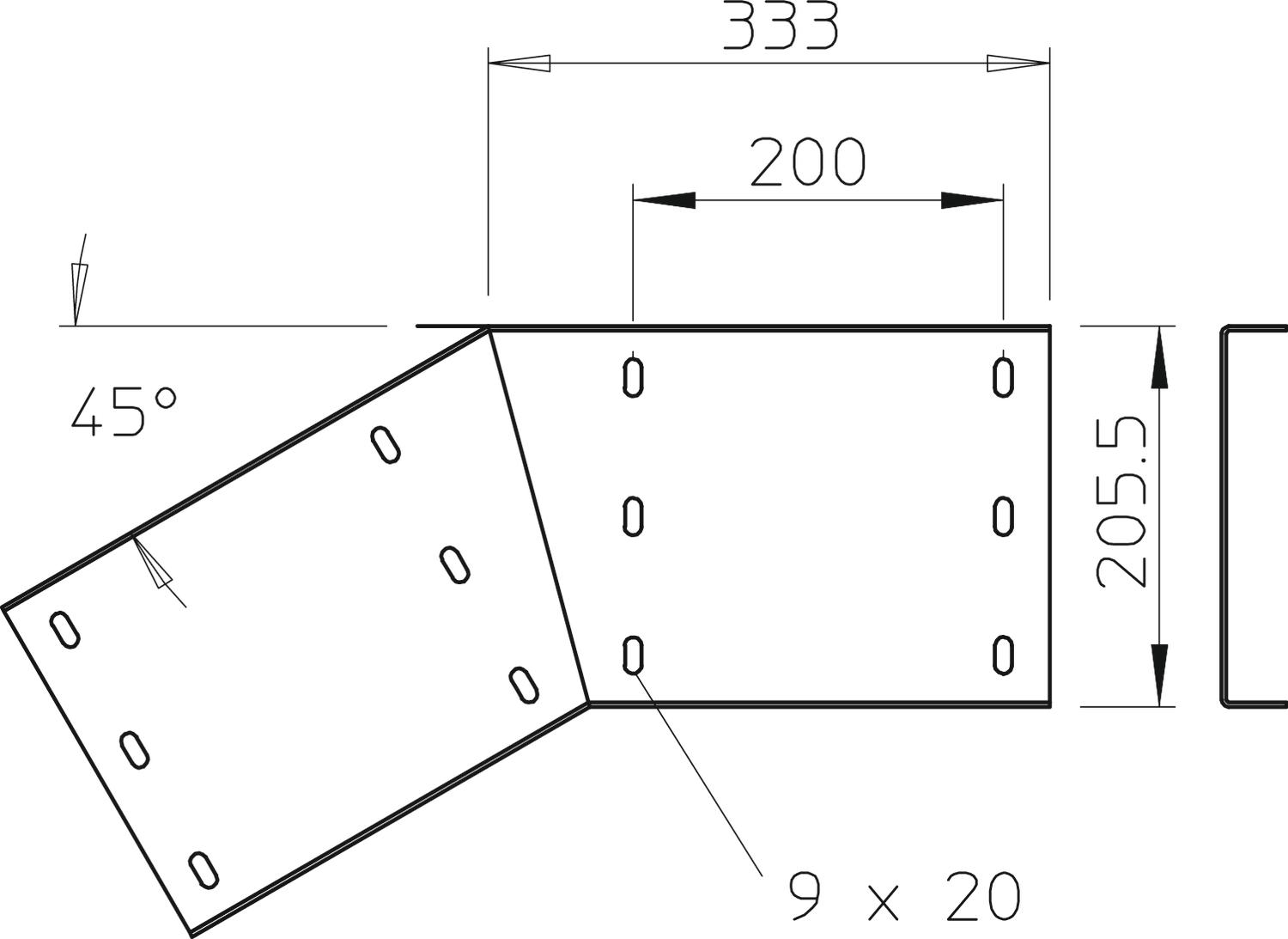

Height 200 mm Length 500 mm Width 35 mm - All types
- Downloads
-
Data sheet WRWV 200 V FT / 6232663 , 0.17MB , pdfDeclaration of conformity WRWV 200 V FT / 6232663 , 0.15MB , pdfREACH Declaration of conformity WRWV 200 V FT / 6232663 , 0.12MB , pdfRoHS Declaration of conformity WRWV 200 V FT / 6232663 , 0.12MB , pdfMounting instructions Weitspannkabelleitern , 11.33MB , pdf
