Note: This article is discontinued. You can find the current article here: 7218112 / Vertical bend, falling, duct height 120 mm, pure white

45° vertical bend, falling

Item no. 7216643 | EAN 4012196532339

Product description

Product description

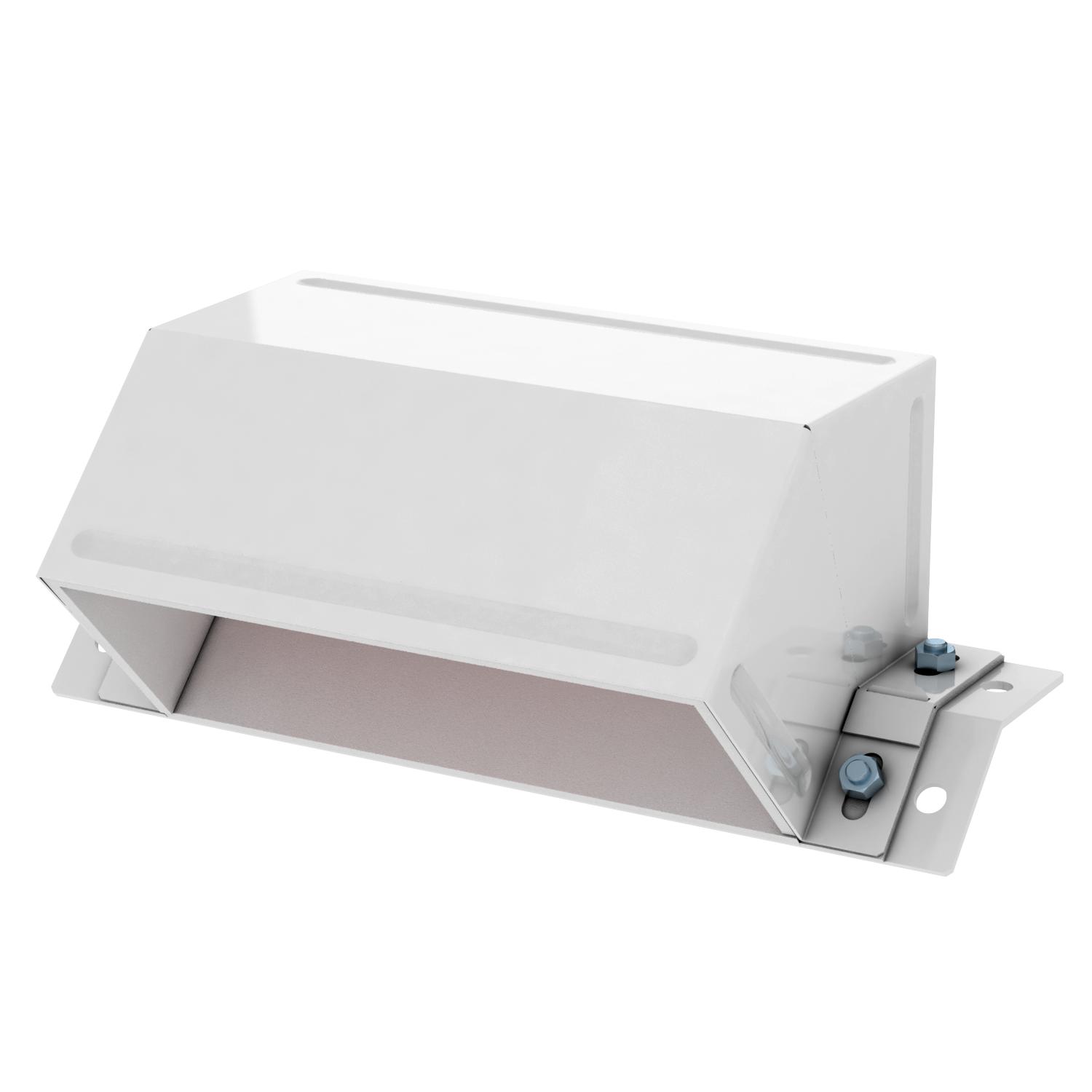

Falling vertical bend for the creation of vertical jumps for suspended mounting of the BSKM 1025, with an acceptance option for M10 threaded rods, including seals and nuts as well as screws for equipotential bonding.
  • Überwachungszeichen PYROLINE Rapid Brandschutzkanal
Technical data

Technical data

Angle of the bend 45 °
Colour Pure white; RAL 9010
Cover fastening Miscellaneous

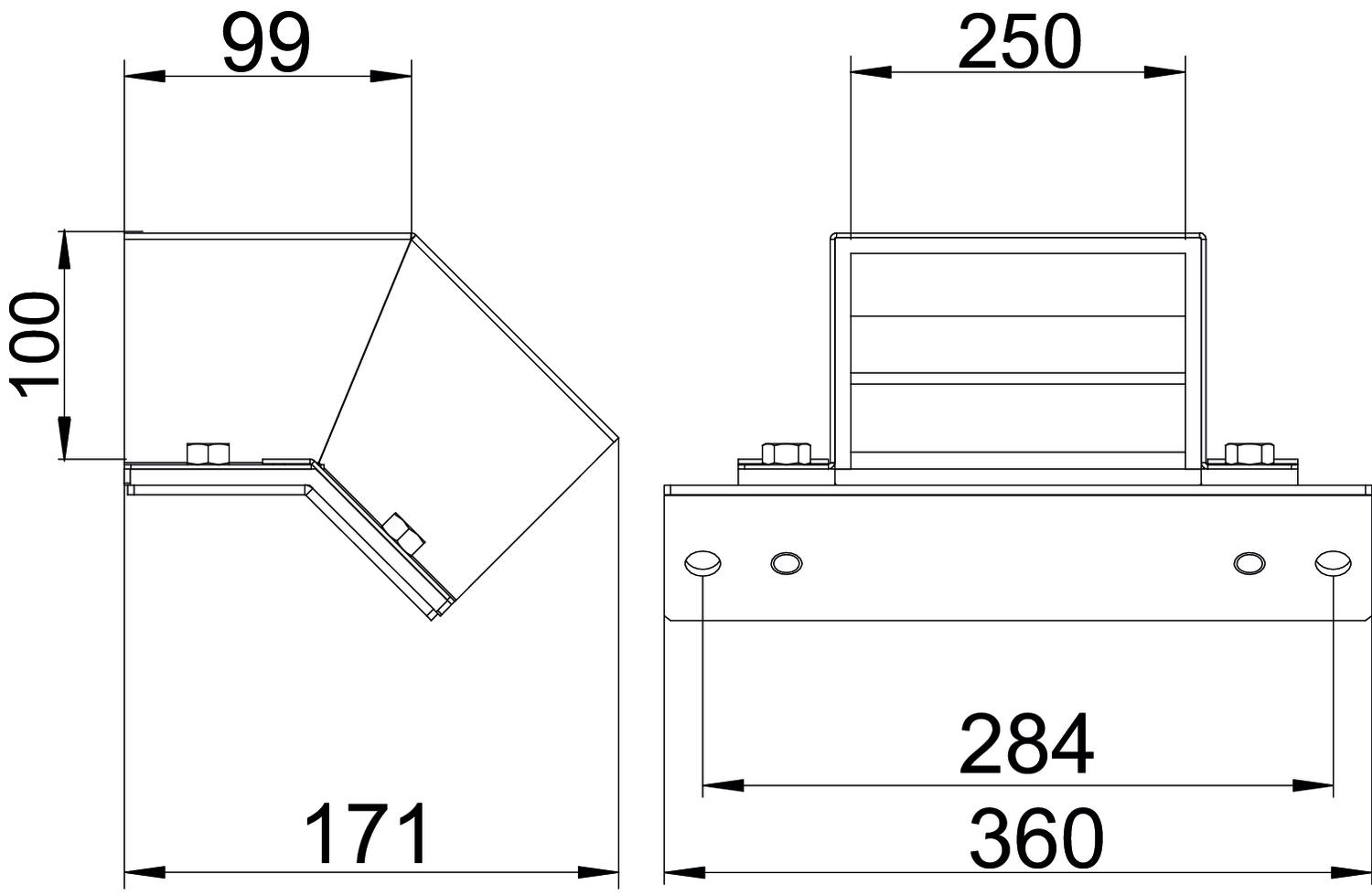

Dimension 100x250
Dimension A 360 mm
Dimension b 250 mm
Dimension B 250 mm
Dimension d 284 mm
Dimension d min. 171 mm
Dimension E 99 mm
Dimension H 100 mm
Dimension h 100 mm
Fire resistance class I − installation duct 120
Height 151 mm
Jacketing Steel
Material Steel
Material of the insulation Miscellaneous
Number of flammable sides 3
Partitions possible no
Surface Painted
Width 360 mm
With perforation no
All types

All types

Types Dimension B Dimension b Dimension H Dimension h Colour Item no. Quantity SSU
BSKM-EF 0711 FS 110 mm 110 mm 70 mm 70 mm - 7216355
1 piece
BSKM-EF 1025 FS 250 mm 250 mm 100 mm 100 mm - 7216455
1 piece
BSKM-EF 0711RW 110 mm 110 mm 70 mm 70 mm Pure white; RAL 9010 7216611
1 piece
BSKM-EF 1025RW 250 mm 250 mm 100 mm 100 mm Pure white; RAL 9010 7216643
1 piece
Downloads

Download

No invitation to tender text is available for this product.
