5-gang-distributor block, 3-pin
Item no. 6108974 | EAN 4012196688302
- Product description
-
Product description

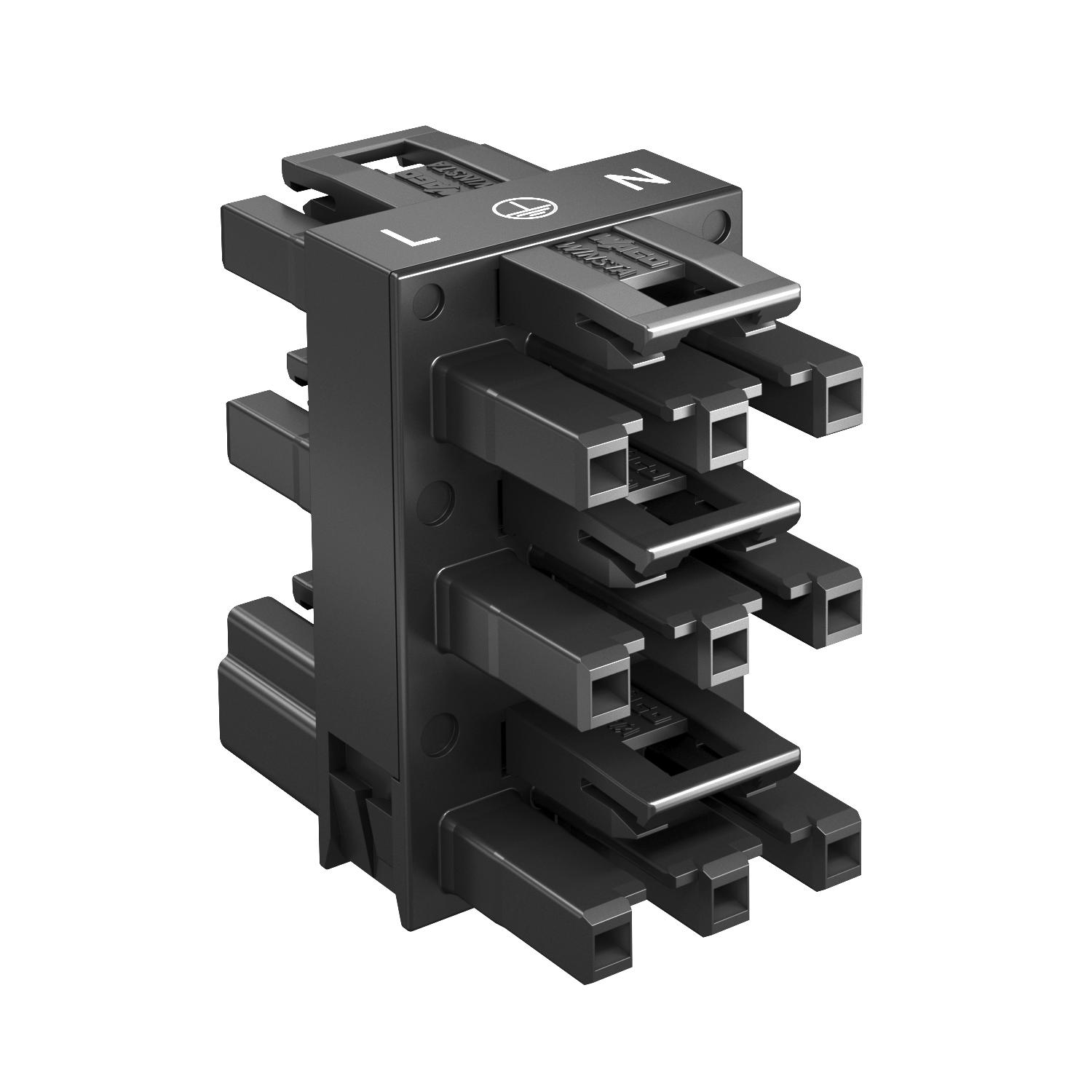

5x distributor, 3-pin, type WINSTA® MIDI.
1 input, 5 outputs with locking lever. 250 V, 25 A.
-
- Technical data
-
Technical data

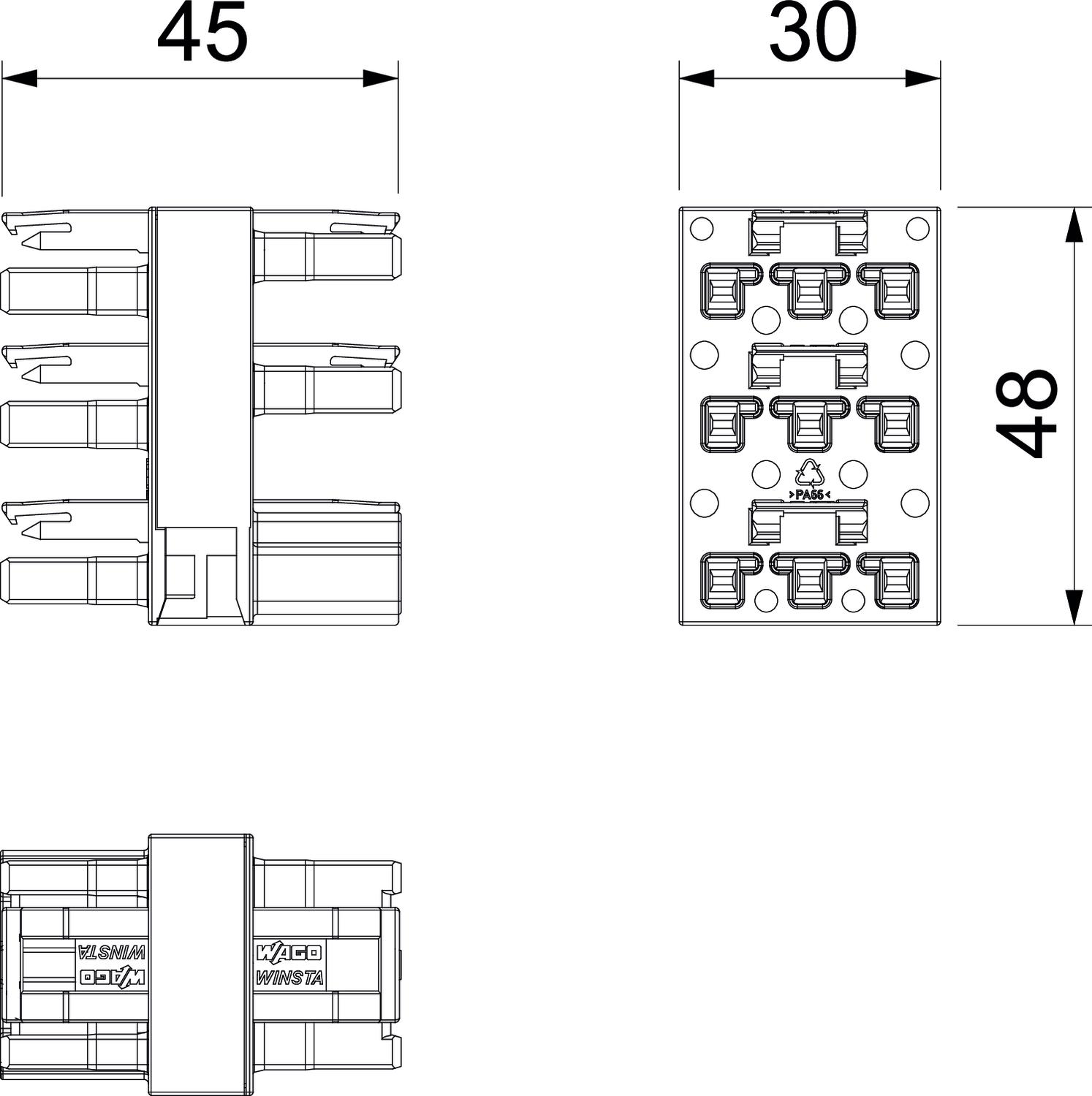

Built-in variants Installation part/plug connection Colour White Contact material CuSn Dimension 46x30x48 Direction of insertion Straight Halogen-free yes Material Polyamide Mechanical encoding yes Nominal current 25 A Nominal voltage 250 V Pin labelling L, N, PE Plug-in system WINSTA® MIDI Pole number 3 Protection rating IP20 Surface treatment of the contacts Miscellaneous Type of locking Integrated in plug connector Dimensions
Height 48 mm Length 46 mm Width 30 mm - All types
