50 A2 straight connector 45 | 45 | 1.5
morepic-1 morepic-2 video-1

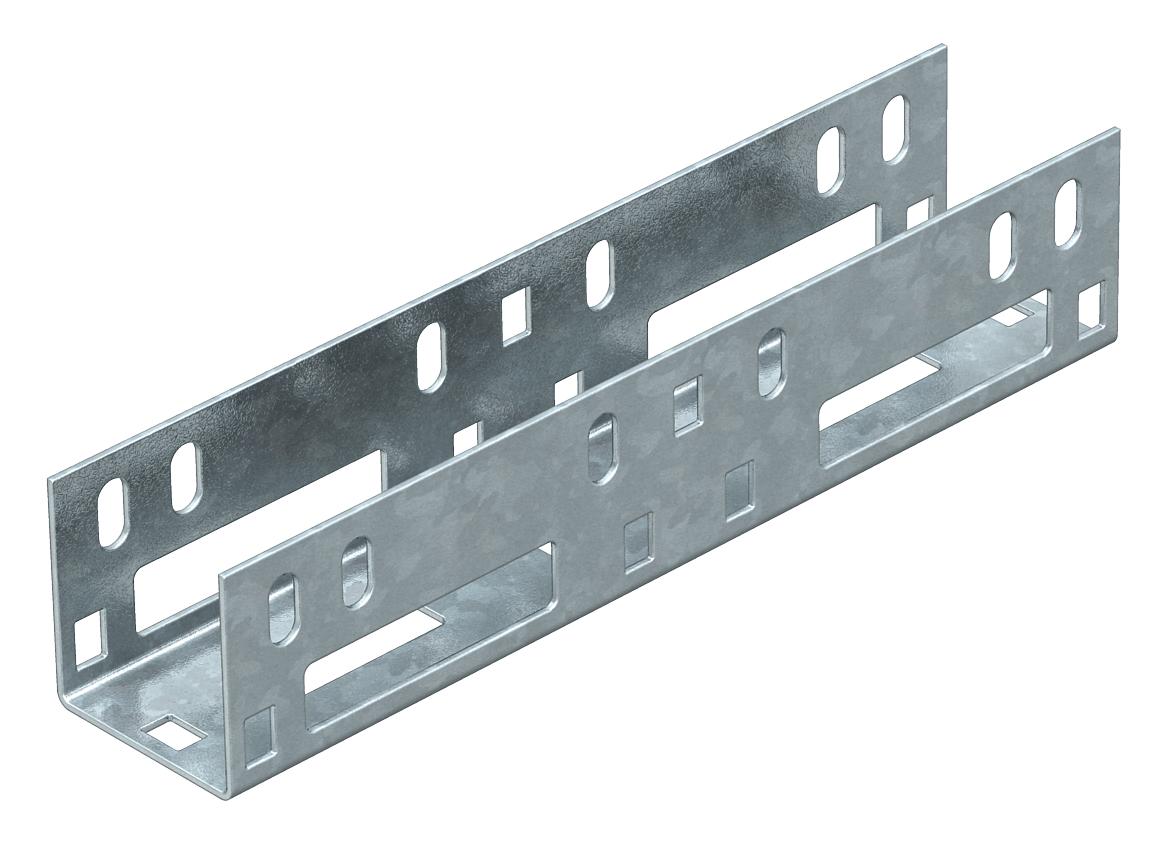

50 A2 straight connector

Item no. 6066629 | EAN 4012195863861

45 mm
45 mm
1.5 mm
Product description

Product description

Straight connector for connection of luminaire support channels and AZ channels.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • AZ small duct, side height 50 mm
Technical data

Technical data

Adjustable connector, horizontal no
Articulated connector, vertical no
Connection type Screw connector
Dimension 45x45x220
Dimension 45x45x220
Material Stainless steel
Plate thickness 1,5 mm
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray yes
Suitable for cable tray system height 45 mm
Suitable for mesh cable tray no
Surface Bright, treated
Version for Straight connector

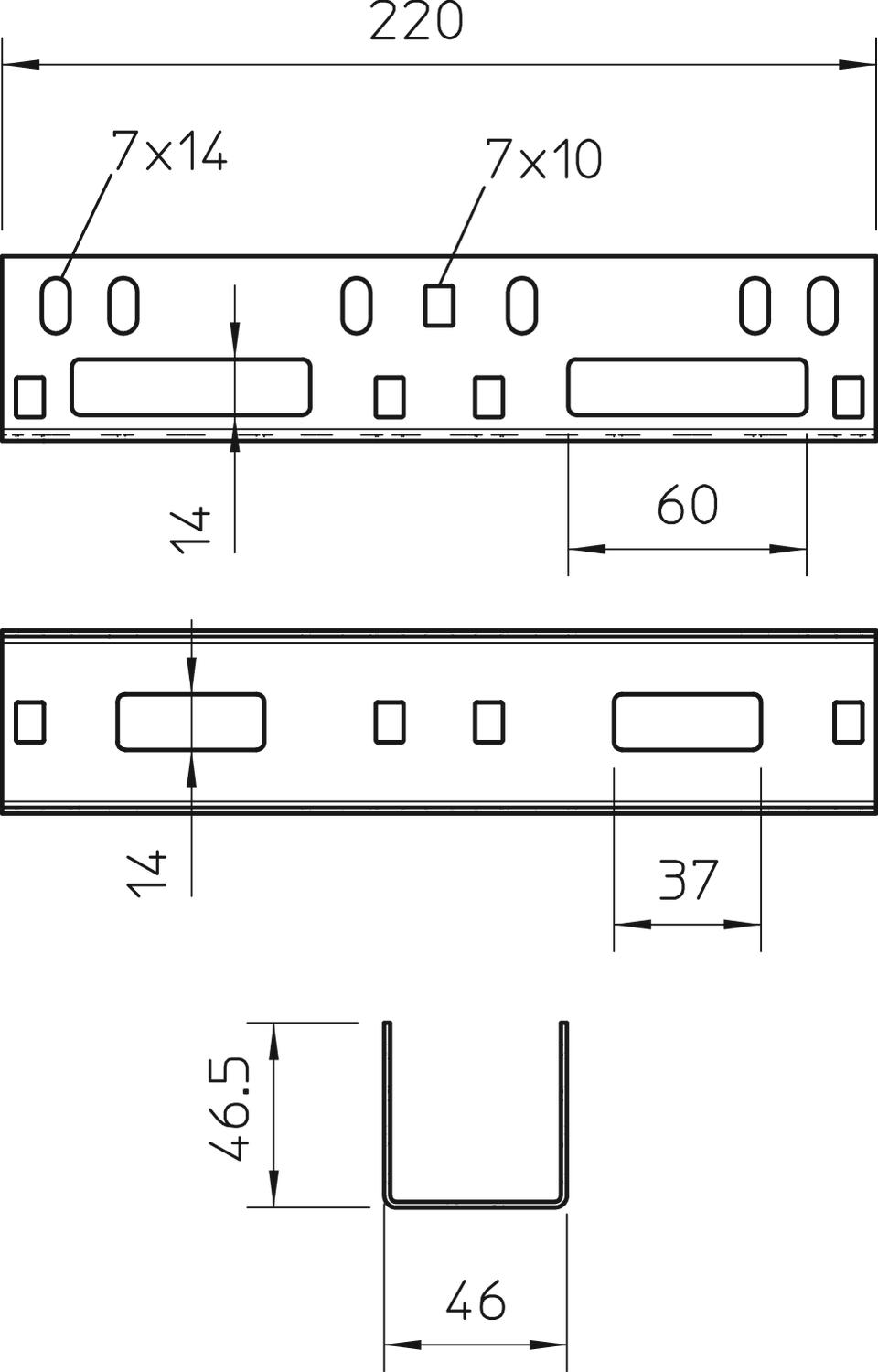

Dimensions

Height 45 mm
Width 45 mm
All types

All types

Types Width Height Plate thickness Item no. Quantity SSU
VF AZK 50 FS 45 mm 45 mm 1.5 mm 6066615
25 piece
VF AZK 50 A2 45 mm 45 mm 1.5 mm 6066629
25 piece
Downloads

Download

Download
Download

Declaration of conformity VF AZK 50 A2 / 6066629 , 0.13MB , pdf
Download
REACH Declaration of conformity VF AZK 50 A2 / 6066629 , 0.12MB , pdf
Download
RoHS Declaration of conformity VF AZK 50 A2 / 6066629 , 0.12MB , pdf
Download

Download

VF AZK 50 A2 / 6066629
