90° bend 110 FS
Item no. 6225124 | EAN 4012196443895
- Product description
-
Product description

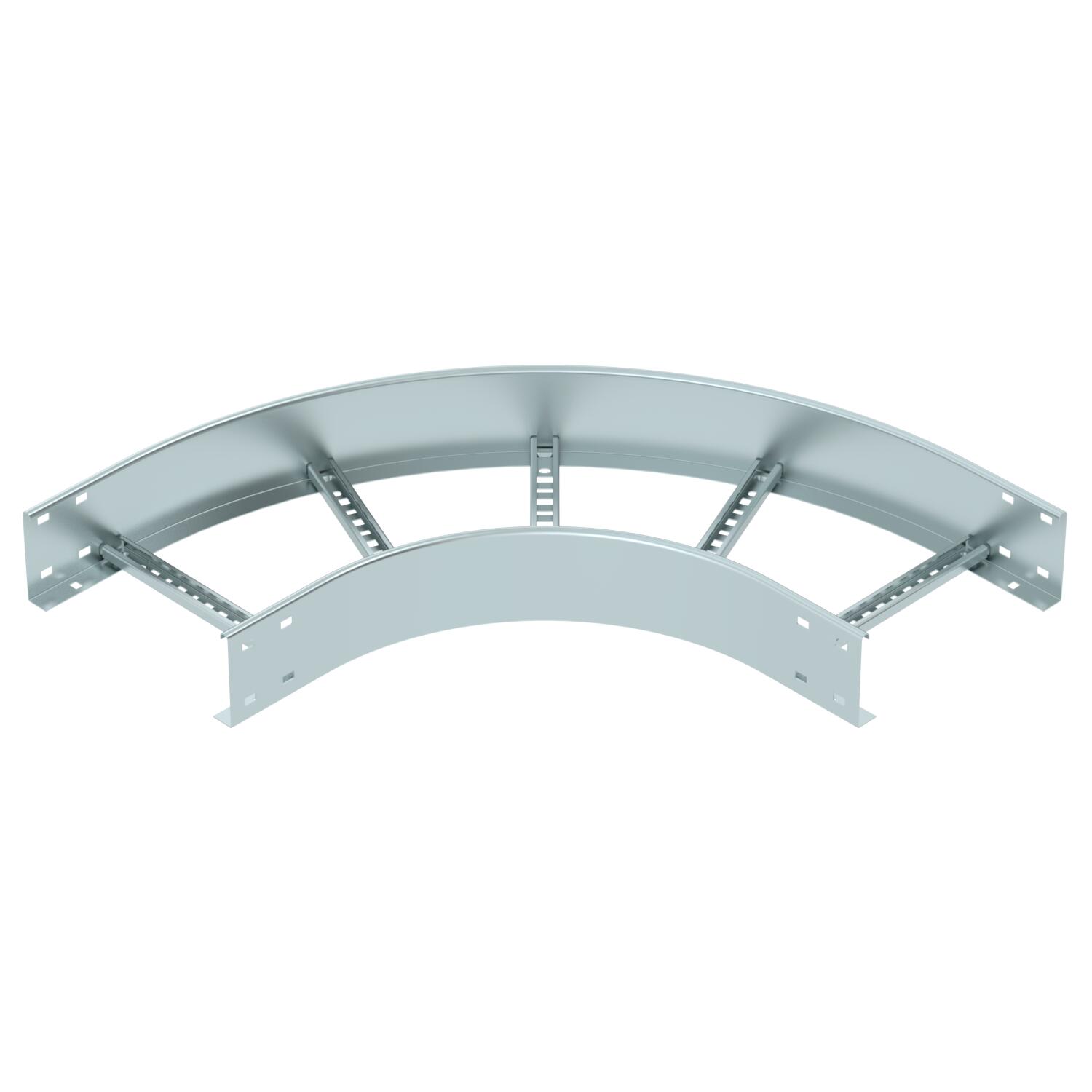

90° bend, horizontal, with welded rung for all cable ladder types of 110 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Without connectors Dimension 110x300 Hinged no Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile perforated Wide-span version no Dimensions

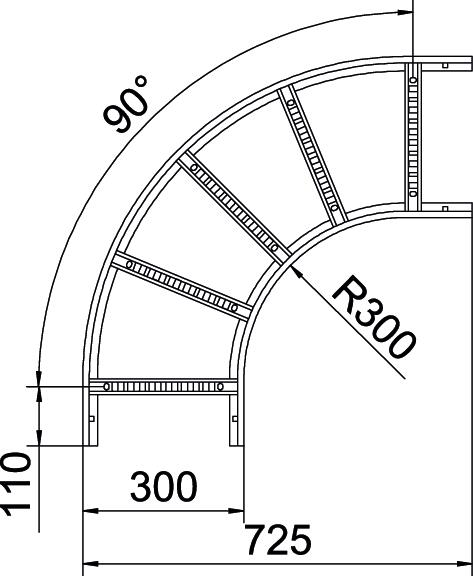

Dimension B 300 mm Dimension R 300 mm Height 110 mm Width 300 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FS
LVG 110 FS 6216545 10 piece - Downloads
-
