90° bend 110 FS 600 | 1.5
morepic-1 morepic-2 video-1

90° bend 110 FS

Item no. 6225130 | EAN 4012196443925

1.5 mm
Product description

Product description

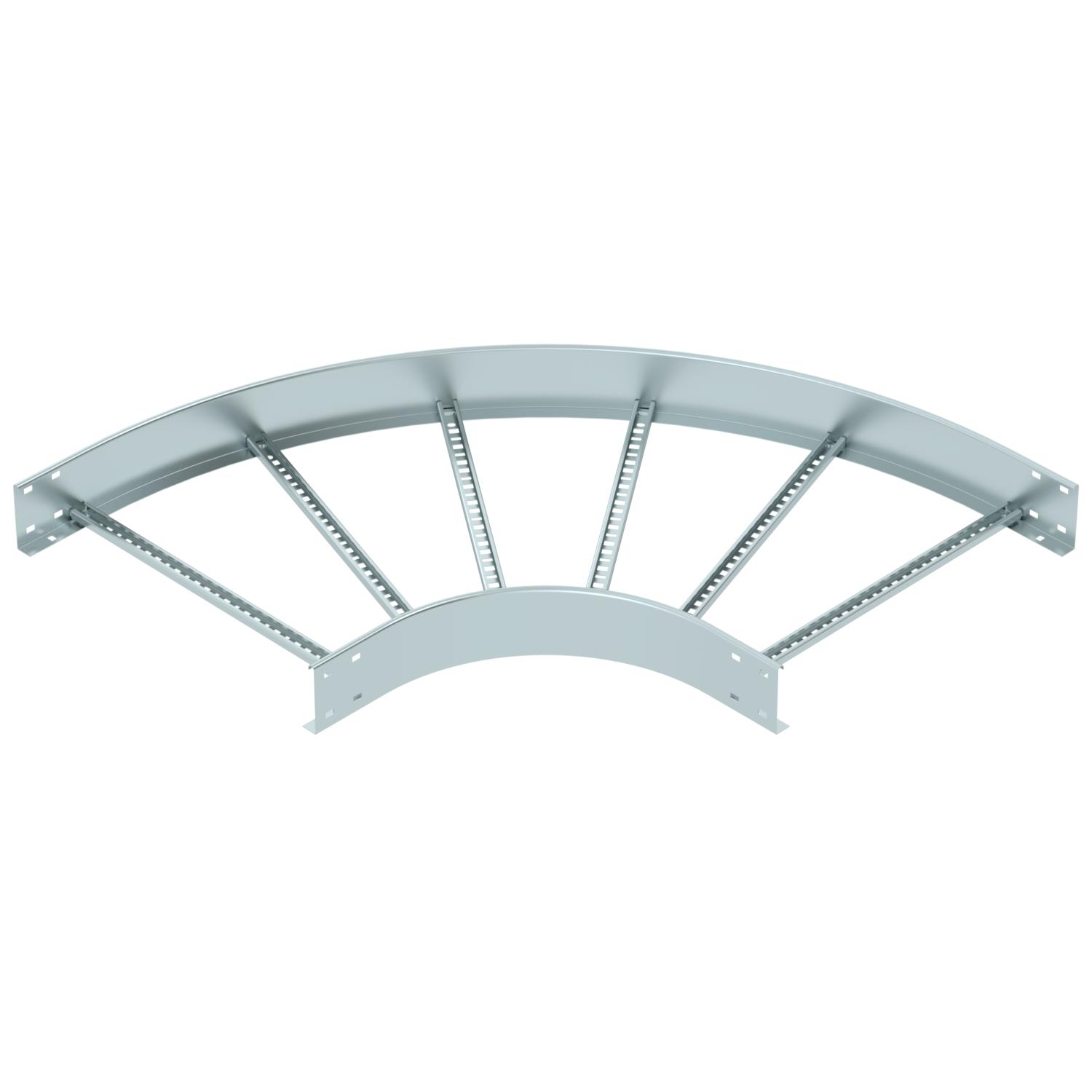

90° bend, horizontal, with welded rung for all cable ladder types of 110 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 110 mm
Technical data

Technical data

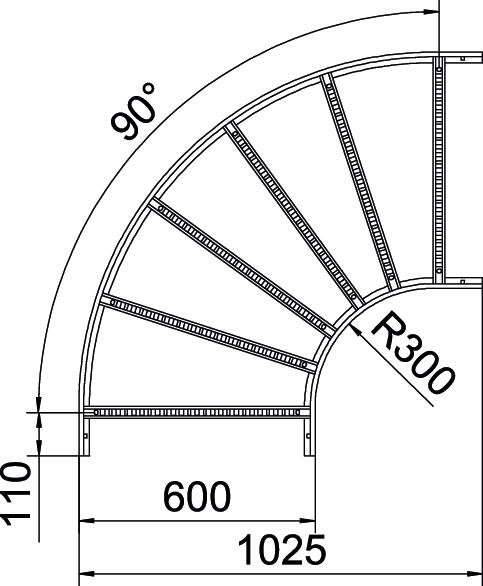

Bend (angle) 90°
Change of direction Horizontal
Connector version Without connectors
Dimension 110x600
Dimension B 600 mm
Dimension R 600 mm
Height 110 mm
Hinged no
Maintain electrical functions no
Material Steel
Rail thickness 1,5 mm
Rustproof steel, pickled no
Side perforation no
Side rail version Flat profile
Surface Strip galvanized
Version of the rungs Profile perforated
Wide-span version no
Width 600 mm
All types

All types

Types Width Rail thickness Item no. Quantity SSU
LB 90 1120 R3 FS 200 mm 1.5 mm 6225122
1 piece
LB 90 1130 R3 FS 300 mm 1.5 mm 6225124
1 piece
LB 90 1140 R3 FS 400 mm 1.5 mm 6225126
1 piece
LB 90 1150 R3 FS 500 mm 1.5 mm 6225128
1 piece
LB 90 1160 R3 FS 600 mm 1.5 mm 6225130
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Straight connector FS Straight connector FS LVG 110 FS 6216545
10 piece
Downloads

Download

Download
Download
Download

Download
UK Declaration of Conformity LB 90 1160 R3 FS / 6225130 , 0.09MB , pdf
Download
REACH Declaration of conformity LB 90 1160 R3 FS / 6225130 , 0.12MB , pdf
Download
RoHS Declaration of conformity LB 90 1160 R3 FS / 6225130 , 0.12MB , pdf
Download

Download
Download

LB 90 1160 R3 FS / 6225130
