- Product description
-
Product description

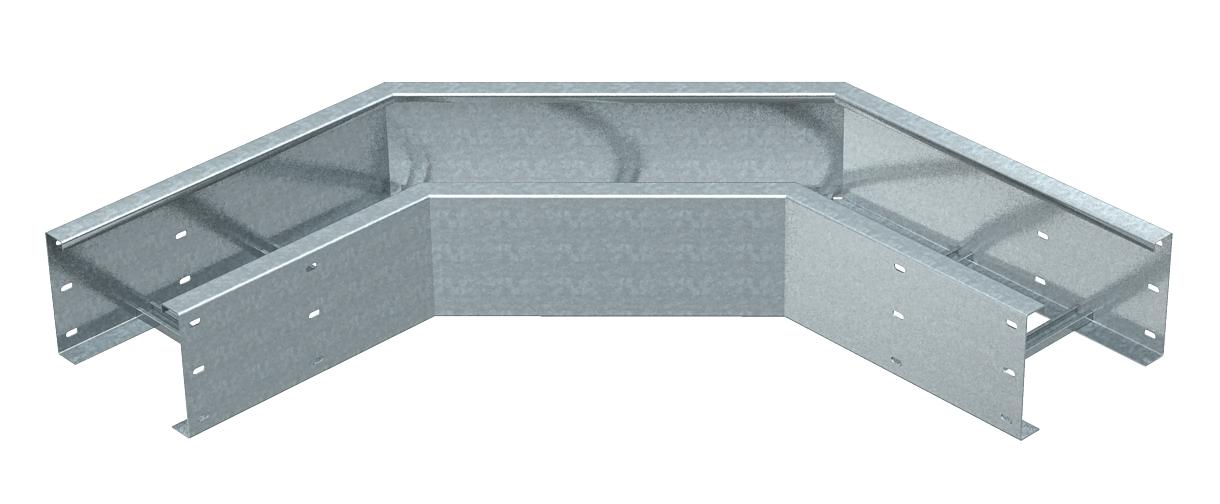

90° bend, horizontal, for all wide span cable ladders of 200 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Dimension 200x200 Maintain electrical functions no Material Steel Rail thickness 2,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile unperforated Wide-span version yes Dimensions

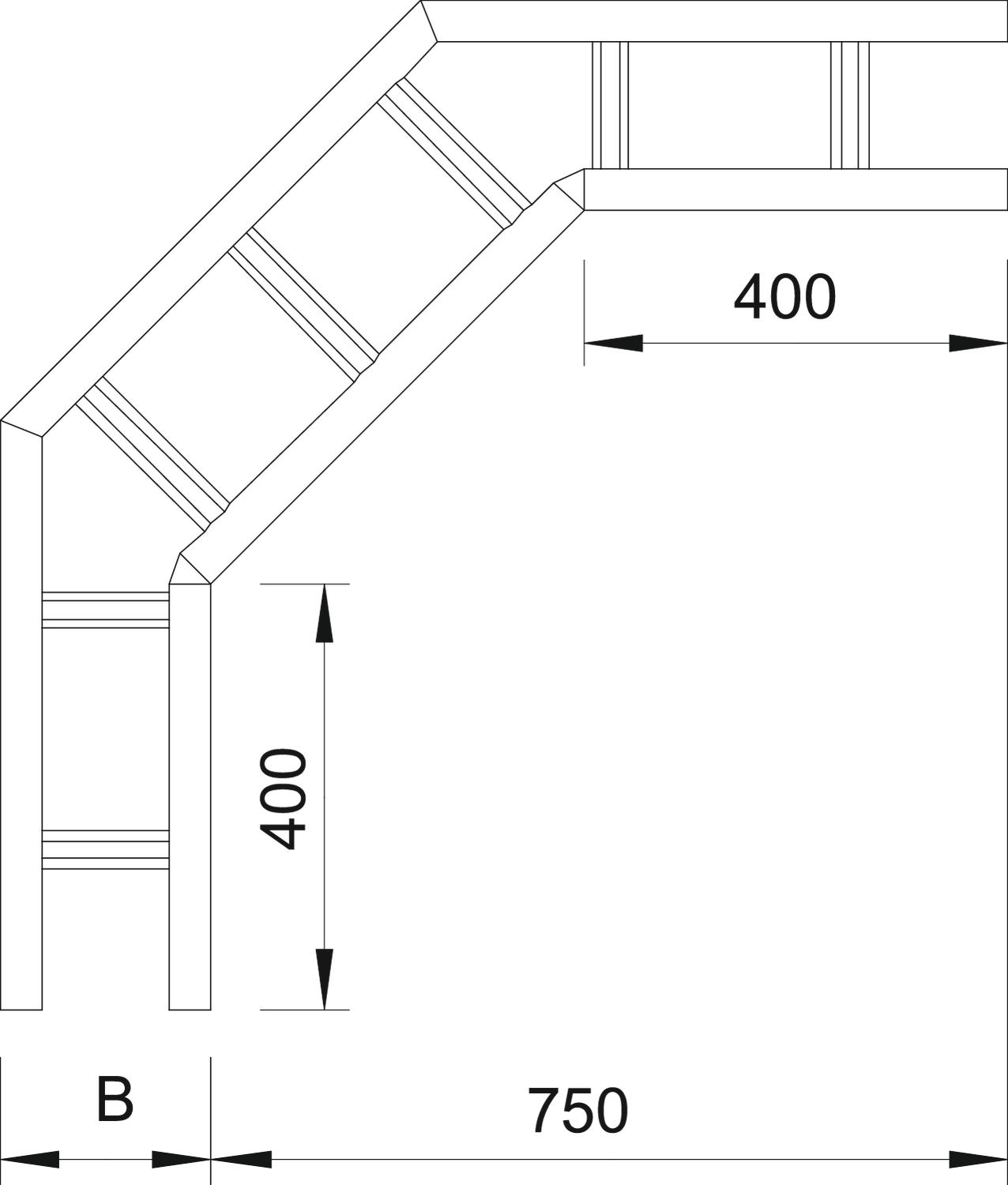

Dimension B 200 mm Dimension R 200 mm Height 200 mm Width 200 mm - All types
- Downloads
-
Data sheet WLB 90 2020 FT / 6233422 , 0.22MB , pdfDeclaration of conformity WLB 90 2020 FT / 6233422 , 0.16MB , pdf
