- Product description
-
Product description

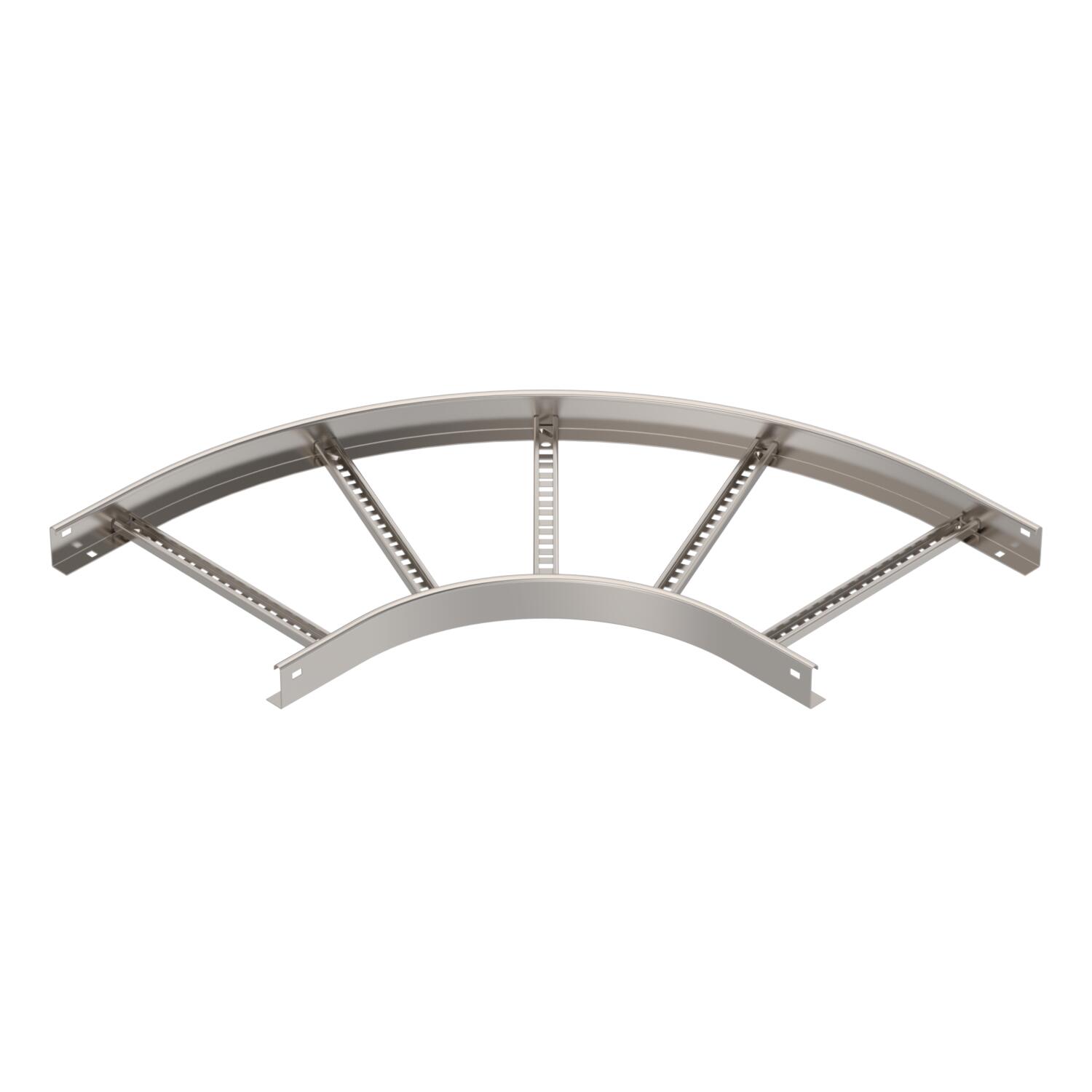

90° bend, horizontal, with welded rung for all cable ladder types of 60 mm side height.
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Without connectors Dimension 60x400 Hinged no Maintain electrical functions no Material Stainless steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Bright, treated Version of the rungs Profile perforated Wide-span version no Dimensions

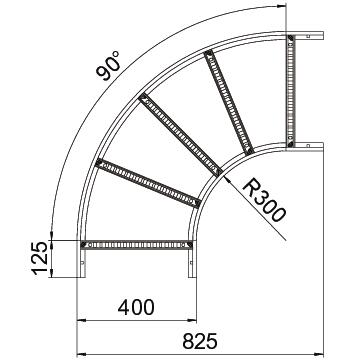

Dimension B 400 mm Dimension R 400 mm Height 60 mm Width 400 mm - All types
- Downloads
-
Data sheet LB 90 640 R3 A4 / 6225106 , 0.24MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LB 90 640 R3 A4 / 6225106 , 0.16MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf
