90° bend 60 A4

Item no. / Types

Width

Rail thickness	1.5 mm

Product description

Product description

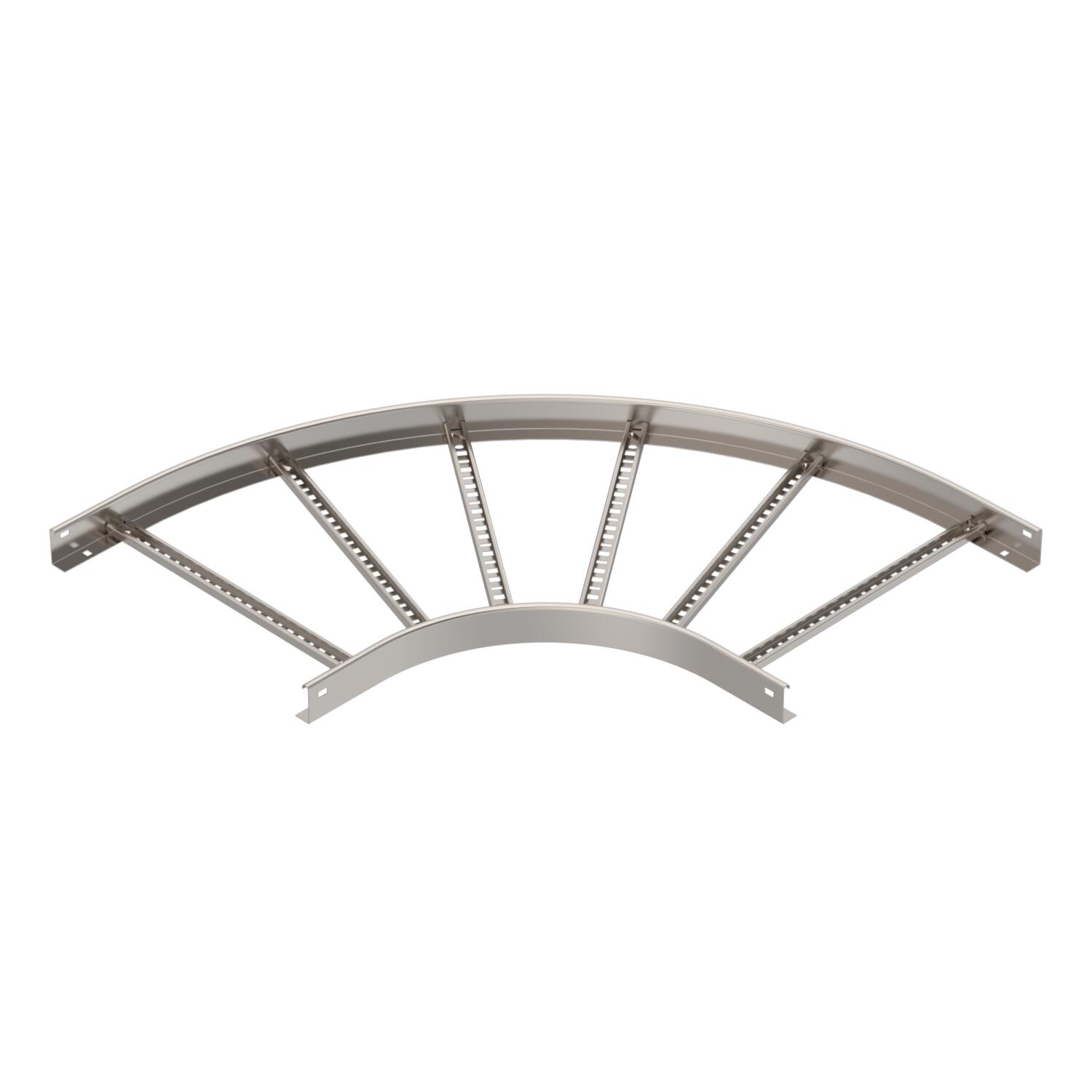

90° bend, horizontal, with welded rung for all cable ladder types of 60 mm side height.

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Connector version	Without connectors

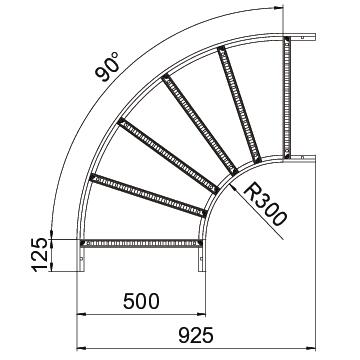

Dimension	60x500
Dimension B	500 mm
Dimension R	500 mm
Height	60 mm
Hinged	no
Maintain electrical functions	no

All types

All types

Types	Width	Rail thickness	Item no.	Quantity	SSU
LB 90 620 R3 A4	200 mm	1.5 mm	6225102	piece	1 piece
LB 90 630 R3 A4	300 mm	1.5 mm	6225104	piece	1 piece
LB 90 640 R3 A4	400 mm	1.5 mm	6225106	piece	1 piece
LB 90 650 R3 A4	500 mm	1.5 mm	6225108	piece	1 piece
LB 90 660 R3 A4	600 mm	1.5 mm	6225110	piece	1 piece
