- Product description
-
Product description

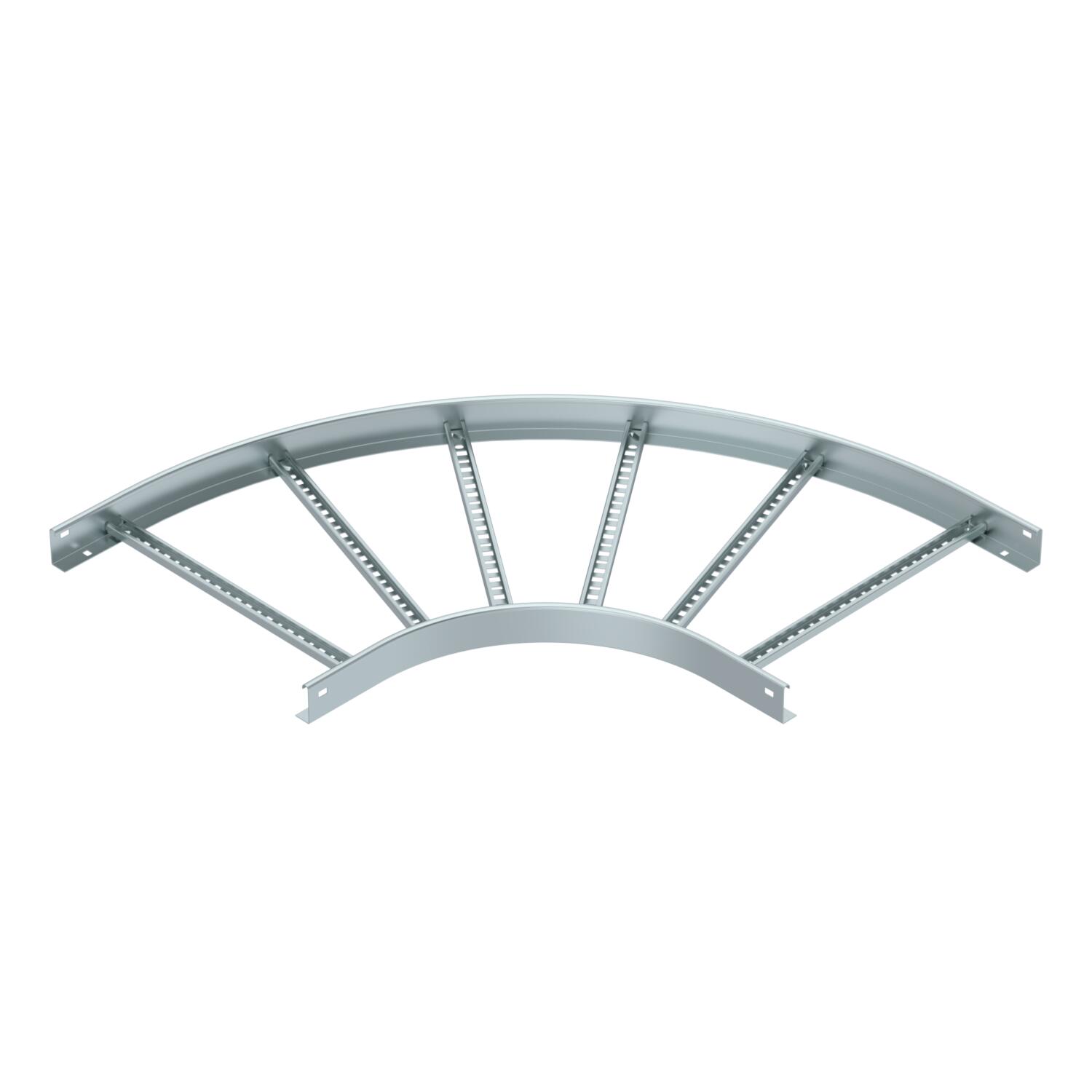

90° bend, horizontal, with welded rung for all cable ladder types of 60 mm side height.
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Without connectors Dimension 60x500 Hinged no Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile perforated Wide-span version no Dimensions

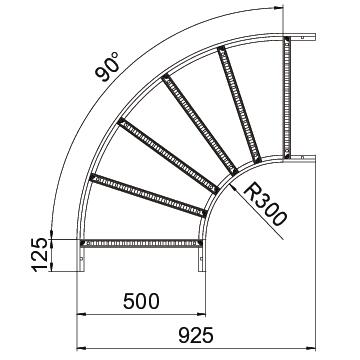

Dimension B 500 mm Dimension R 500 mm Height 60 mm Width 500 mm - All types
- Downloads
-
Data sheet LB 90 650 R3 FS / 6225048 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LB 90 650 R3 FS / 6225048 , 0.16MB , pdfREACH Declaration of conformity LB 90 650 R3 FS / 6225048 , 0.12MB , pdfRoHS Declaration of conformity LB 90 650 R3 FS / 6225048 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf
