90° bend 60 FT

Item no. 6225070 | EAN 4012196443697

1.5 mm
Product description

Product description

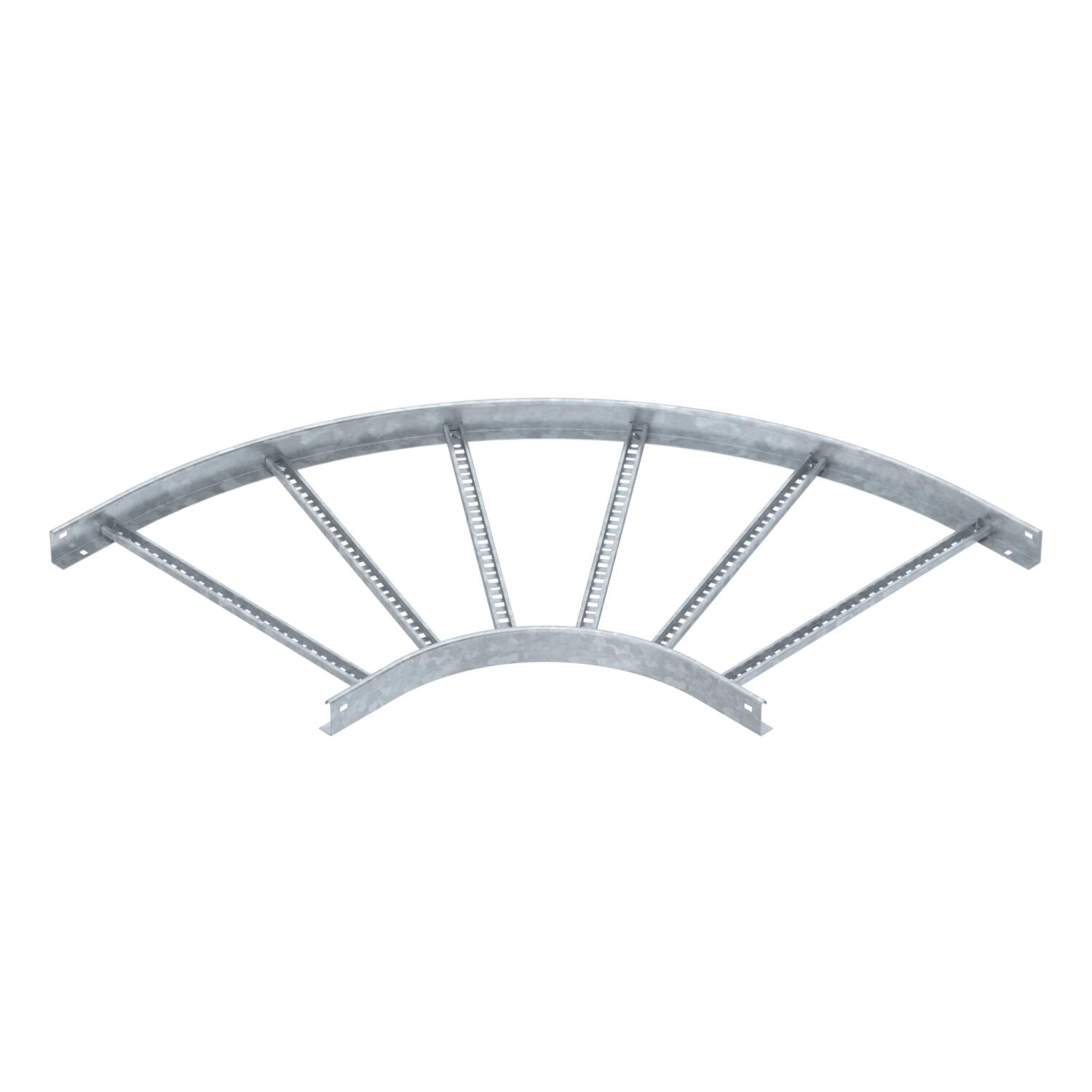

90° bend, horizontal, with welded rung for all cable ladder types of 60 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 60 mm
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
Connector version Without connectors
Dimension 60x600
Dimension B 600 mm
Dimension R 600 mm
Height 60 mm
Hinged no
Maintain electrical functions no
Material Steel
Rail thickness 1,5 mm
Rustproof steel, pickled no
Side perforation no
Side rail version Flat profile
Surface Hot-dip galvanised
Version of the rungs Profile perforated
Wide-span version no
Width 600 mm
All types

All types

Types Width Rail thickness Item no. Quantity SSU
LB 90 620 R3 FT 200 mm 1.5 mm 6225062
1 piece
LB 90 630 R3 FT 300 mm 1.5 mm 6225064
1 piece
LB 90 640 R3 FT 400 mm 1.5 mm 6225066
1 piece
LB 90 650 R3 FT 500 mm 1.5 mm 6225068
1 piece
LB 90 660 R3 FT 600 mm 1.5 mm 6225070
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Straight connector FT Straight connector FT LVG 60 FT 6208843
10 piece
