90° elbow socket, PG thread

Item no. 2029928 | EAN 4012195445456

Item no. / Types

Thread dimension, PG, internal

Thread dimension, PG, external

Product description

Product description

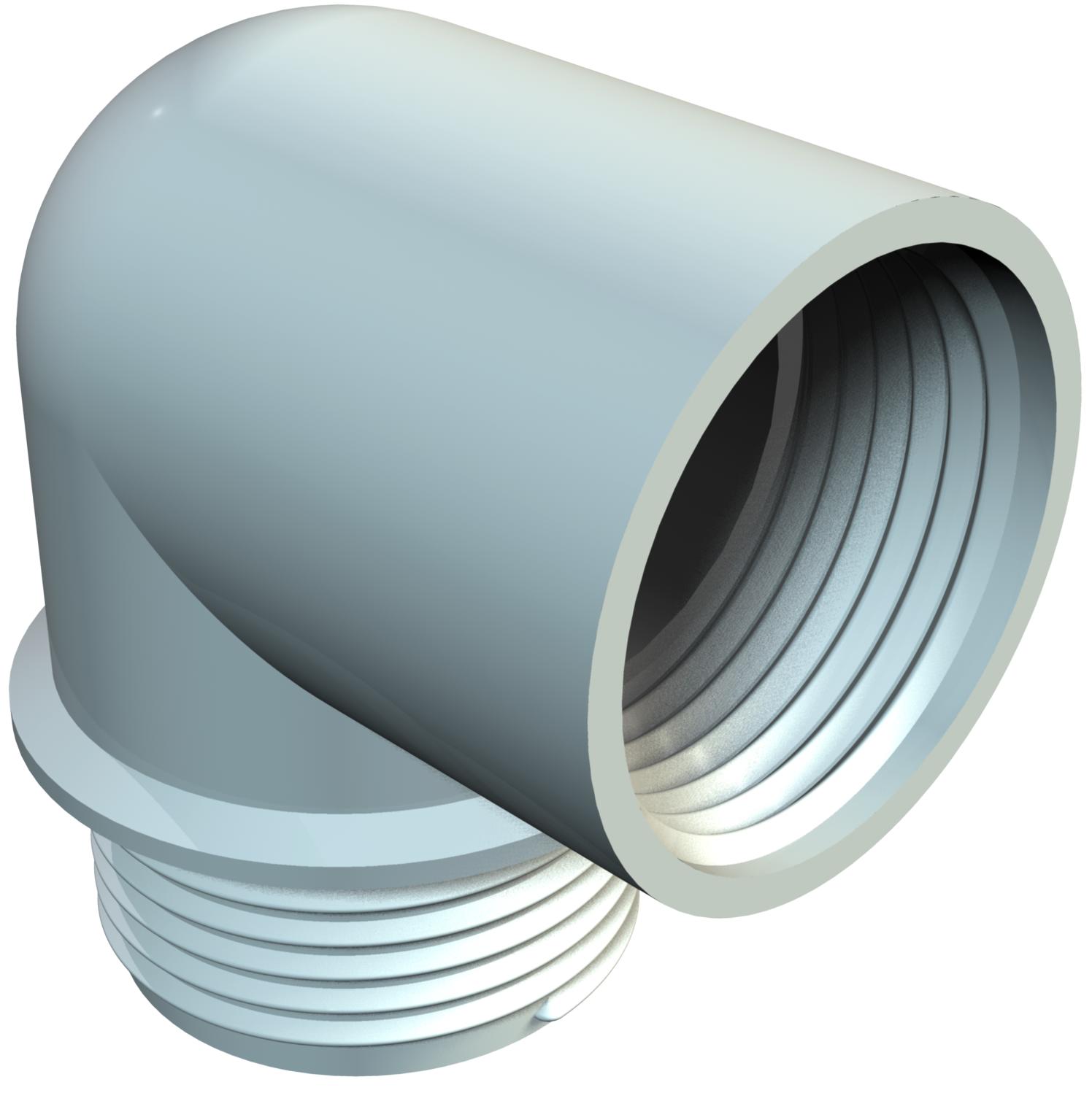

Elbow socket with PG internal and external thread to DIN 40430.

The elbow socket can be turned into an angular gland with two steel pressure rings 107/D, a sealing ring 107/A or 107/B and a pressure screw 107/E.

Technical data

Technical data

Colour	Light grey

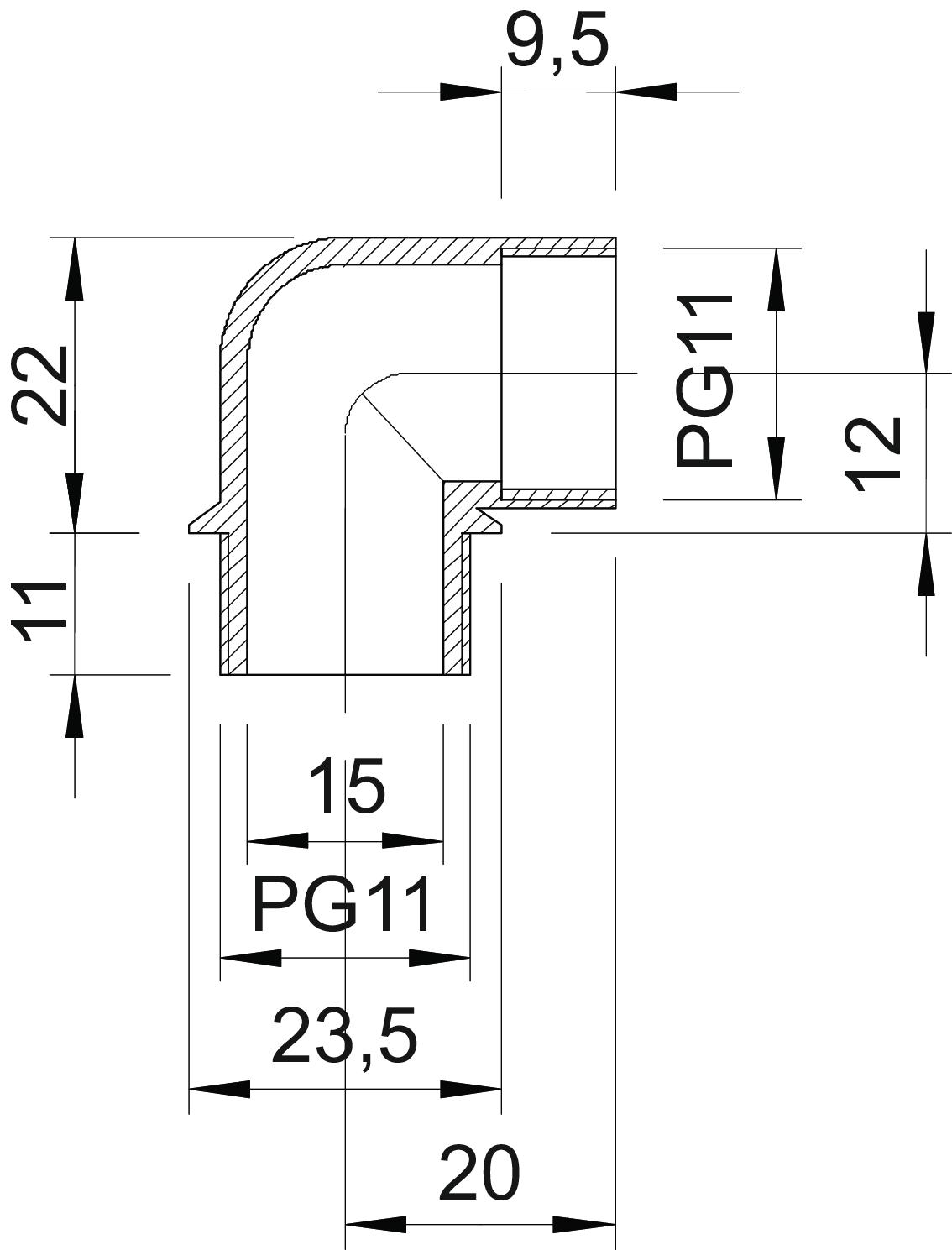

Dimension	PG11
Dimension A	20 mm
Dimension B	12 mm
Dimension D1	23,5 mm
Dimension D2	15 mm
Dimension L1	11 mm
Dimension L2	9,5 mm
Dimension L3	22 mm

Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Material	Polyamide
Permitted temperature range, max.	65 °C
Permitted temperature range, min.	-20 °C
Thread	Pg 11
Thread dimension, PG, external	11
Thread dimension, PG, internal	11
Type	with thread

All types

All types

Types	Thread dimension, PG, internal	Thread dimension, PG, external	Item no.	Quantity	SSU
107 W PG 9 PA	9	9	2029901	piece	10 piece
107 W PG11 PA	11	11	2029928	piece	10 piece
107 W PG13.5 PA	13.5	13.5	2029936	piece	10 piece
107 W PG16 PA	16	16	2029944	piece	10 piece
107 W PG21 PA	21	21	2029952	piece	10 piece
