90° elbow socket, PG thread

Item no. 2029944 | EAN 4012195445579

Product description

Product description

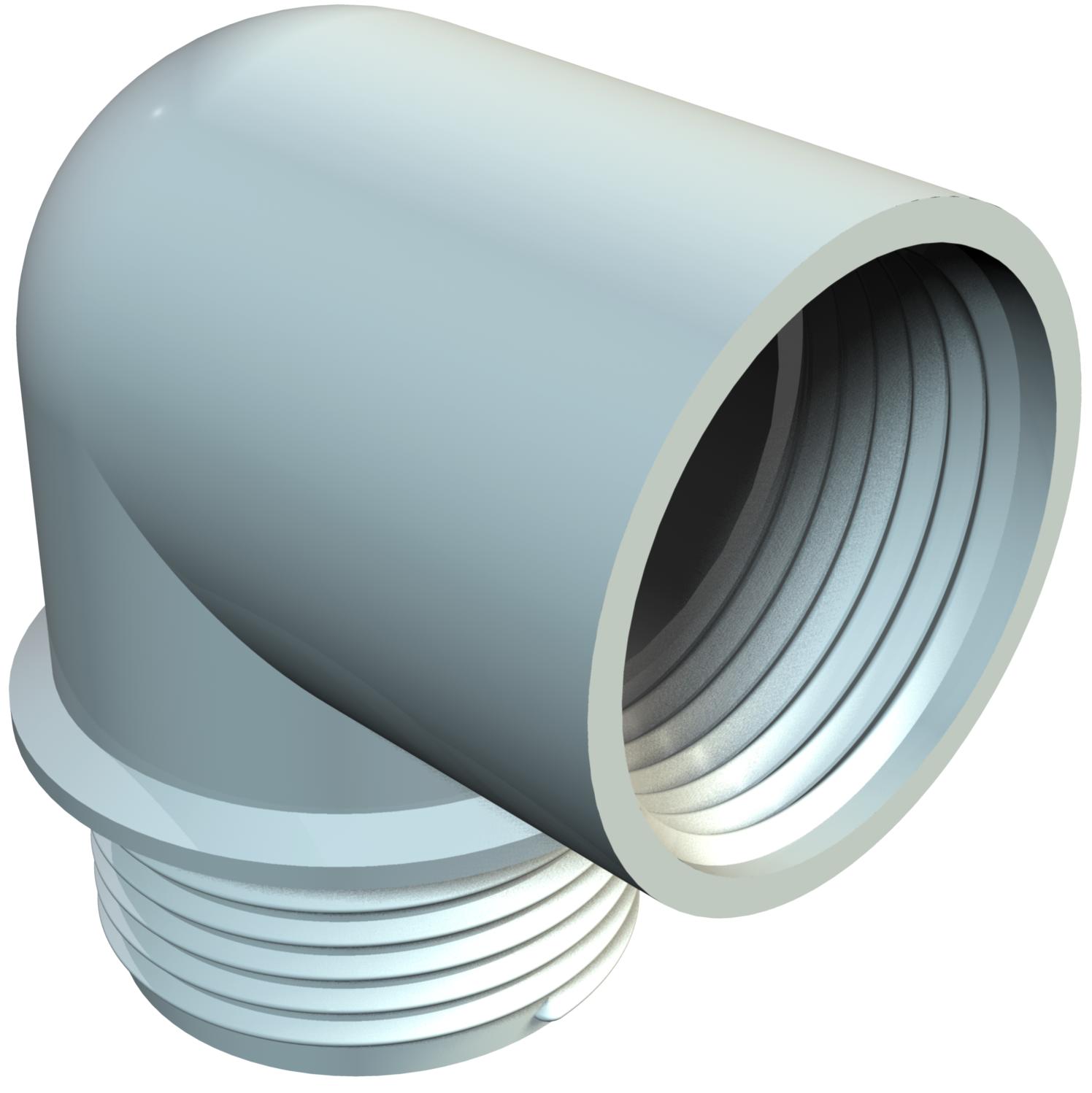

Elbow socket with PG internal and external thread to DIN 40430.

The elbow socket can be turned into an angular gland with two steel pressure rings 107/D, a sealing ring 107/A or 107/B and a pressure screw 107/E.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

Colour Light grey
Dimension PG16

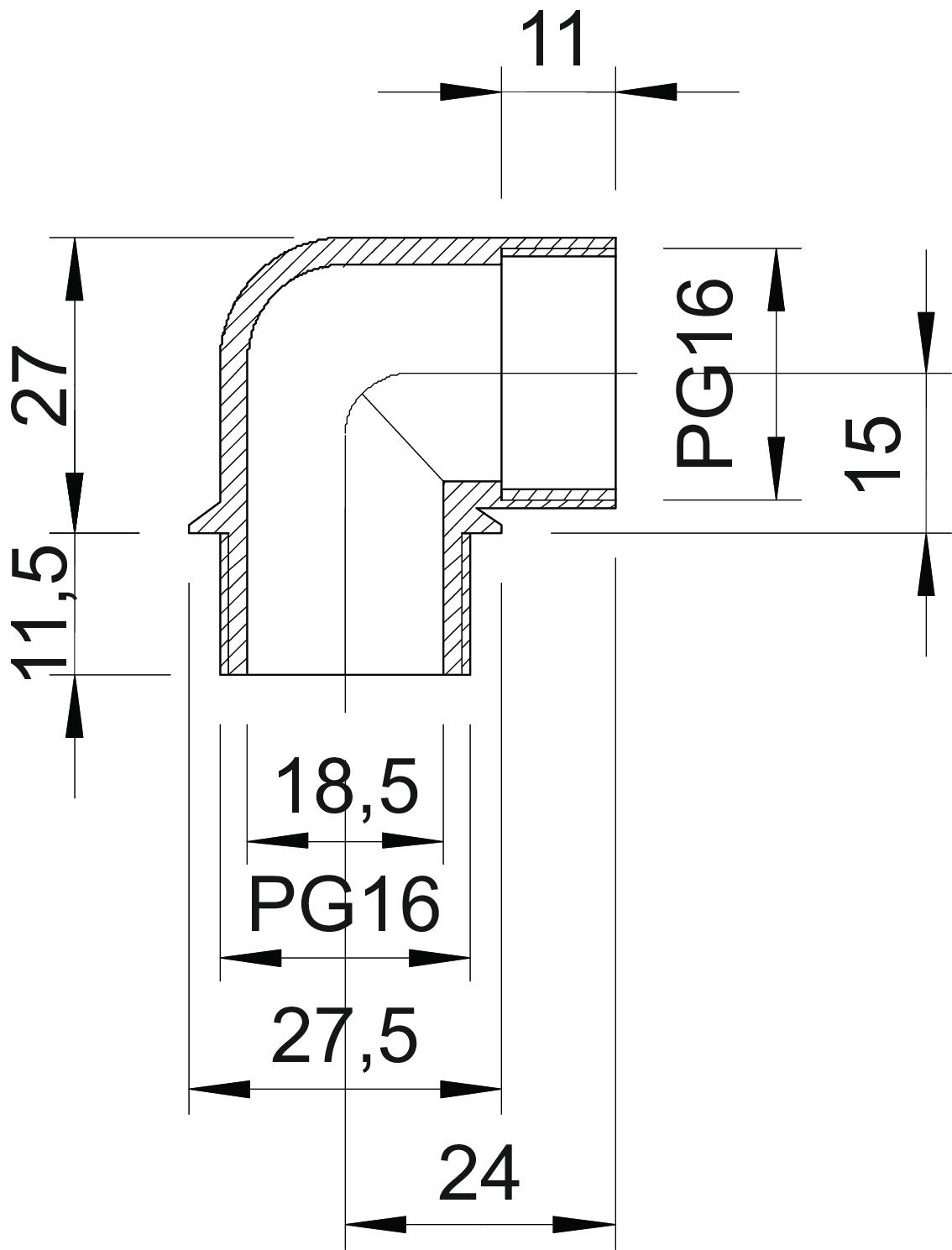

Dimension A 24 mm
Dimension B 15 mm
Dimension D1 27,5 mm
Dimension D2 18,5 mm
Dimension L1 11,5 mm
Dimension L2 11 mm
Dimension L3 27 mm
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Material Polyamide
Permitted temperature range, max. 65 °C
Permitted temperature range, min. -20 °C
Thread Pg 16
Thread dimension, PG, external 16
Thread dimension, PG, internal 16
Type with thread
All types

All types

Types Thread dimension, PG, internal Thread dimension, PG, external Item no. Quantity SSU
107 W PG 9 PA 9 9 2029901
10 piece
107 W PG11 PA 11 11 2029928
10 piece
107 W PG13.5 PA 13.5 13.5 2029936
10 piece
107 W PG16 PA 16 16 2029944
10 piece
107 W PG21 PA 21 21 2029952
10 piece
Downloads

Download

107 W PG16 PA / 2029944
Download
