- Product description
-
Product description

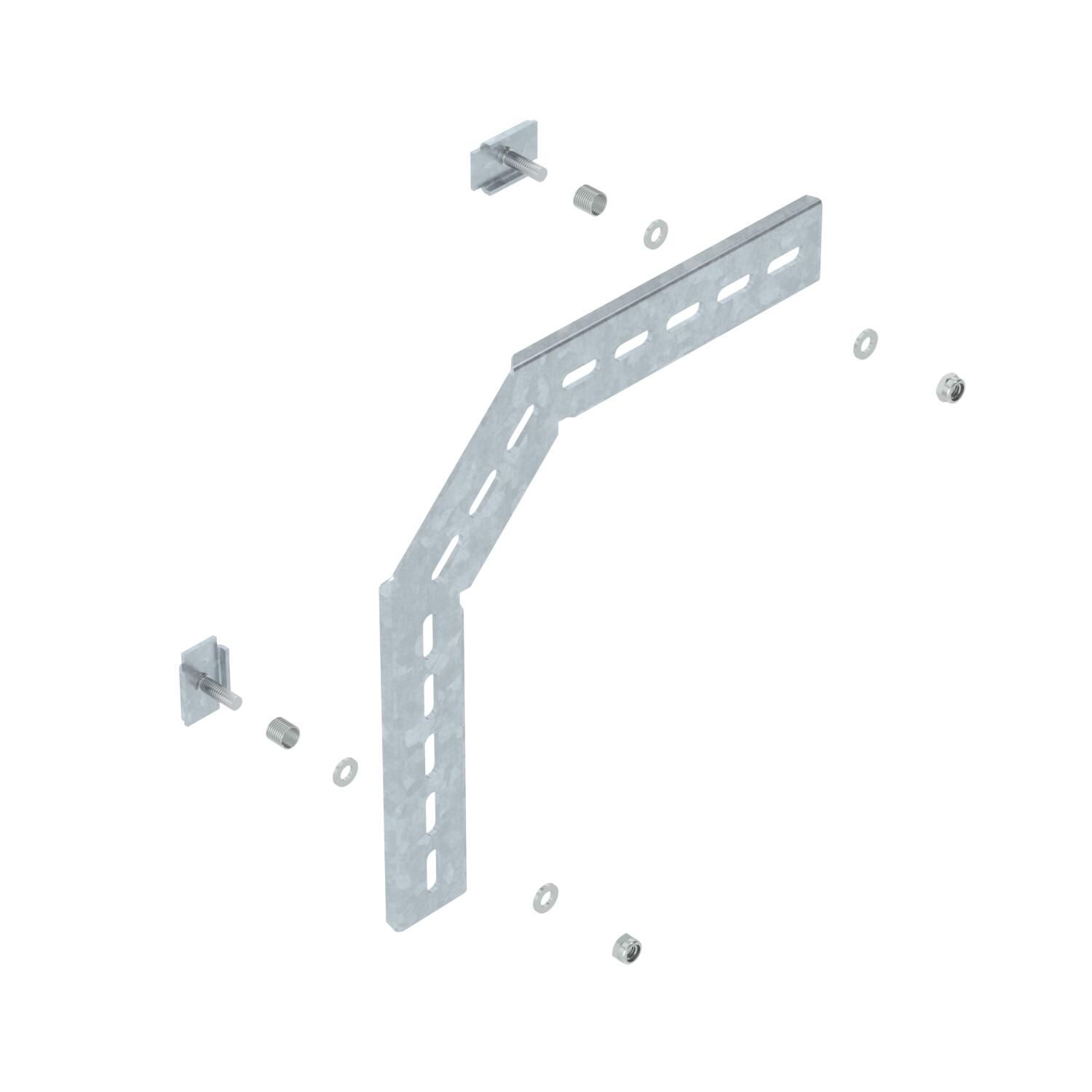

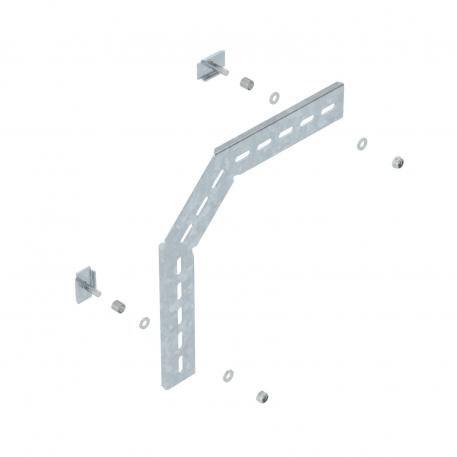

90° installation profile, vertical, for C mesh cable tray and GR-Magic® mesh cable tray with a side height of 55 mm.
- Technical data
-
Technical data

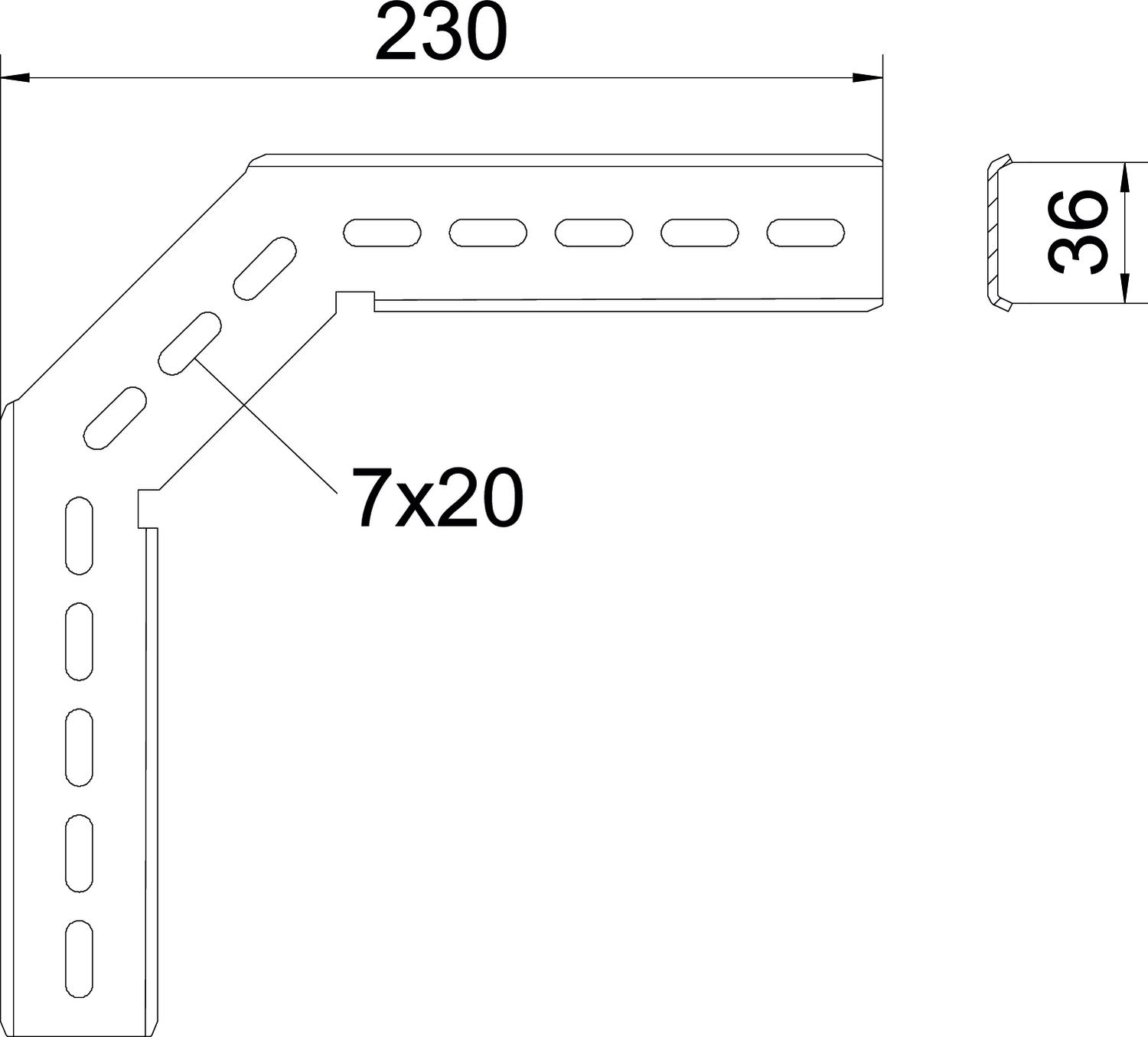

Dimension 230x230 Dimension 230 x 230 Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised - All types
- Downloads
-
Data sheet MW 90 SL23 FT / 6017355 , 0.16MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity MW 90 SL23 FT / 6017355 , 0.11MB , pdfREACH Declaration of conformity MW 90 SL23 FT / 6017355 , 0.12MB , pdfRoHS Declaration of conformity MW 90 SL23 FT / 6017355 , 0.13MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
