90° Quick pipe bend, light grey
morepic-1 morepic-2

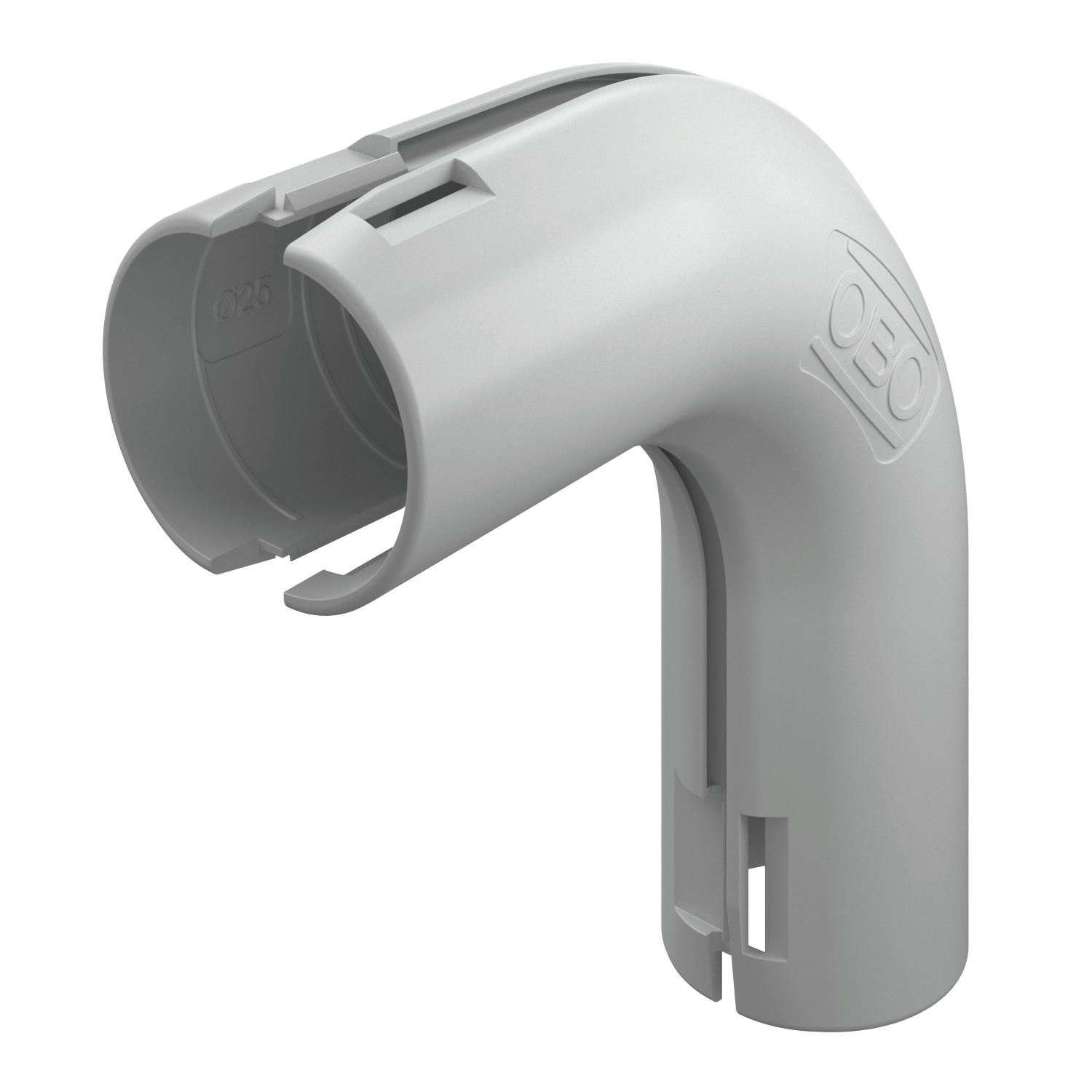

90° Quick pipe bend, light grey

Item no. 2154056 | EAN 4012196869794

Product description
Product description
Fitting for plastic electrical installation pipes to create 90° bends. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 44
  • Thread metric
Technical data

Technical data

Angle of the bend 90 °
Brushed surface no
Colour Light grey; RAL 7035

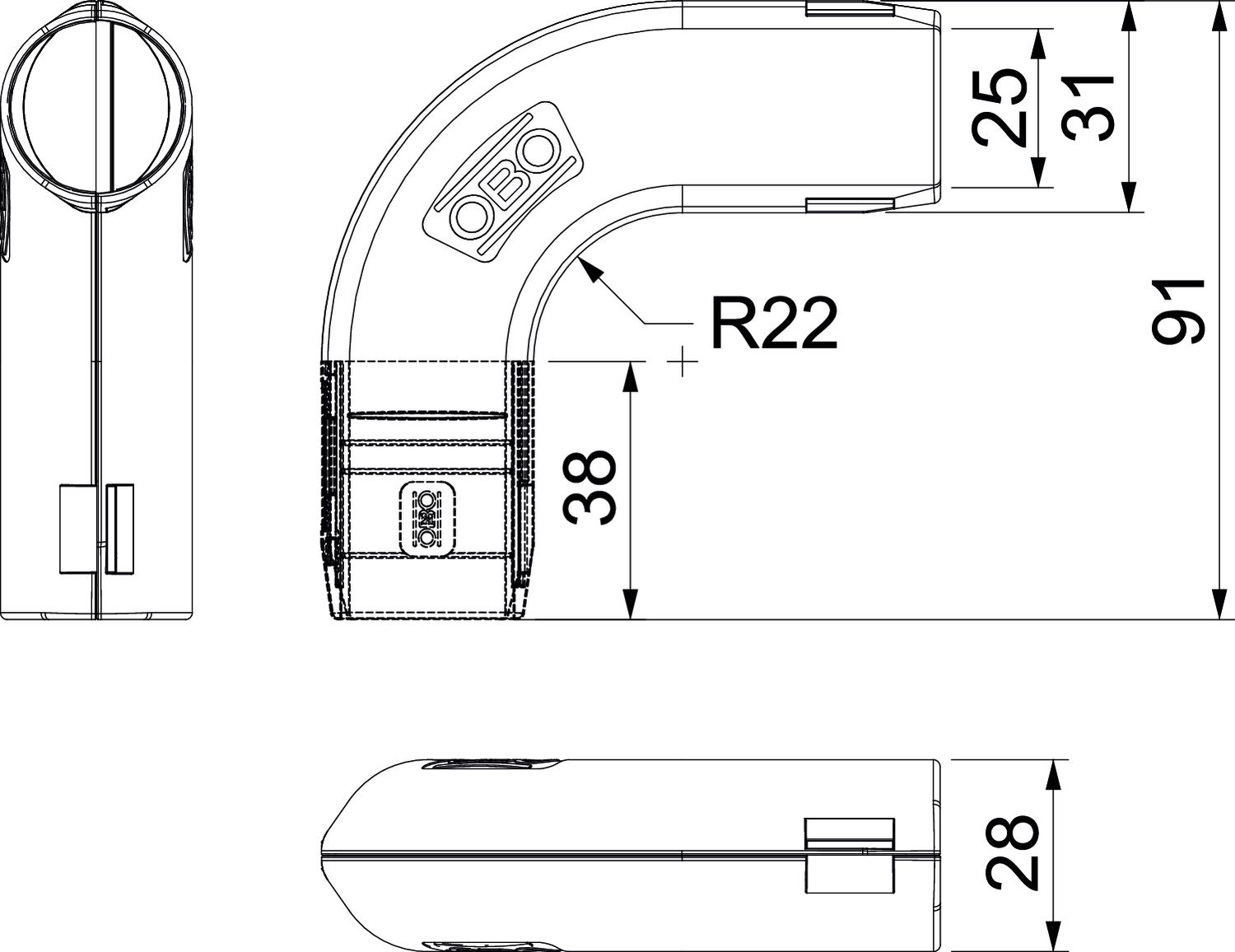

Dimension M25
Dimension B 31,2 mm
Dimension d 25 mm
Dimension L 91 mm
Dimension L1 38 mm
Dimension R 22 mm
Flexible no
Halogen-free yes
Material Polypropylene
Permitted temperature range, max. 60 °C
Polished surface no
Two-part yes
Version for Connector
With inspection opening and lid no
With sleeve no
All types

All types

Types Size Item no. Quantity SSU
3000 BMS M16 LGR 2154052
10 piece
3000 BMS M20 LGR 2154054
5 piece
3000 BMS M25 LGR 2154056
5 piece
3000 BMS M32 LGR 2154058
5 piece
Downloads

Download

Download
Download

REACH Declaration of conformity 3000 BMS M25 LGR / 2154056 , 0.12MB , pdf
Download
RoHS Declaration of conformity 3000 BMS M25 LGR / 2154056 , 0.13MB , pdf
