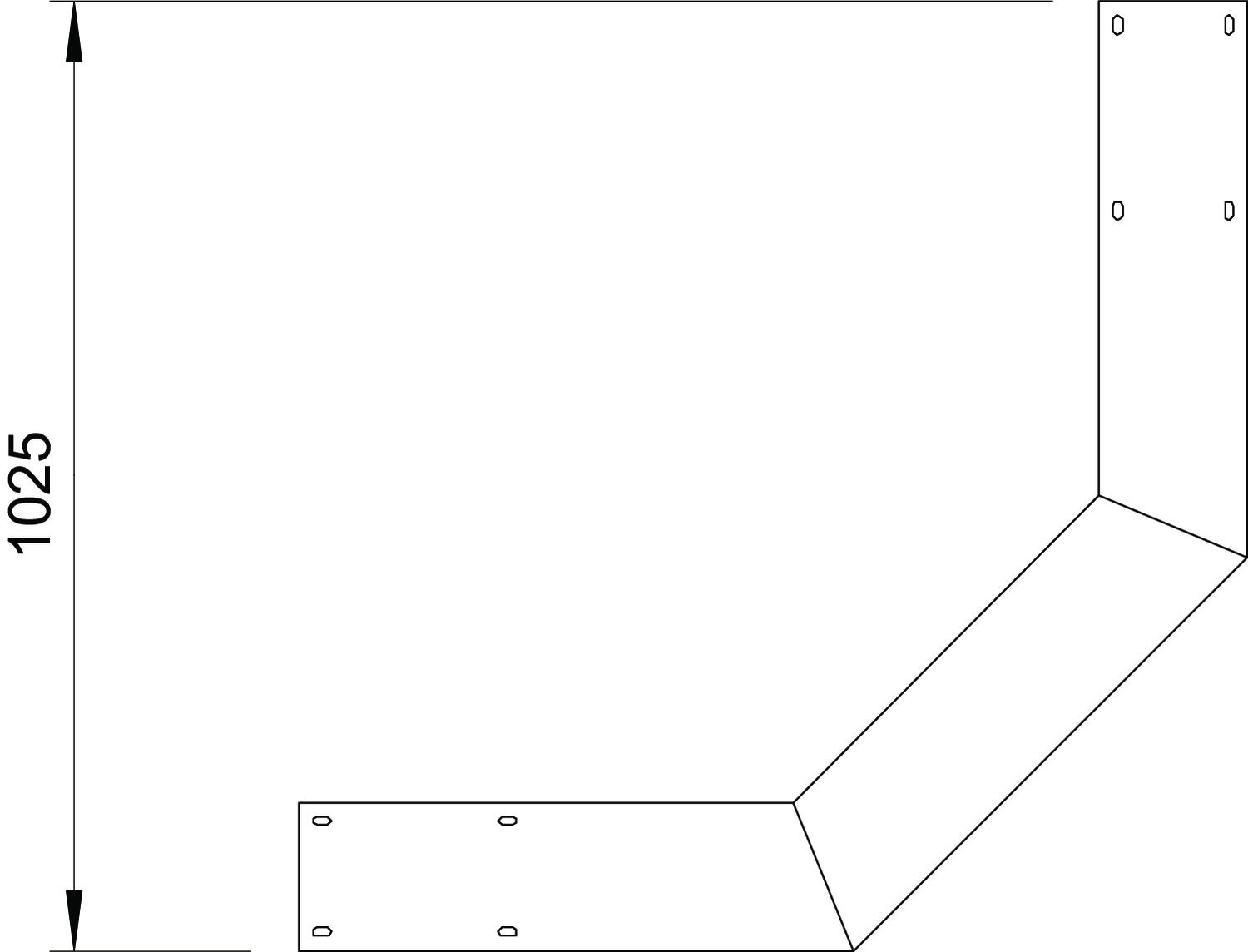

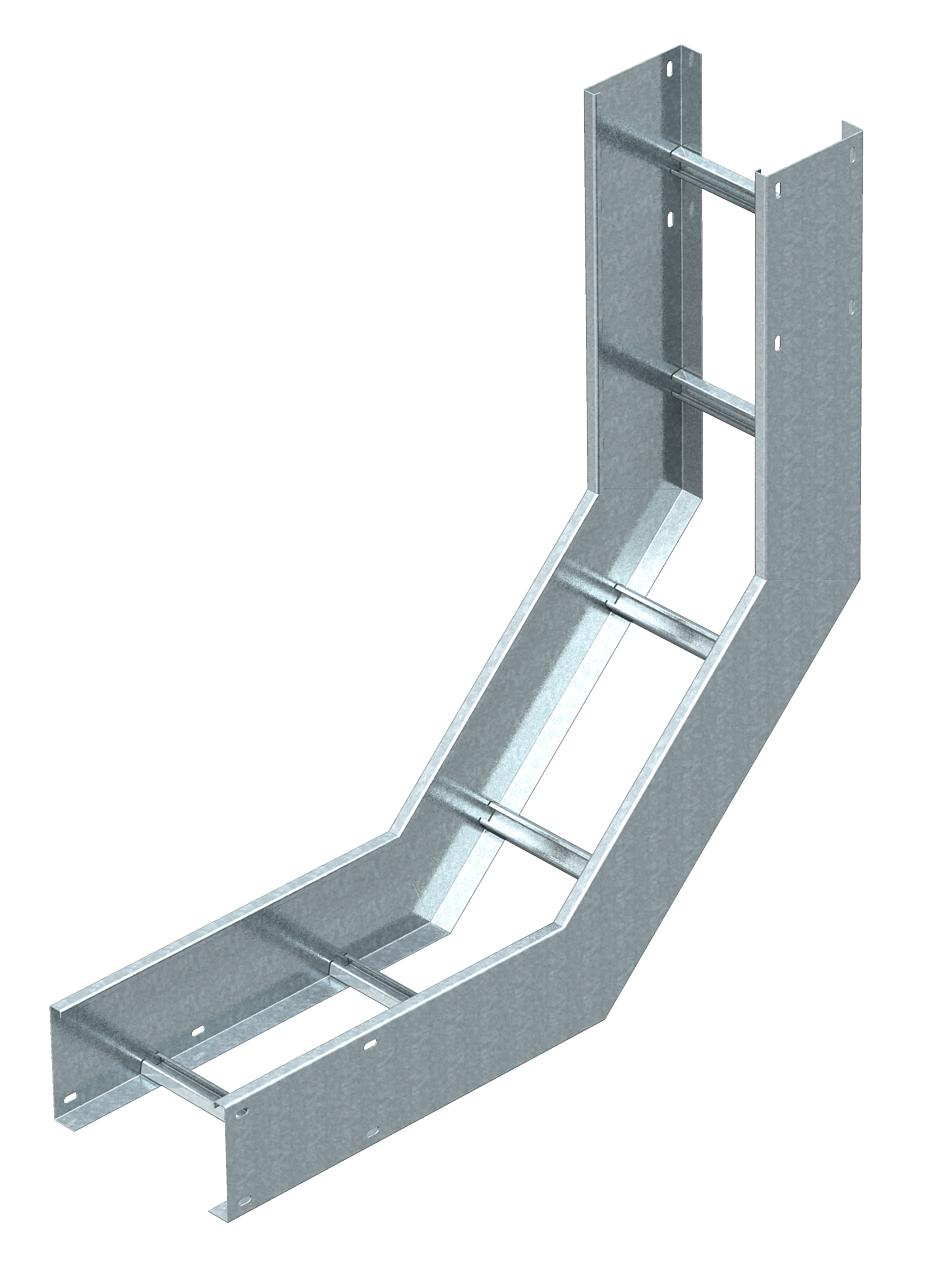

90° vertical bend, rising, 160 FT

Item no. 6230423 | EAN 4012196173891

2 mm
Product description
Product description
90° vertical bend, for all wide span cable ladders of 160 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wide span cable ladder, side height 160 mm
Technical data

Technical data

Bend (angle) 90°
Change of direction Vertical rising
Colour zinc
Dimension 160x200
Dimension B 200 mm
Dimension R 200 mm
Height 160 mm
Maintain electrical functions no
Material Steel
Rail thickness 2 mm
Rustproof steel, pickled no
Side perforation no
Side rail version Flat profile
Surface Hot-dip galvanised
Version of the rungs Profile unperforated
Wide-span version yes
Width 200 mm
All types

All types

Types Width Rail thickness Item no. Quantity SSU
WLBS 90 162 FT 200 mm 2 mm 6230423
1 piece
WLBS 90 163 FT 300 mm 2 mm 6230431
1 piece
WLBS 90 164 FT 400 mm 2 mm 6230458
1 piece
WLBS 90 165 FT 500 mm 2 mm 6230466
1 piece
WLBS 90 166 FT 600 mm 2 mm 6230474
1 piece
