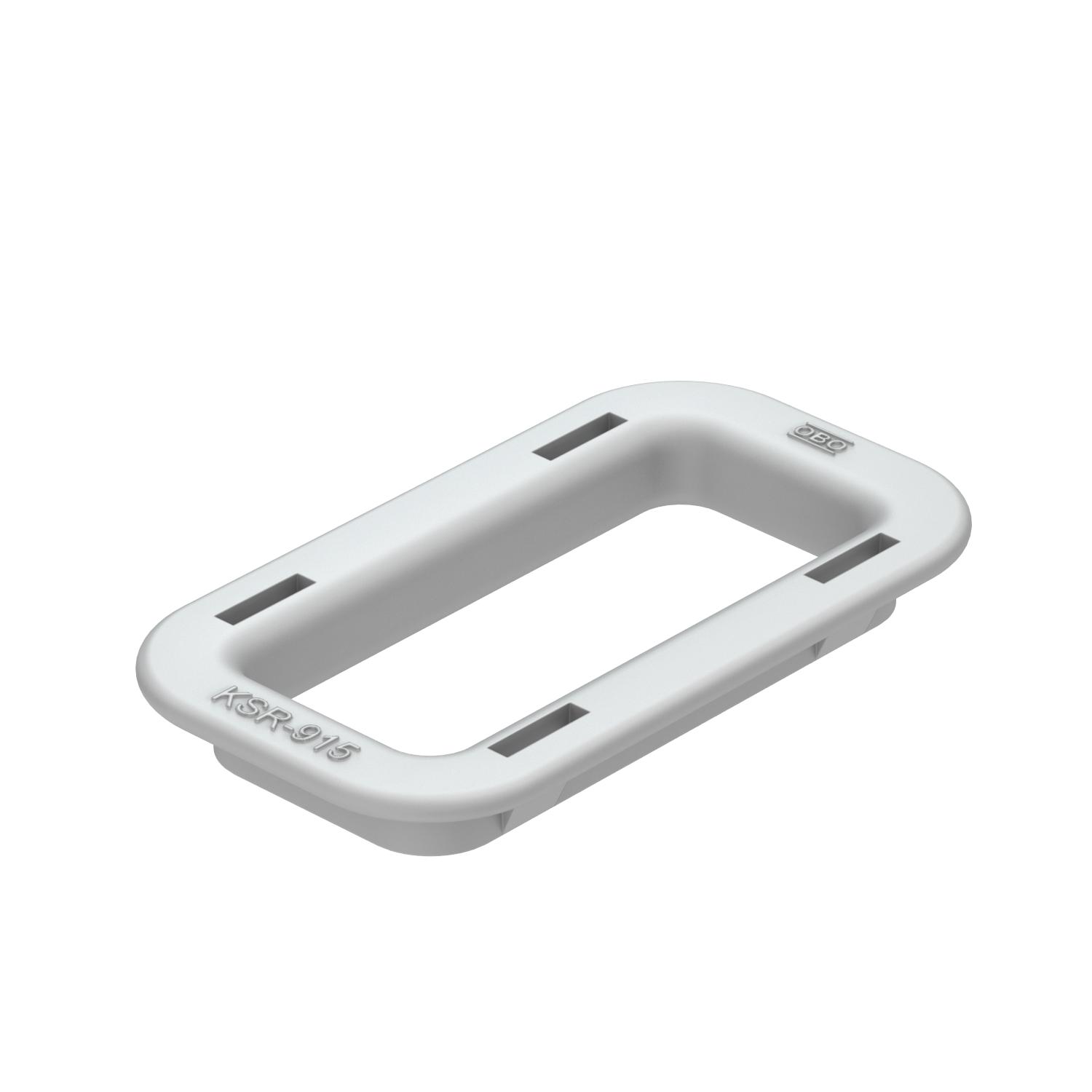

915 PE cable protection ring
Item no. 6066704 | EAN 4012196065110
- Product description
-
Product description
Cable protection ring for bottom perforations in AZ small ducts and luminaire support channels.
-
- Technical data
-
Technical data

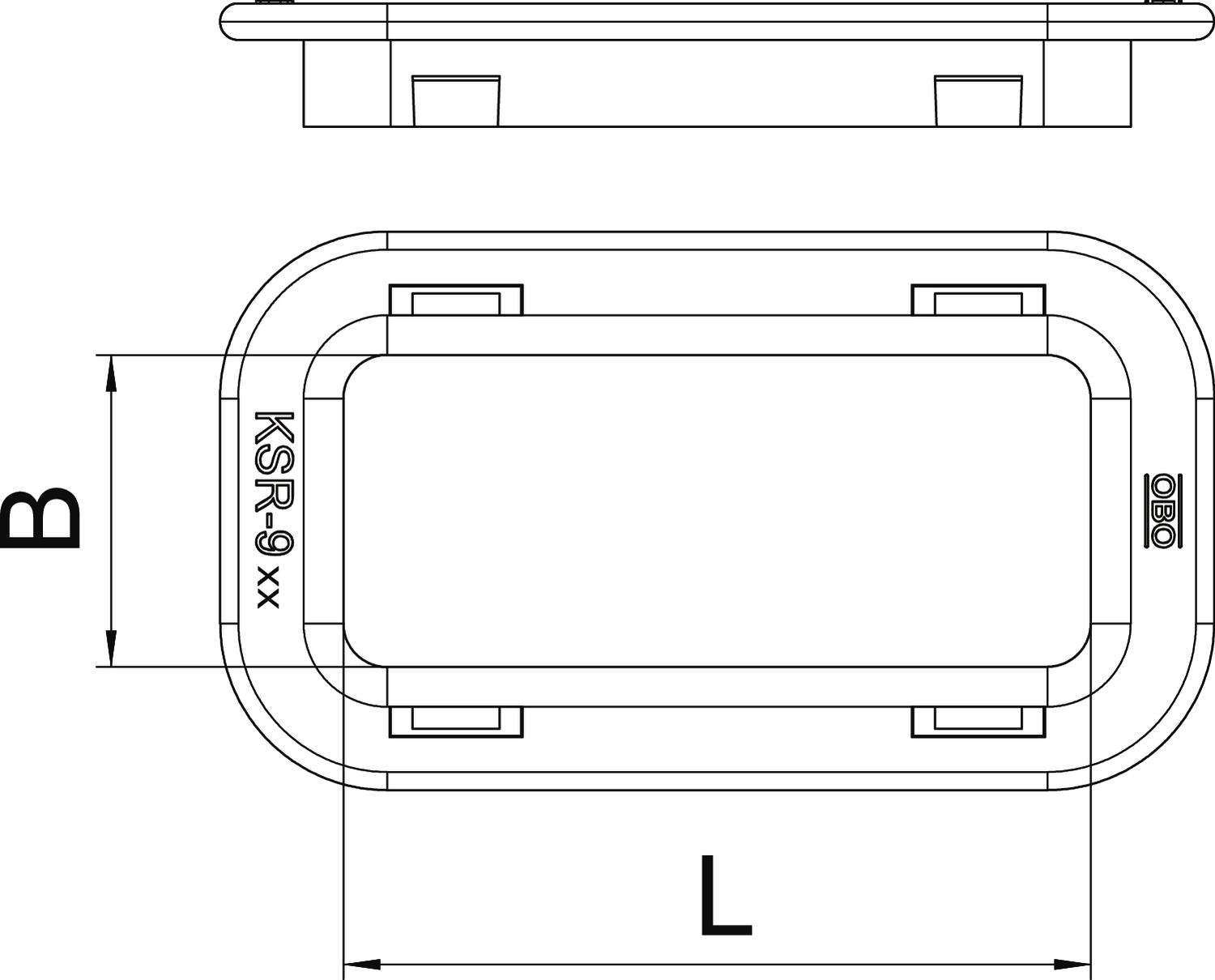

Colour Light grey Dimension b 21,5 mm Dimension L 51,5 mm Halogen-free yes Material Polyethylene Suitable for Cable tray Type Injection-moulded part - All types
- Downloads
-
Data sheet KSR-915 PE / 6066704 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity KSR-915 PE / 6066704 , 0.13MB , pdfUK Declaration of Conformity KSR-915 PE / 6066704 , 0.14MB , pdfREACH Declaration of conformity KSR-915 PE / 6066704 , 0.12MB , pdfRoHS Declaration of conformity KSR-915 PE / 6066704 , 0.13MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
