A4 suspension bracket 100
Item no. 6066514 | EAN 4012196257973
- Product description
-

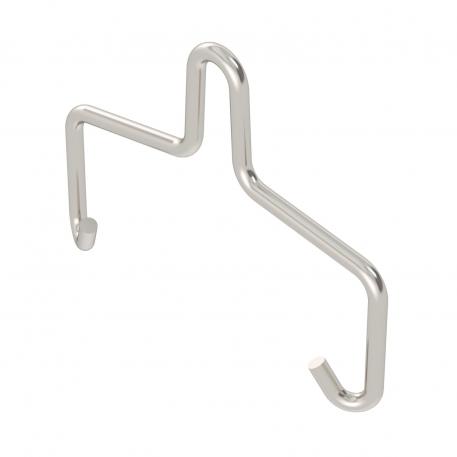

Product descriptionSuspension bracket for chain or steel wire tensioning rope fastening of the luminaire support rail, type LTS 100, and the AZ small duct, type AZK 100.
-
- Technical data
-
Technical data

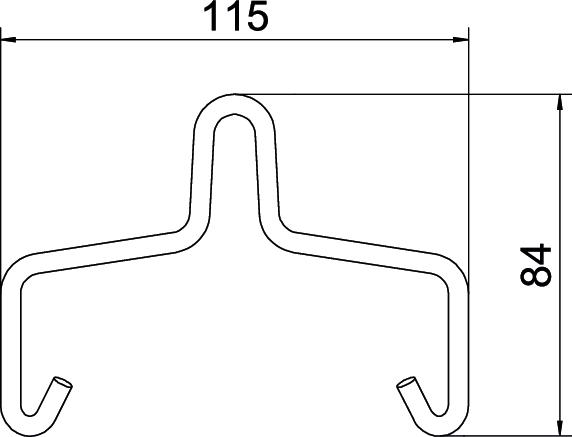

Adjustable no Colour stainless steel F in kN 0,6 kN Height 83,9 mm Hinged no Maintain electrical functions no Material Stainless steel Rustproof steel, pickled no Surface Bright, treated Width 114,9 mm - All types
- Downloads
-
Data sheet AHB 100 D5 A4 / 6066514 , 0.15MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity AHB 100 D5 A4 / 6066514 , 0.13MB , pdfREACH Declaration of conformity AHB 100 D5 A4 / 6066514 , 0.12MB , pdfRoHS Declaration of conformity AHB 100 D5 A4 / 6066514 , 0.12MB , pdfMounting instructions Mounting instructions, luminaire support systems , 0.04MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
