Adapter reduction M - PG 32 | | | 16 | 34
morepic-1 morepic-2

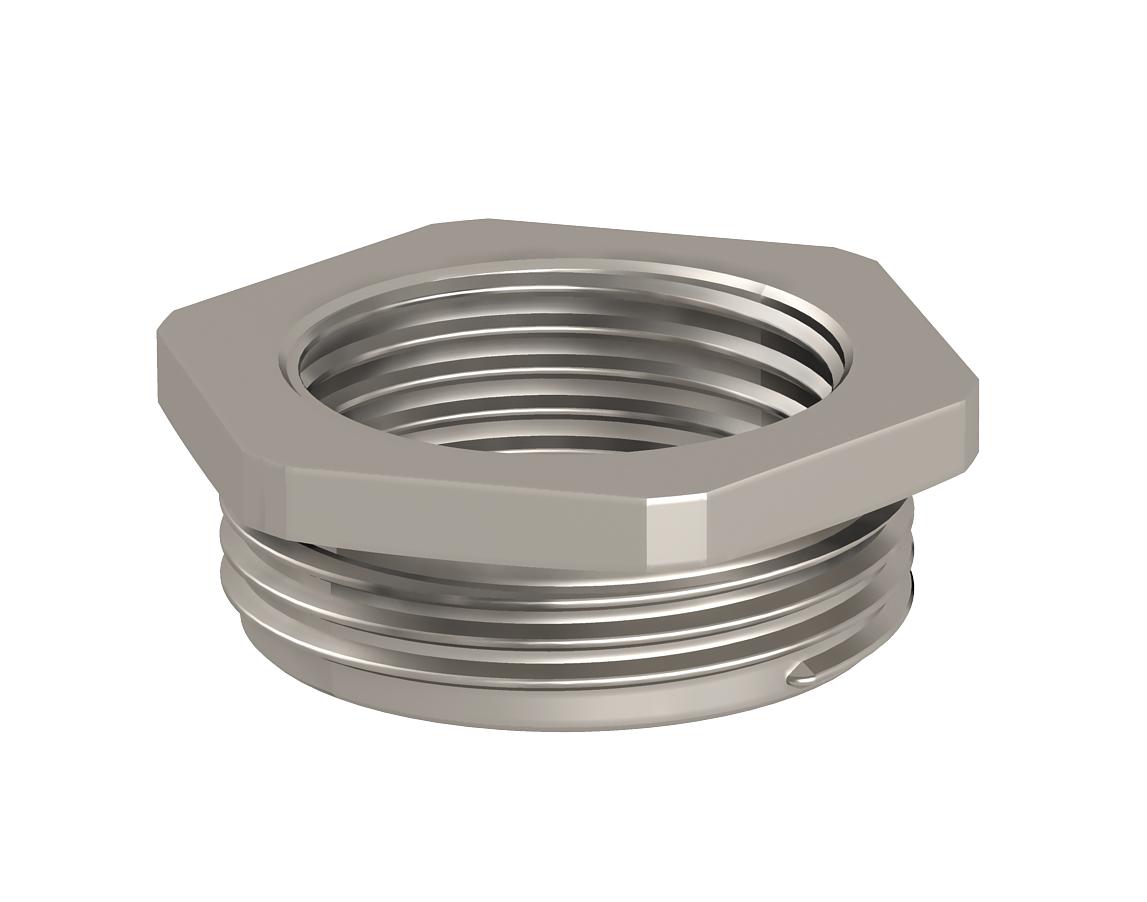

Adapter reduction M - PG

Item no. 2088328 | EAN 4012195391067

Product description
Product description
Adapter for reducing a metric threaded drill hole to a smaller Pg threaded drill hole.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
  • Thread Pg
Technical data

Technical data

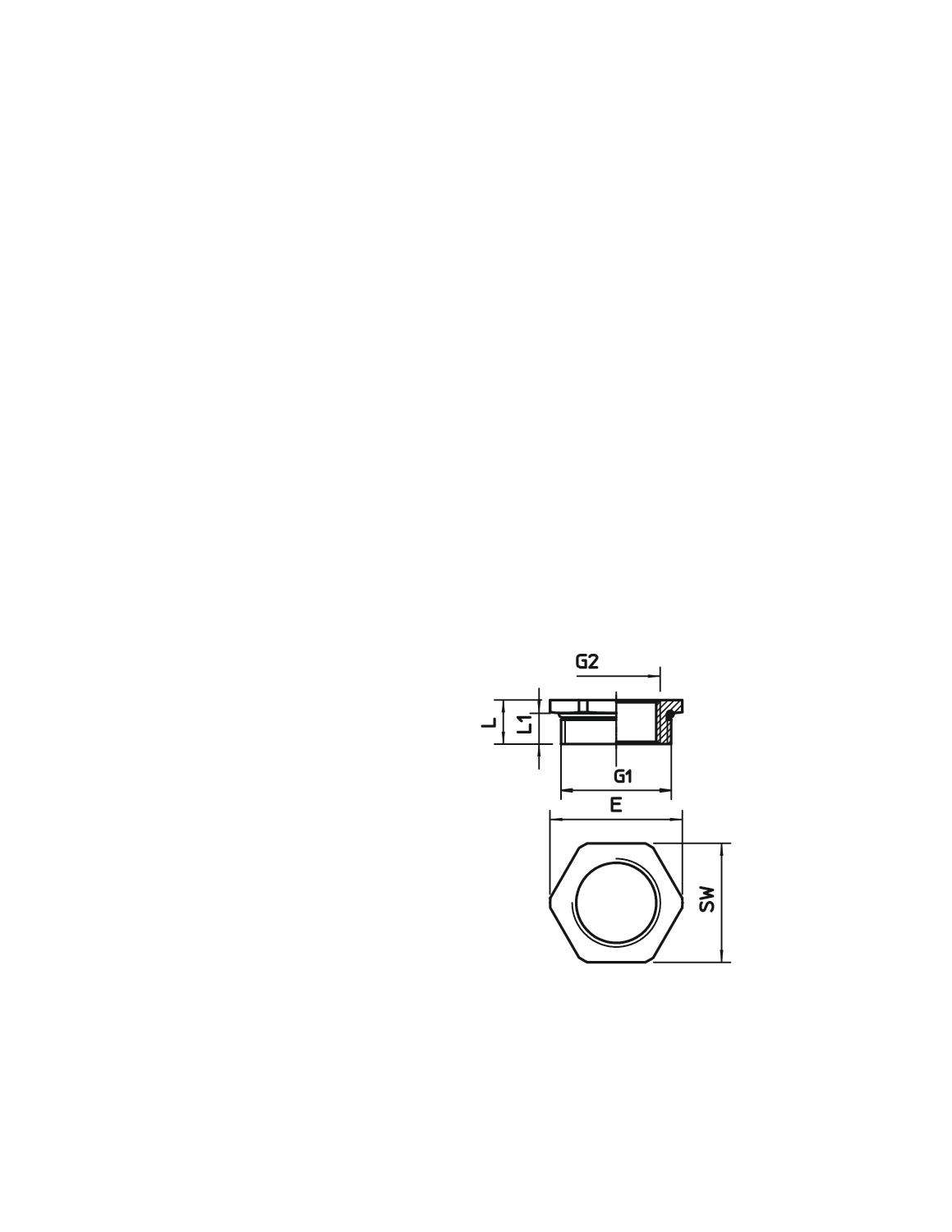

Dimension M32-PG16
Dimension E 36 mm
Dimension L 11 mm
Dimension L1 8 mm
explosion-proof no
Material Brass
Nickel-plated yes
Surface Nickel-plated
Thread dimension, metric, external 32
Thread dimension, PG, internal 16
Thread type: External thread Metric
Thread type: Internal thread PG
WAF 34
All types

All types

Types Thread dimension, metric, external Thread dimension, PG, internal WAF Item no. Quantity SSU
165 ADA M32-PG21 32 21 34 2088305
10 piece
165 ADA M16-PG7 16 7 17 2088310
20 piece
165 ADA M20-PG9 20 9 22 2088314
20 piece
165 ADA M25-PG11 25 11 27 2088320
20 piece
165 ADA M25-PG13 25 13.5 27 2088322
20 piece
165 ADA M32-PG16 32 16 34 2088328
10 piece
165 ADA M40-PG21 40 21 43 2088334
10 piece
165 ADA M50-PG29 50 29 55 2088340
5 piece
165 ADA M63-PG36 63 36 65 2088344
5 piece
165 ADA M63-PG42 63 42 65 2088346
5 piece
Downloads

Download

Download

EU declaration of conformity 165 ADA M32-PG16 / 2088328 , 0.05MB , pdf
Download
REACH Declaration of conformity 165 ADA M32-PG16 / 2088328 , 0.12MB , pdf
Download
RoHS Declaration of conformity 165 ADA M32-PG16 / 2088328 , 0.12MB , pdf
Download

165 ADA M32-PG16 / 2088328
