Adapter reduction PG - M | 25 | 29 | |
morepic-1 morepic-2

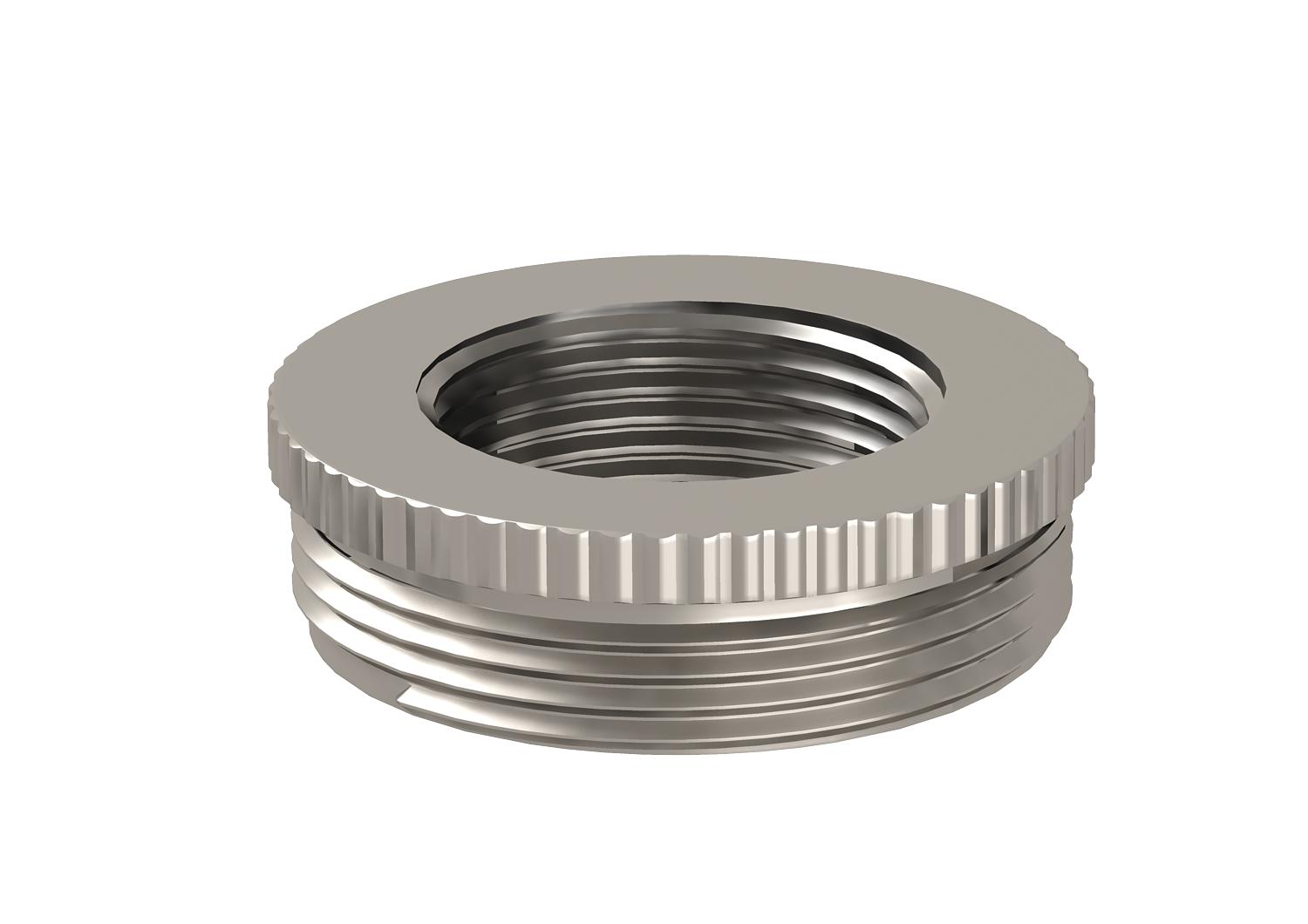

Adapter reduction PG - M

Item no. 2088289 | EAN 4012195390916

2088289 / 165 ADA PG29-M25
25
29
Product description
Product description
Adapter for converting a Pg threaded drill hole to a metric threaded drill hole.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
  • Thread Pg
Technical data

Technical data

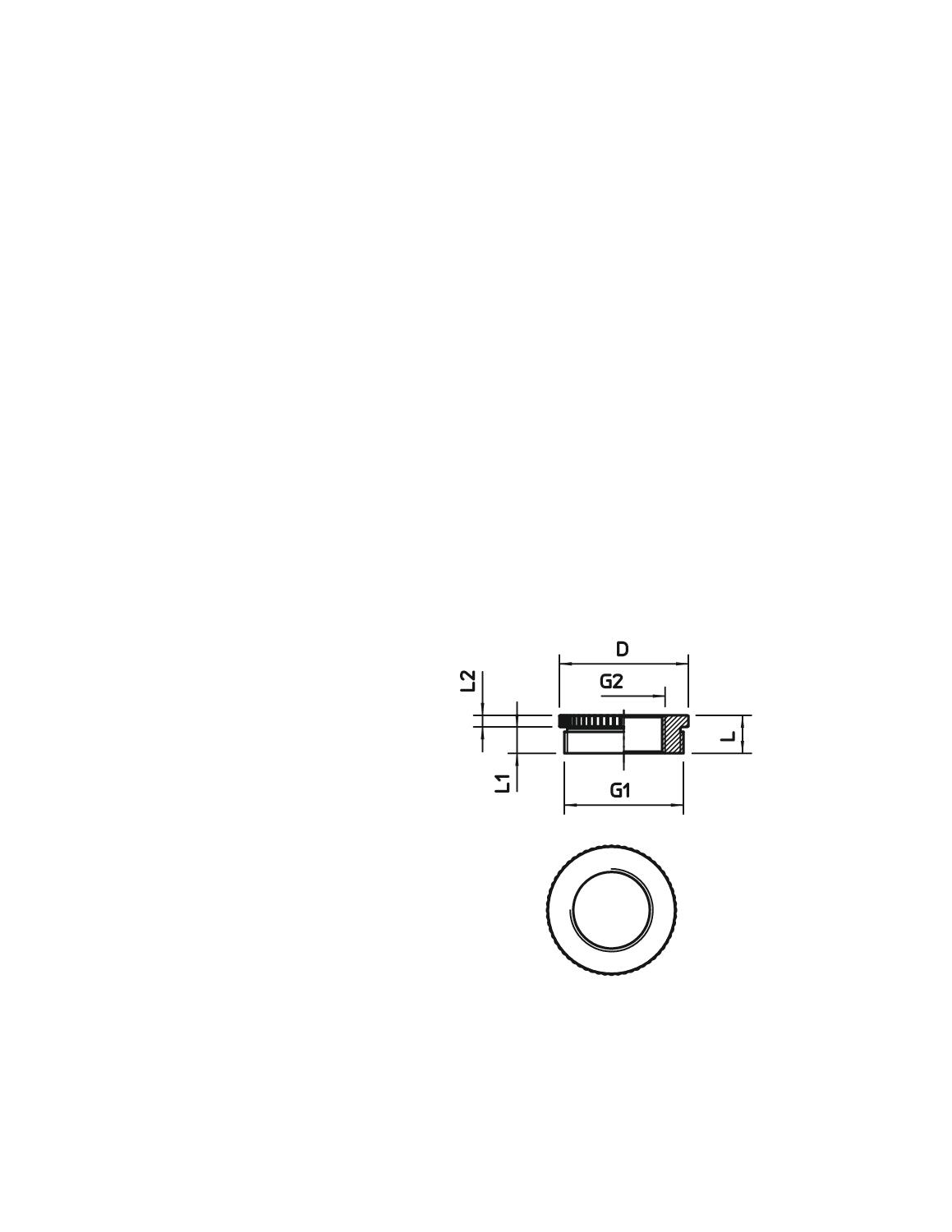

Dimension PG29-M25
Dimension D 39 mm
Dimension L 11,5 mm
Dimension L1 8 mm
Dimension L2 3,5 mm
explosion-proof no
Material Brass
Nickel-plated yes
Surface Nickel-plated
Thread dimension, metric, internal 25
Thread dimension, PG, external 29
Thread type: External thread PG
Thread type: Internal thread Metric
All types

All types

Types Thread dimension, metric, internal Thread dimension, PG, external Item no. Quantity SSU
165 ADA PG29-M25 25 29 2088289
20 piece
Downloads

Download

Download

EU declaration of conformity 165 ADA PG29-M25 / 2088289 , 0.05MB , pdf
Download
REACH Declaration of conformity 165 ADA PG29-M25 / 2088289 , 0.12MB , pdf
Download
RoHS Declaration of conformity 165 ADA PG29-M25 / 2088289 , 0.12MB , pdf
Download

165 ADA PG29-M25 / 2088289
