- Product description
-
Product description

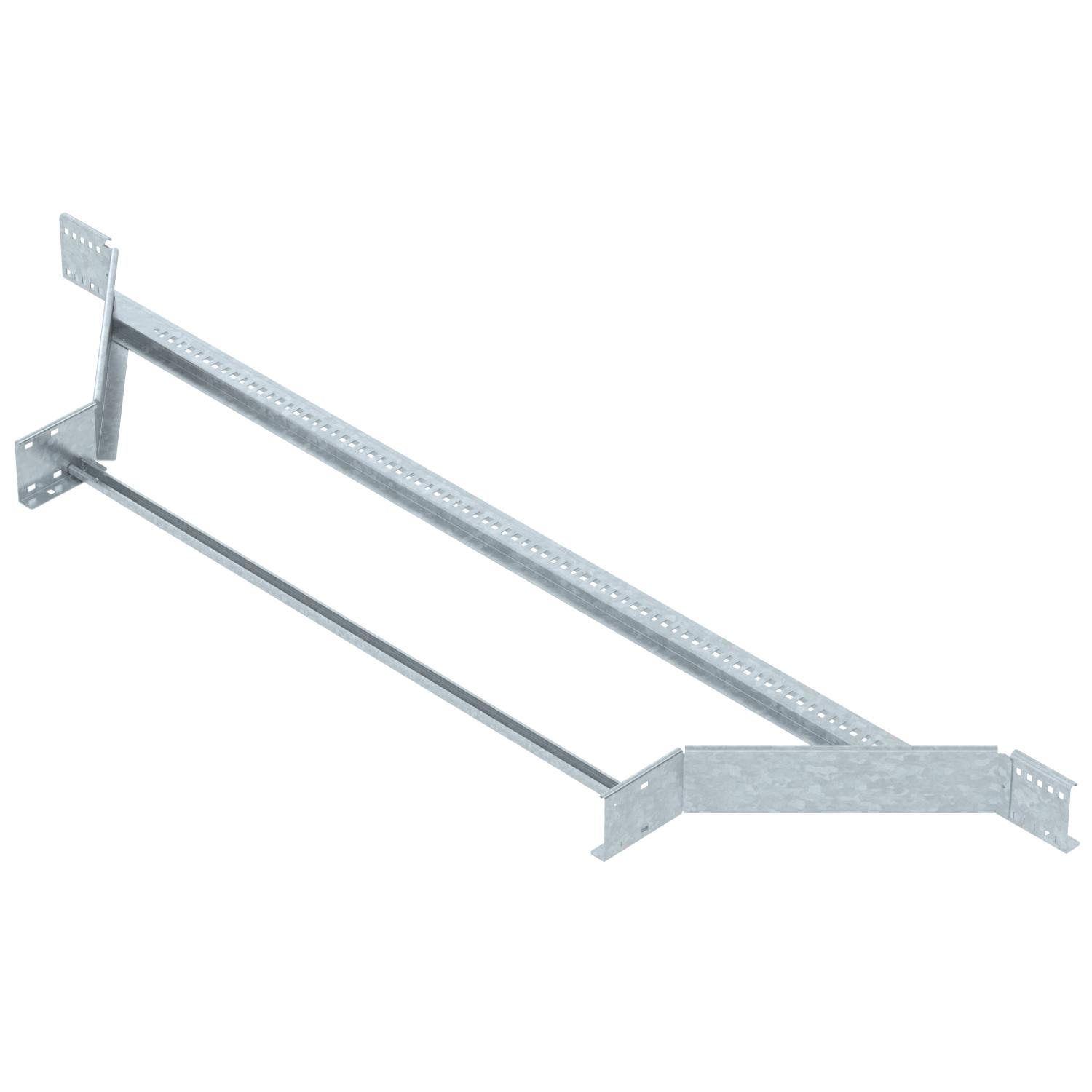

Add-on tee with welded rung for all cable ladder types of 110 mm side height.
- Technical data
-
Technical data
Connector version Without connectors Dimension 110x1200 Maintain electrical functions no Material Steel Rail thickness 2 mm Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile perforated Wide-span version no Dimensions

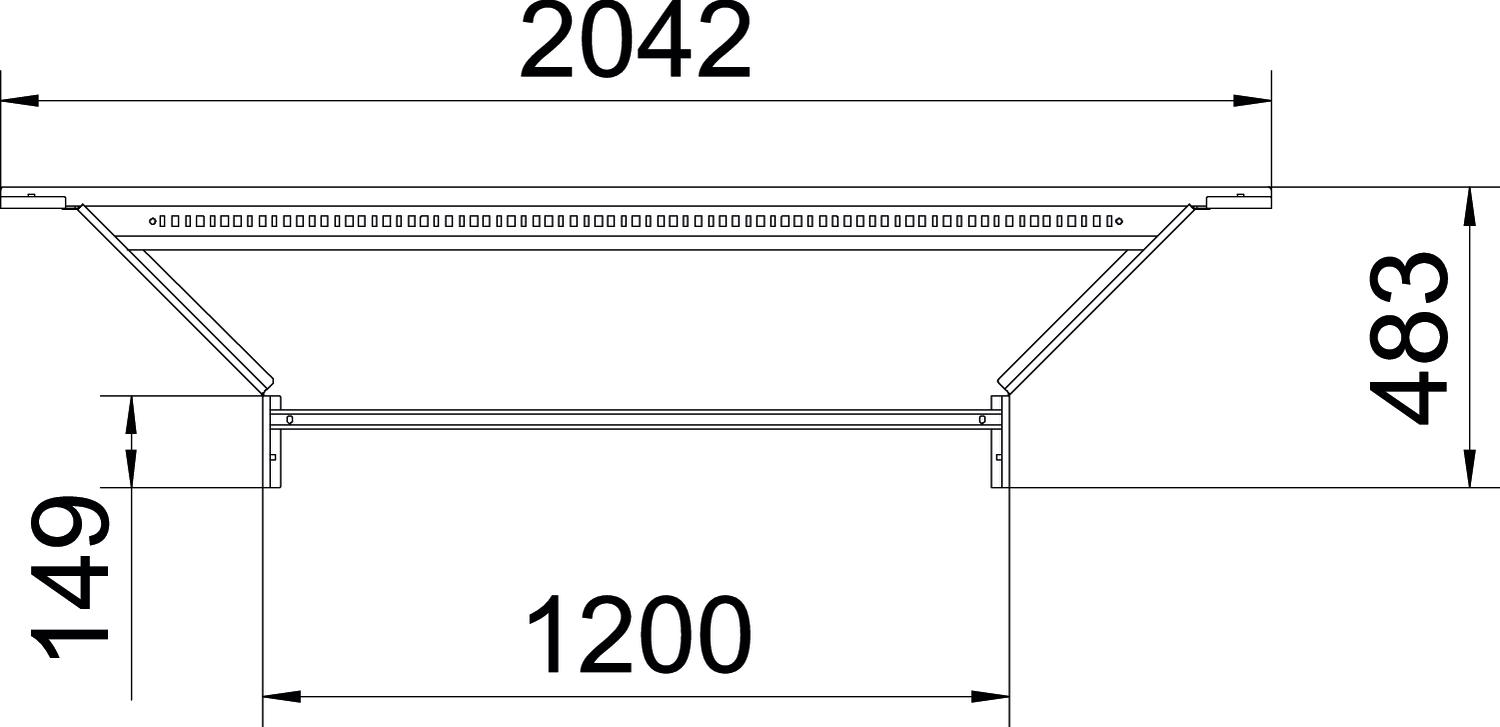

Dimension B 1200 mm Dimension R 300 mm Height 110 mm Width 1200 mm - All types
- Downloads
-
Data sheet SLAA 11120 R3 FT / 6225970 , 0.16MB , pdfCatalogue Cable support systems , 2.10MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity SLAA 11120 R3 FT / 6225970 , 0.15MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf
