Add-on tee 110 FT
Item no. 6225940 | EAN 4012196445608
- Product description
-

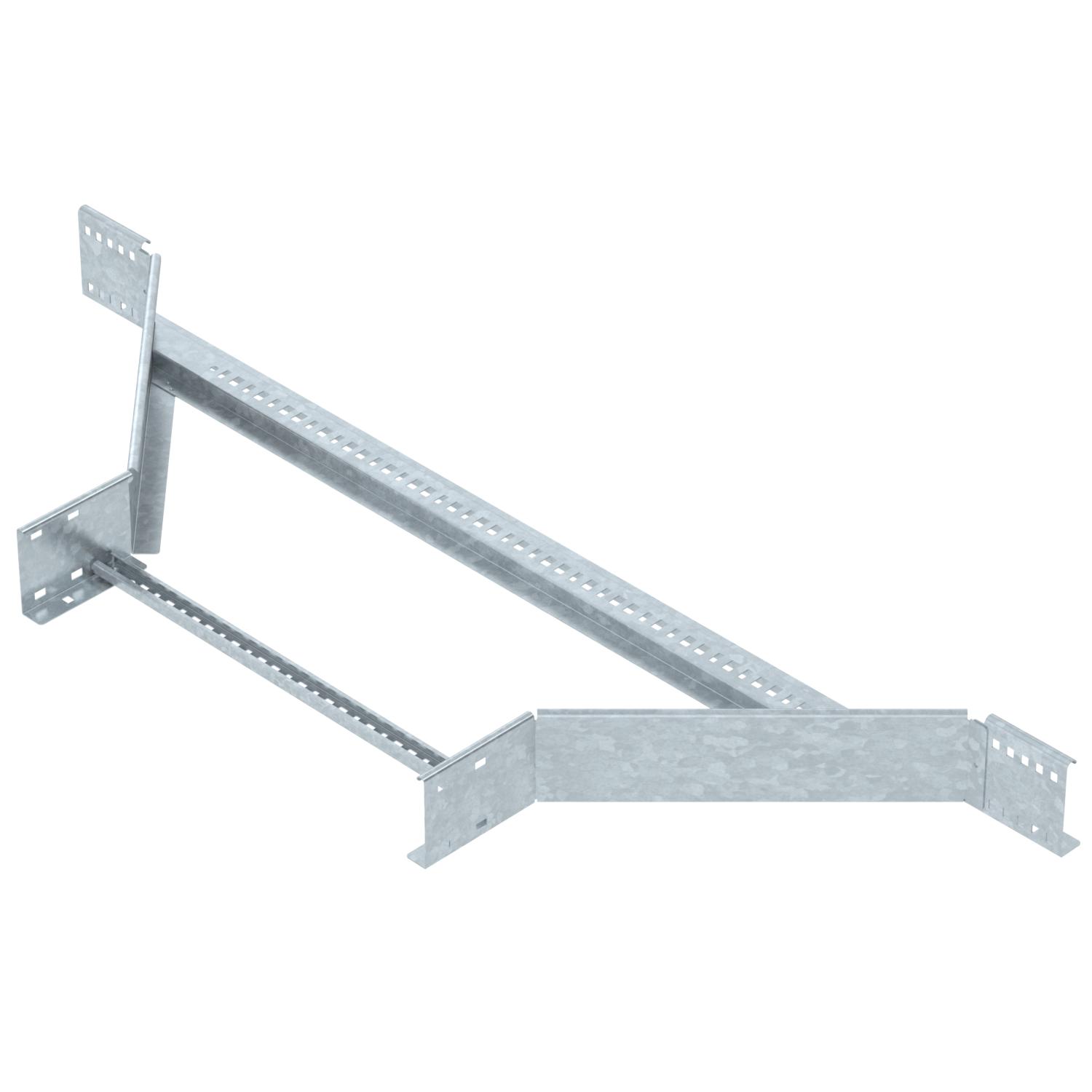

Product descriptionAdd-on tee with welded rung for all cable ladder types of 110 mm side height.
-
- Technical data
-
Technical data

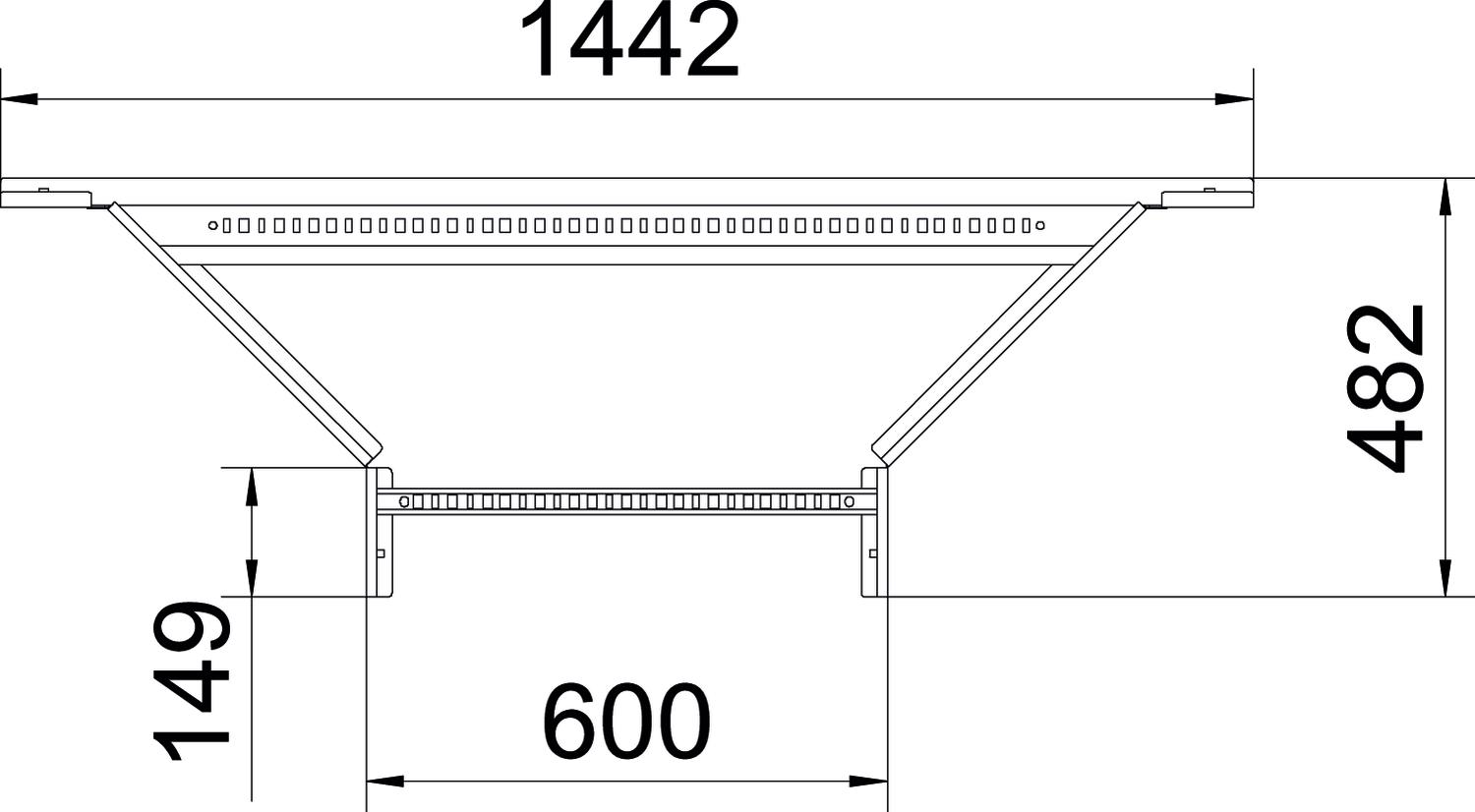

Colour zinc Connector version Without connectors Dimension 110x600 Dimension B 600 mm Dimension R 300 mm Height 110 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile perforated Wide-span version no Width 600 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FT
LVG 110 FT 6216548 10 piece - Downloads
-
Data sheet LAA 1160 R3 FT / 6225940 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity LAA 1160 R3 FT / 6225940 , 0.10MB , pdfUK Declaration of Conformity LAA 1160 R3 FT / 6225940 , 0.09MB , pdfREACH Declaration of conformity LAA 1160 R3 FT / 6225940 , 0.12MB , pdfRoHS Declaration of conformity LAA 1160 R3 FT / 6225940 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
