Add-on tee 110 FT 800
morepic-1 morepic-2 video-1 video-2

Add-on tee 110 FT

Item no. 6225964 | EAN 4012196445684

Product description
Product description

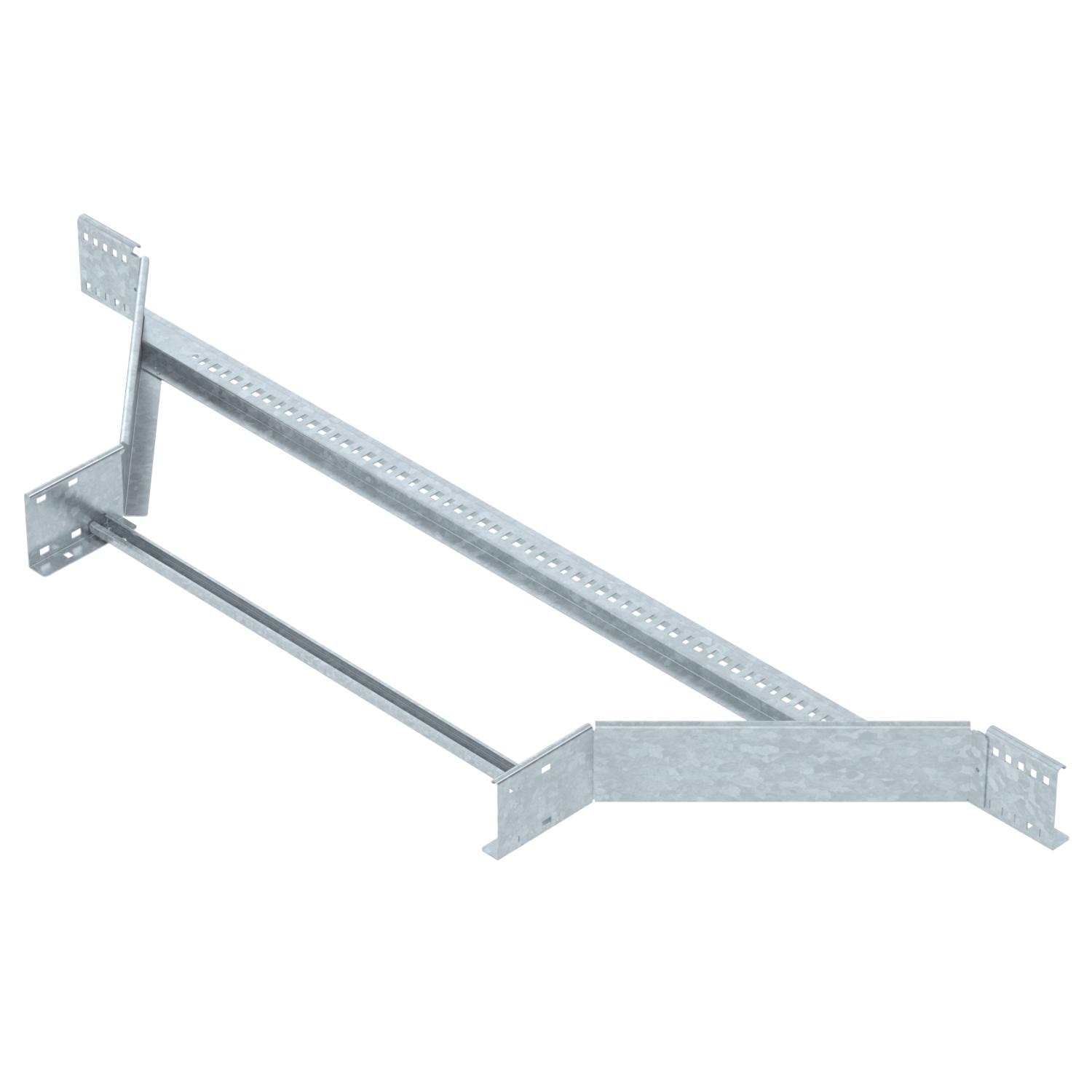

Add-on tee with welded rung for all cable ladder types of 110 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour zinc
Connector version Without connectors

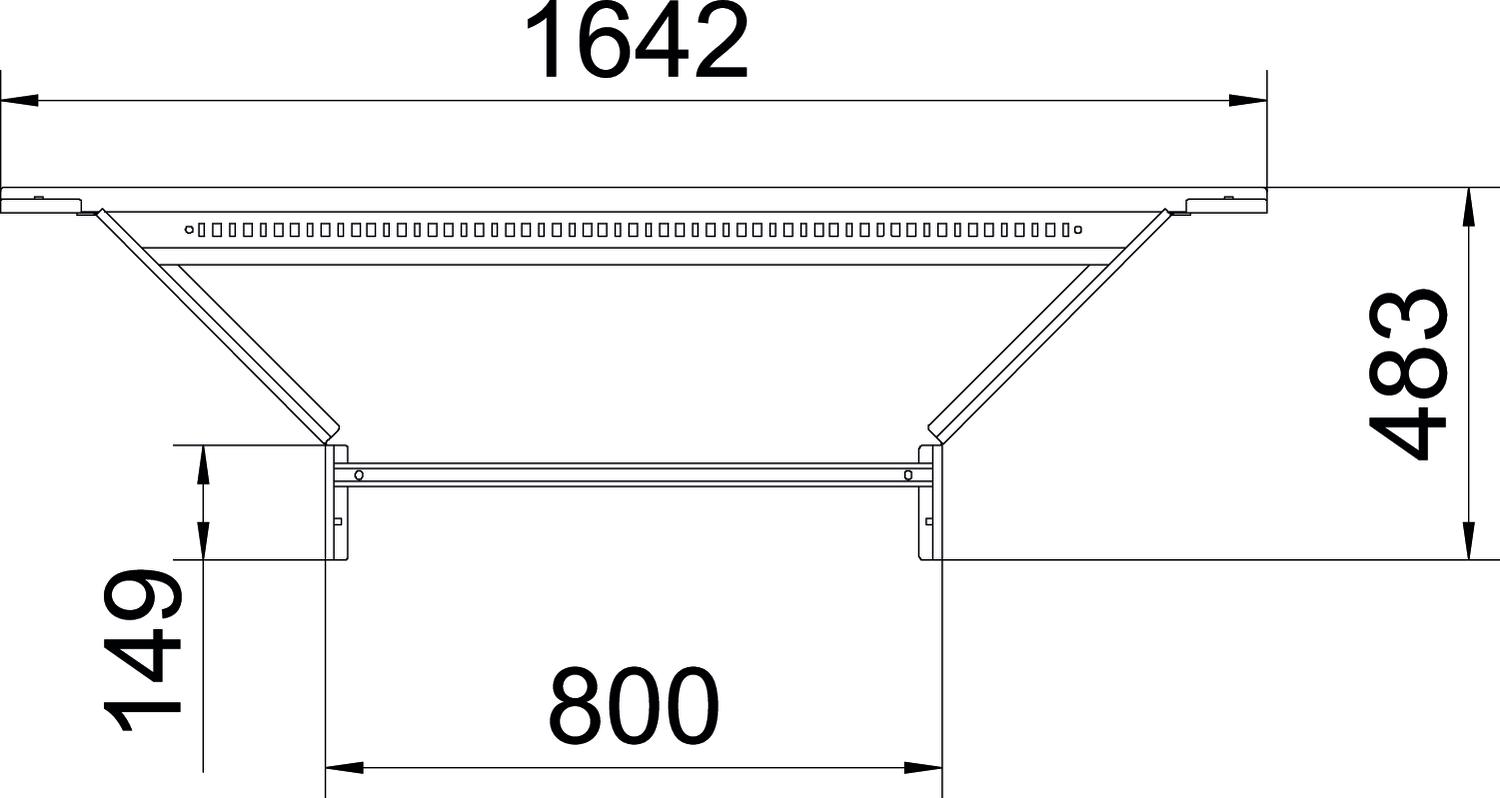

Dimension 110x800
Dimension B 800 mm
Dimension R 300 mm
Height 110 mm
Maintain electrical functions no
Material Steel
Rail thickness 2 mm
Rustproof steel, pickled no
Side rail version Flat profile
Surface Hot-dip galvanised
Version of the rungs Profile perforated
Wide-span version no
Width 800 mm
All types

All types

Types Width Item no. Quantity SSU
SLAA 1120 R3 FT 200 mm 6225950
1 piece
SLAA 1130 R3 FT 300 mm 6225952
1 piece
SLAA 1140 R3 FT 400 mm 6225954
1 piece
SLAA 1145 R3 FT 450 mm 6225956
1 piece
SLAA 1150 R3 FT 500 mm 6225958
1 piece
SLAA 1160 R3 FT 600 mm 6225960
1 piece
SLAA 1175 R3 FT 750 mm 6225962
1 piece
SLAA 1180 R3 FT 800 mm 6225964
1 piece
SLAA 1190 R3 FT 900 mm 6225966
1 piece
SLAA 11100 R3 FT 1000 mm 6225968
1 piece
SLAA 11120 R3 FT 1200 mm 6225970
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Straight connector FT Straight connector FT LVG 110 FT 6216548
10 piece
