Add-on tee 60 A2 400

morepic-1

morepic-2

Add-on tee 60 A2

Item no. 6225886 | EAN 4012196567416

Item no. / Types

Width

Product description

Product description

Mounting/branch with welded rung for use in the cable ladder types with a side height of 60 mm.

Technical data

Technical data

Connector version	Without connectors
Dimension	60x400
Maintain electrical functions	no
Material	Stainless steel
Rail thickness	1,5 mm

Rustproof steel, pickled	no
Side rail version	Flat profile
Surface	Bright, treated
Version of the rungs	Profile perforated
Wide-span version	no

Dimensions

Dimension B	400 mm
Height	60 mm

Width	400 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
LAA 620 R3 A2	200 mm	6225882	piece	1 piece
LAA 630 R3 A2	300 mm	6225884	piece	1 piece
LAA 640 R3 A2	400 mm	6225886	piece	1 piece
LAA 650 R3 A2	500 mm	6225888	piece	1 piece
LAA 660 R3 A2	600 mm	6225890	piece	1 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Straight connector A2	LVG 60 A2	6208846	piece	10 piece

Downloads

Data sheet LAA 640 R3 A2 / 6225886 , 0.18MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LAA 640 R3 A2 / 6225886 , 0.16MB , pdf

Mounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf

Mounting instructions KTS mounting instructions Version 1.1 applicable for all OBO cable support systems , 2.00MB , pdf

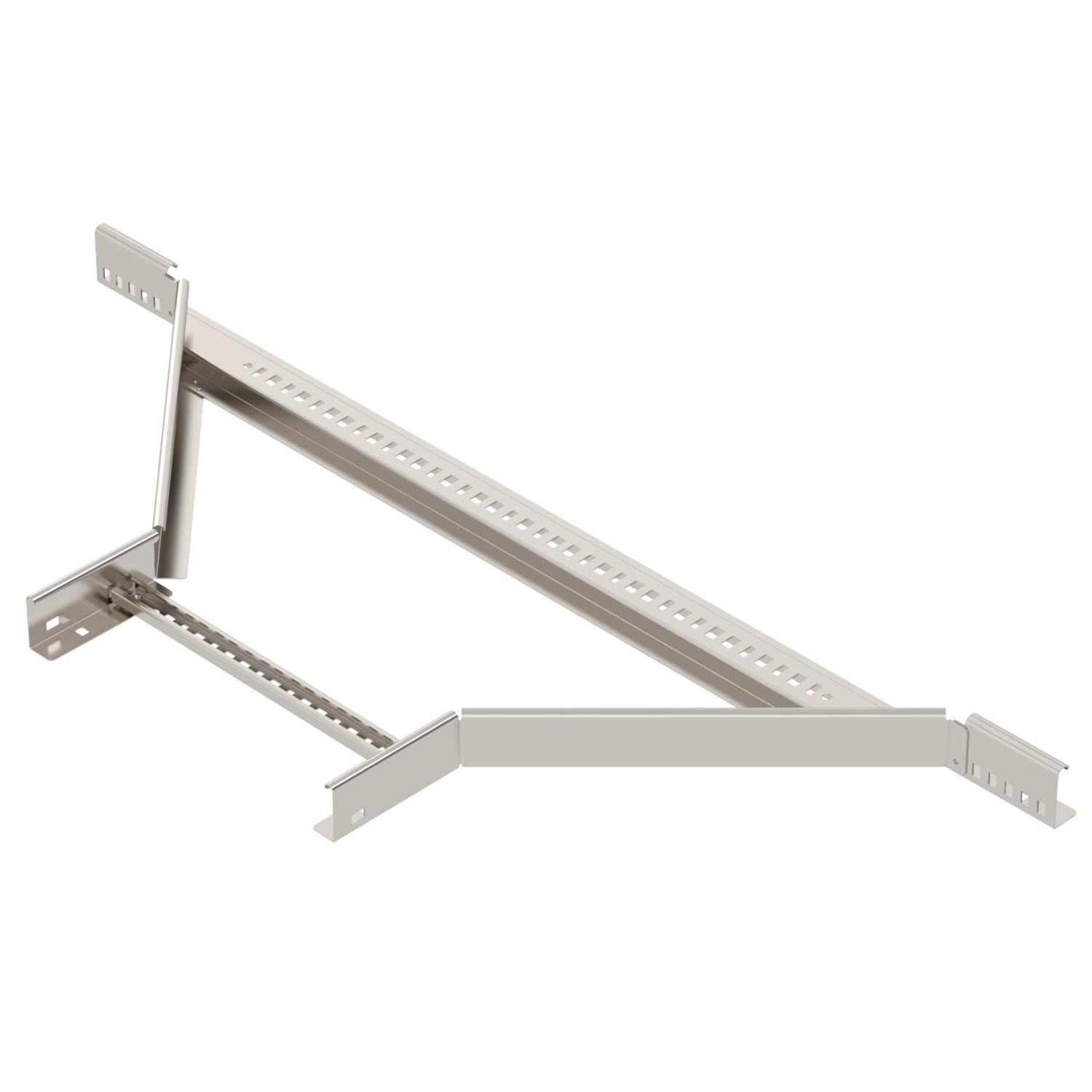

Product graphic LAA 640 R3 A2 / 6225886, 49.63 kB, jpg

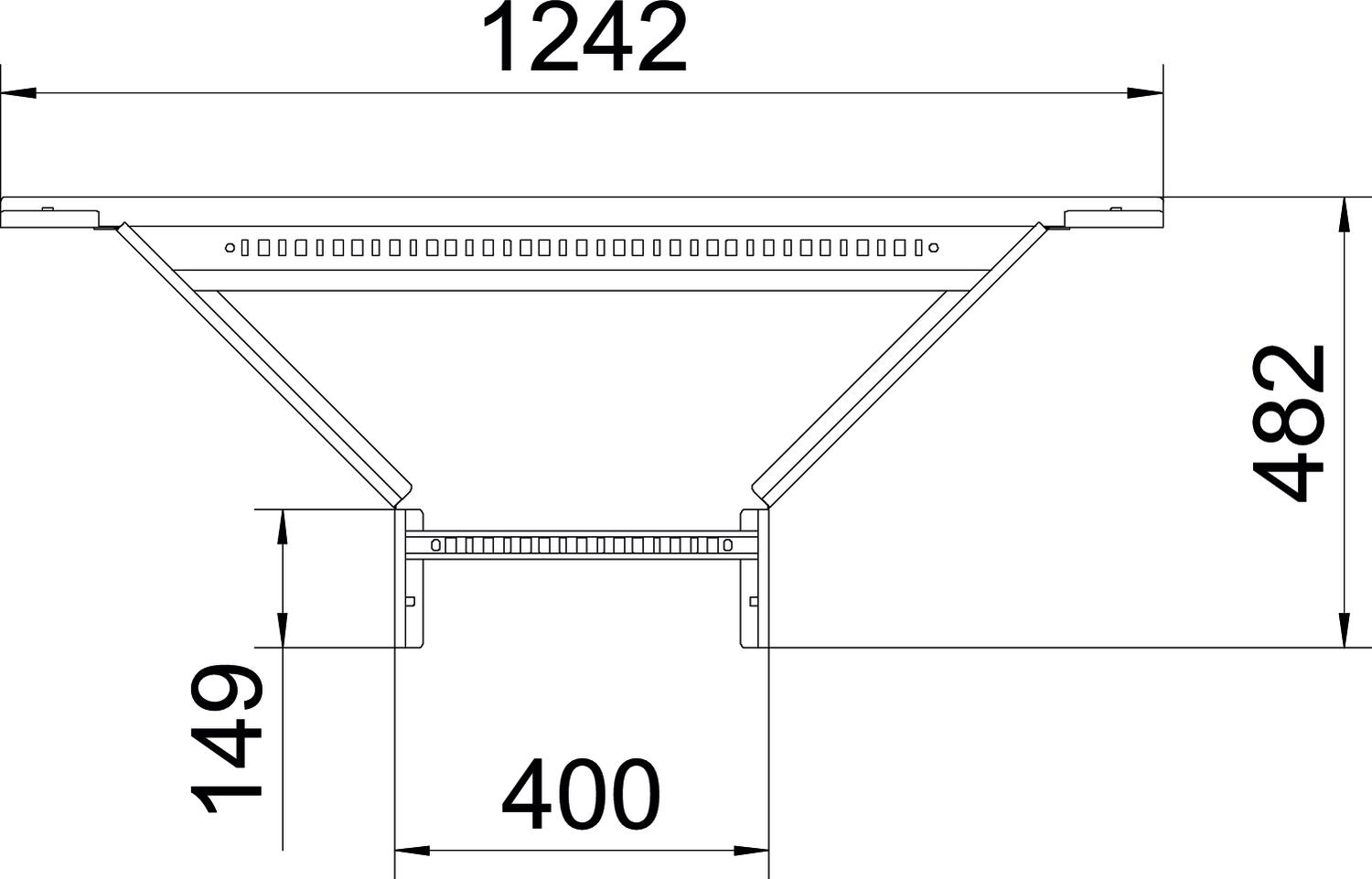

Scale drawing LAA 640 R3 A2 / 6225886, 68.13 kB, jpg

LAA 640 R3 A2 / 6225886
