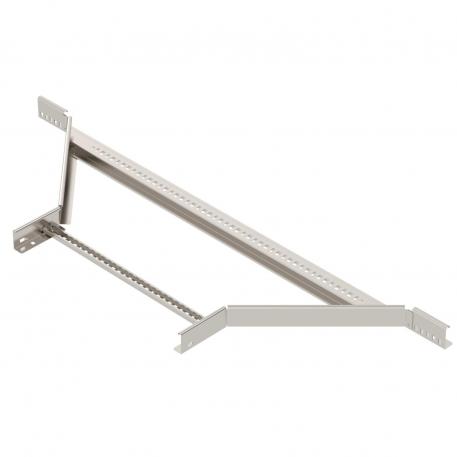

Add-on tee 60 A2
Item no. 6225890 | EAN 4012196567454
- Product description
-

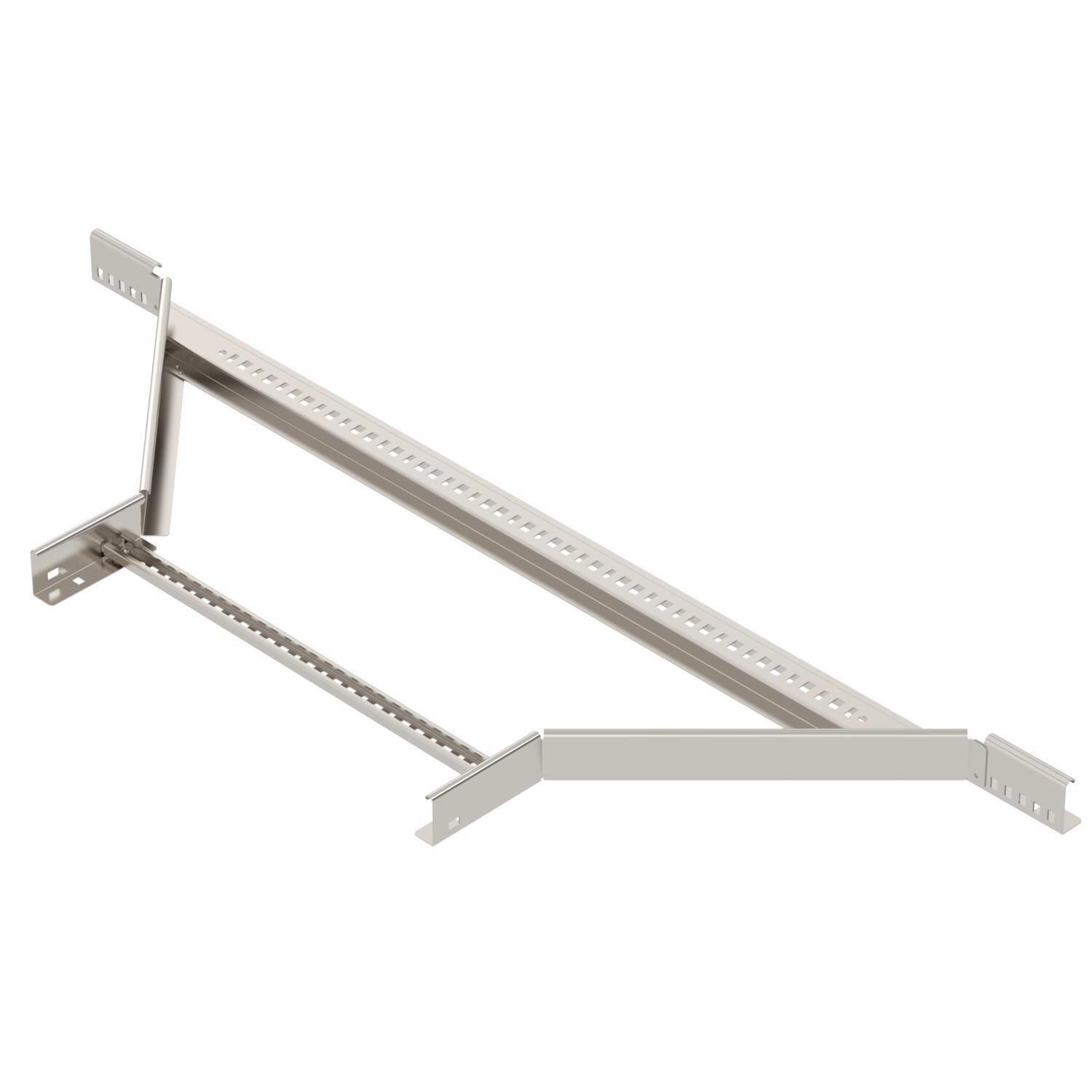

Product descriptionMounting/branch with welded rung for use in the cable ladder types with a side height of 60 mm.
-
- Technical data
-
Technical data

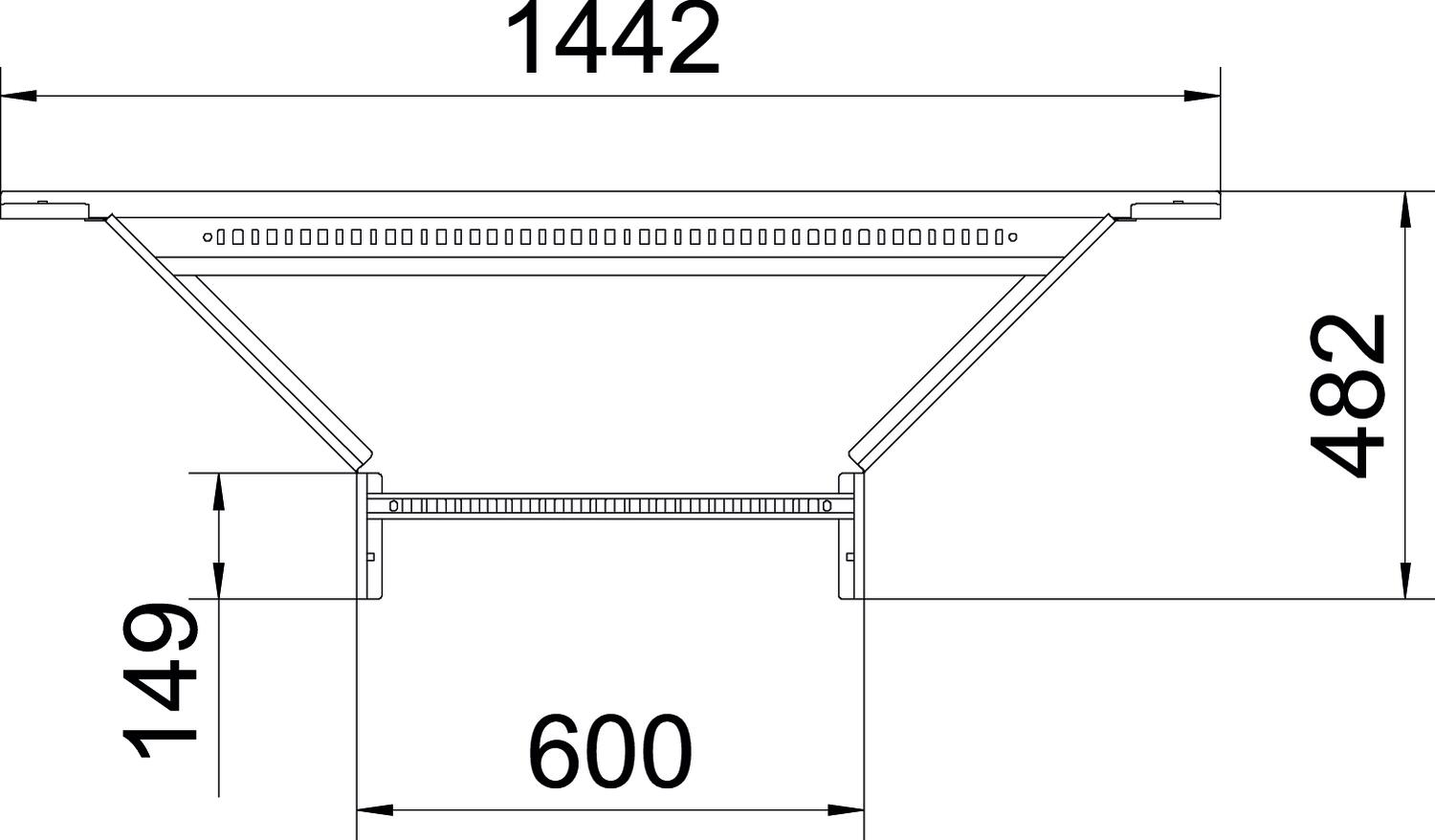

Colour stainless steel Connector version Without connectors Dimension 60x600 Dimension B 600 mm Height 60 mm Maintain electrical functions no Material Stainless steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Bright, treated Version of the rungs Profile perforated Wide-span version no Width 600 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector A2
LVG 60 A2 6208846 10 piece - Downloads
-
Data sheet LAA 660 R3 A2 / 6225890 , 0.21MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity LAA 660 R3 A2 / 6225890 , 0.10MB , pdfUK Declaration of Conformity LAA 660 R3 A2 / 6225890 , 0.09MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
