Add-on tee 60 FS
Item no. 6225852 | EAN 4012196445394
- Product description
-

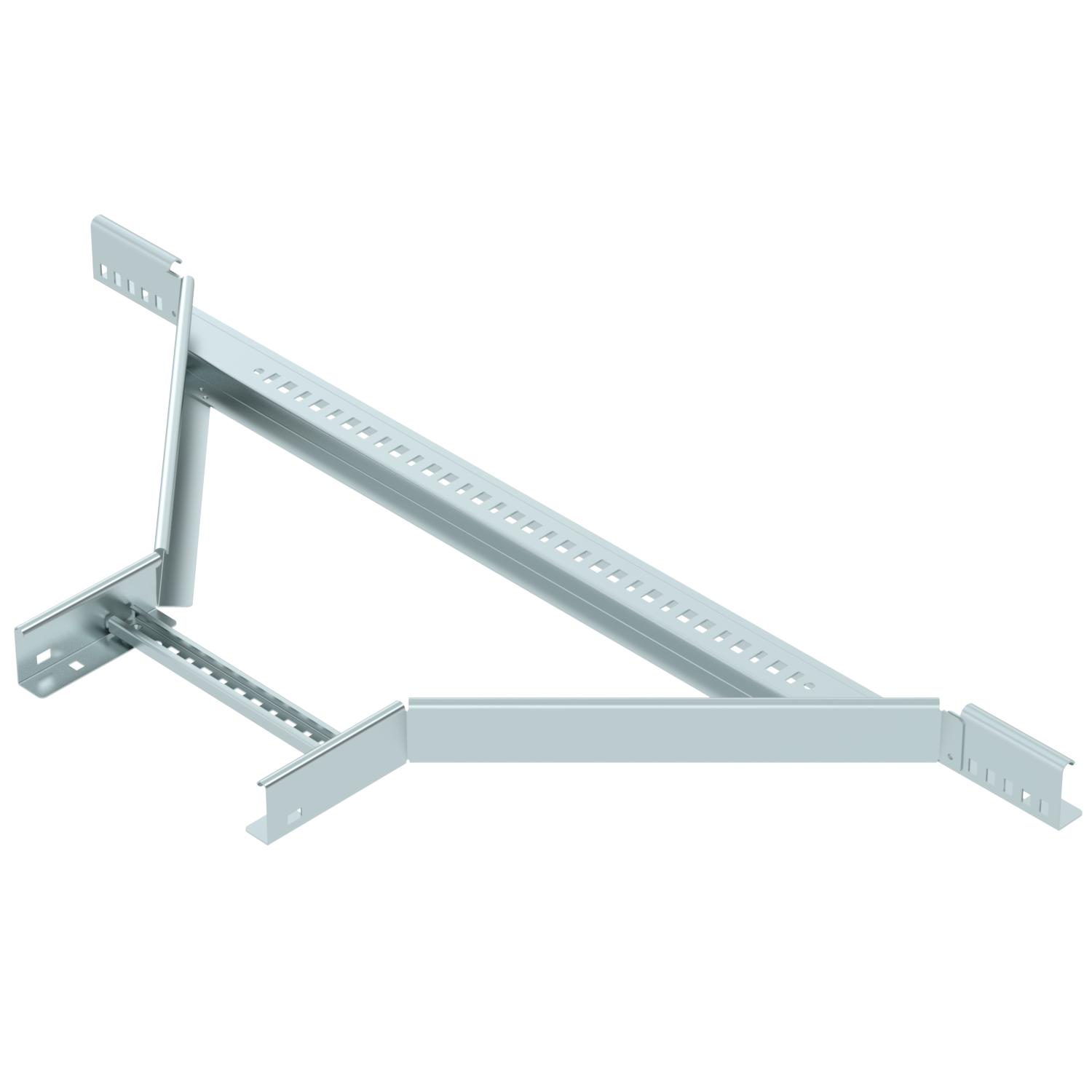

Product descriptionMounting/branch with welded rung for use in the cable ladder types with a side height of 60 mm.
-
- Technical data
-
Technical data

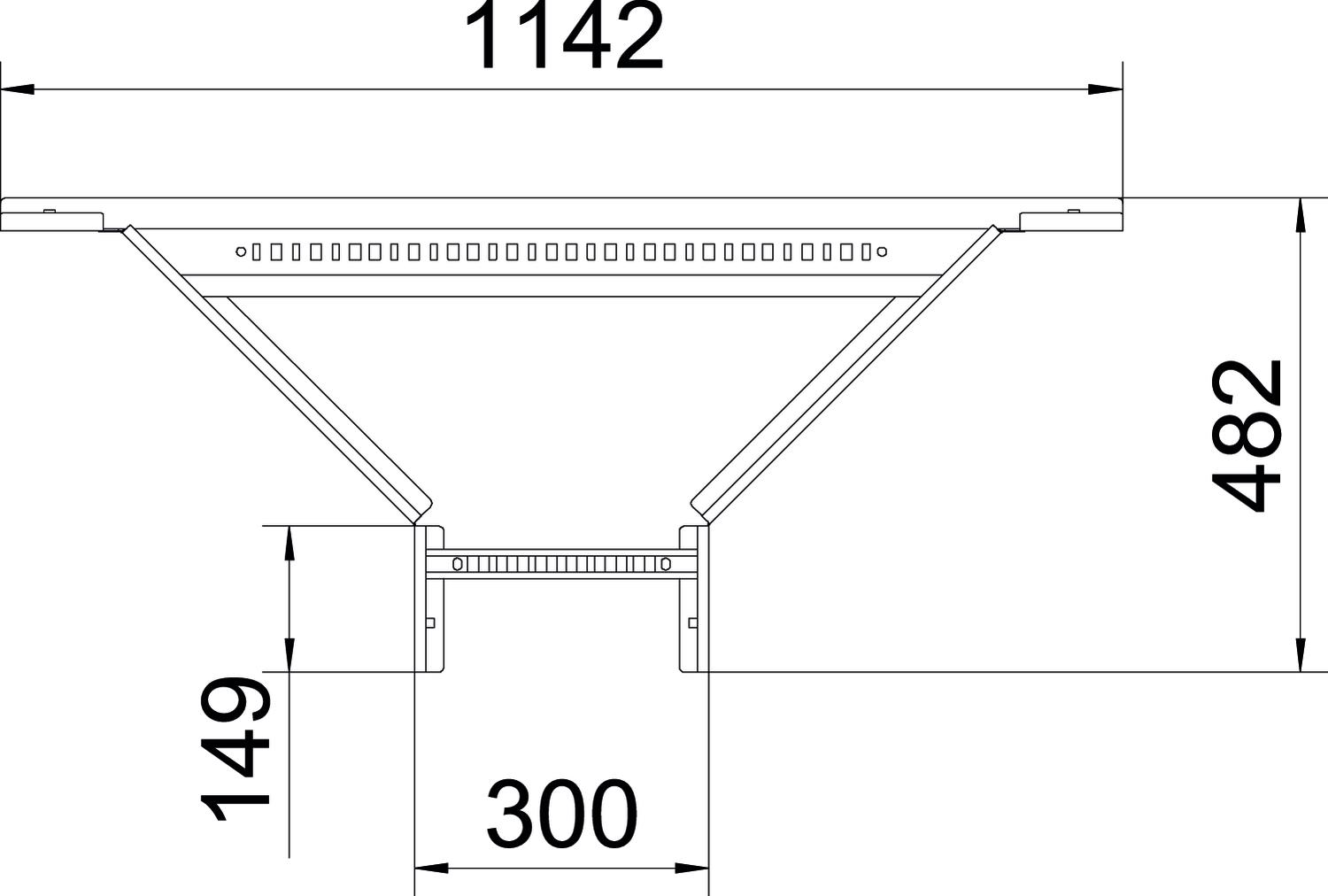

Colour zinc Connector version Without connectors Dimension 60x300 Dimension B 300 mm Dimension R 300 mm Height 60 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile perforated Wide-span version no Width 300 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FS
LVG 60 FS 6208840 10 piece - Downloads
-
