Adhesive clip 2025, light grey 18 | 4 | 7 | 2 x 18 | Light grey; RAL 7035
morepic-1 morepic-2

Adhesive clip 2025, light grey

Item no. 2228610 | EAN 4012195219552

4 mm
7 mm
Light grey; RAL 7035
Product description
Product description
Adhesive clip, for clamping to the cable.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 4-7mm, L18

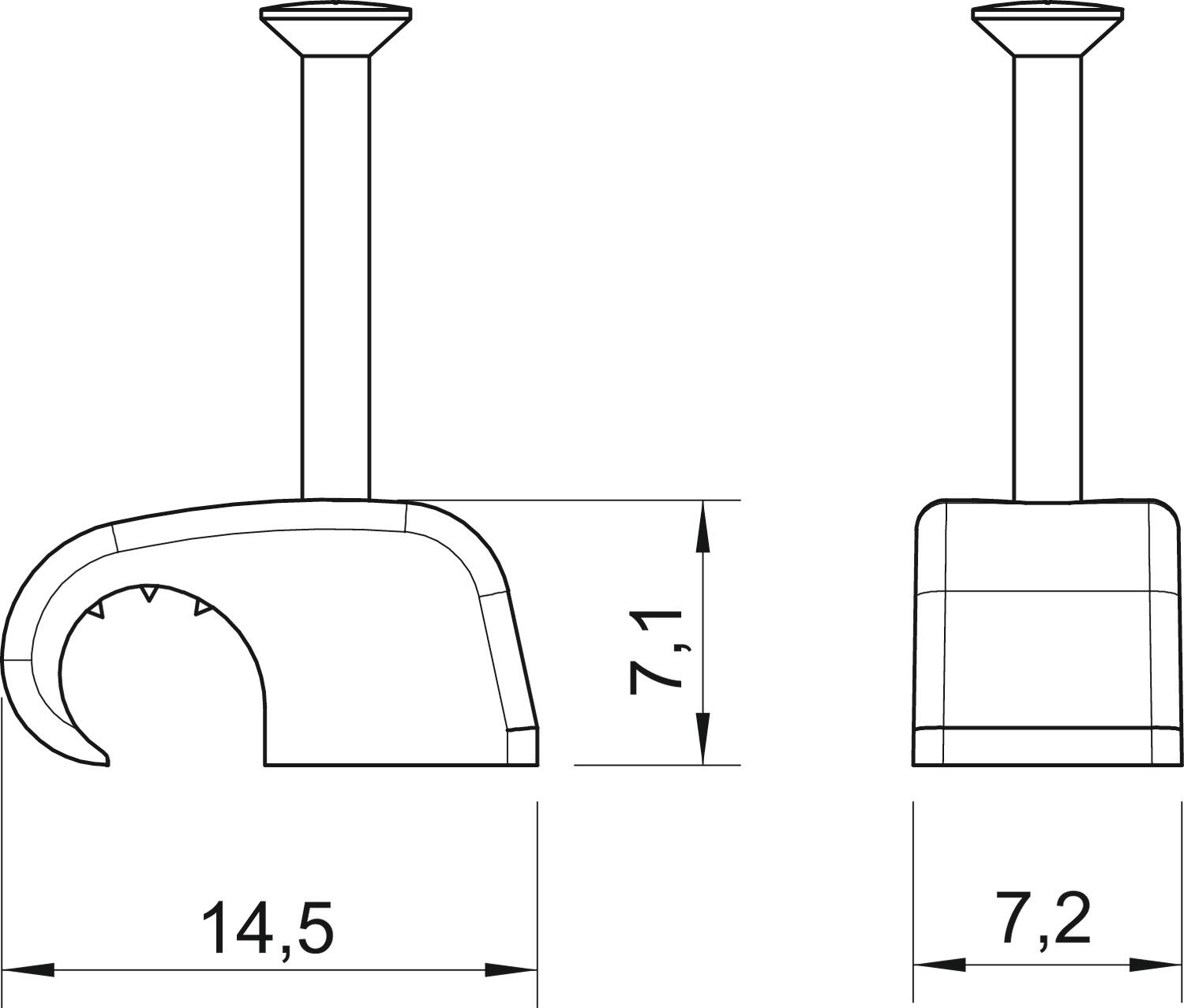

Dimension B 7,2 mm
Dimension H 7,1 mm
Dimension L 14,5 mm
Double clip no
for cable diameter, max. 7 mm
for cable diameter, min. 4 mm
For nail diameter 2 x 18
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 18 mm
Pipe locking no
Shape Round (for round conductor)
With nail yes
All types

All types

Types Nail length for cable diameter, min. for cable diameter, max. For nail diameter Colour Item no. Quantity SSU
2025 18 LGR 18 mm 4 mm 7 mm 2 x 18 Light grey; RAL 7035 2228610
100 piece
2025 25 LGR 25 mm 4 mm 7 mm 2 x 25 Light grey; RAL 7035 2228629
100 piece
2025 30 LGR 30 mm 4 mm 7 mm 2 x 30 Light grey; RAL 7035 2228637
100 piece
2025 25 LGR SO 25 mm 4 mm 7 mm 2 x 25 Light grey; RAL 7035 2232901
7500 piece
