Adhesive clip 2025, light grey 25 | 4 | 7 | 2 x 25 | Light grey; RAL 7035
morepic-1 morepic-2

Adhesive clip 2025, light grey

Item no. 2228629 | EAN 4012195219613

4 mm
7 mm
Light grey; RAL 7035
Product description

Product description

Adhesive clip, for clamping to the cable.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 4-7mm, L25
Double clip no
for cable diameter, max. 7 mm
for cable diameter, min. 4 mm
For nail diameter 2 x 25
Halogen-free yes
Hardened yes
Impact-resistant no
Material Polypropylene
Nail length 25 mm
Pipe locking no
Shape Round (for round conductor)
With nail yes

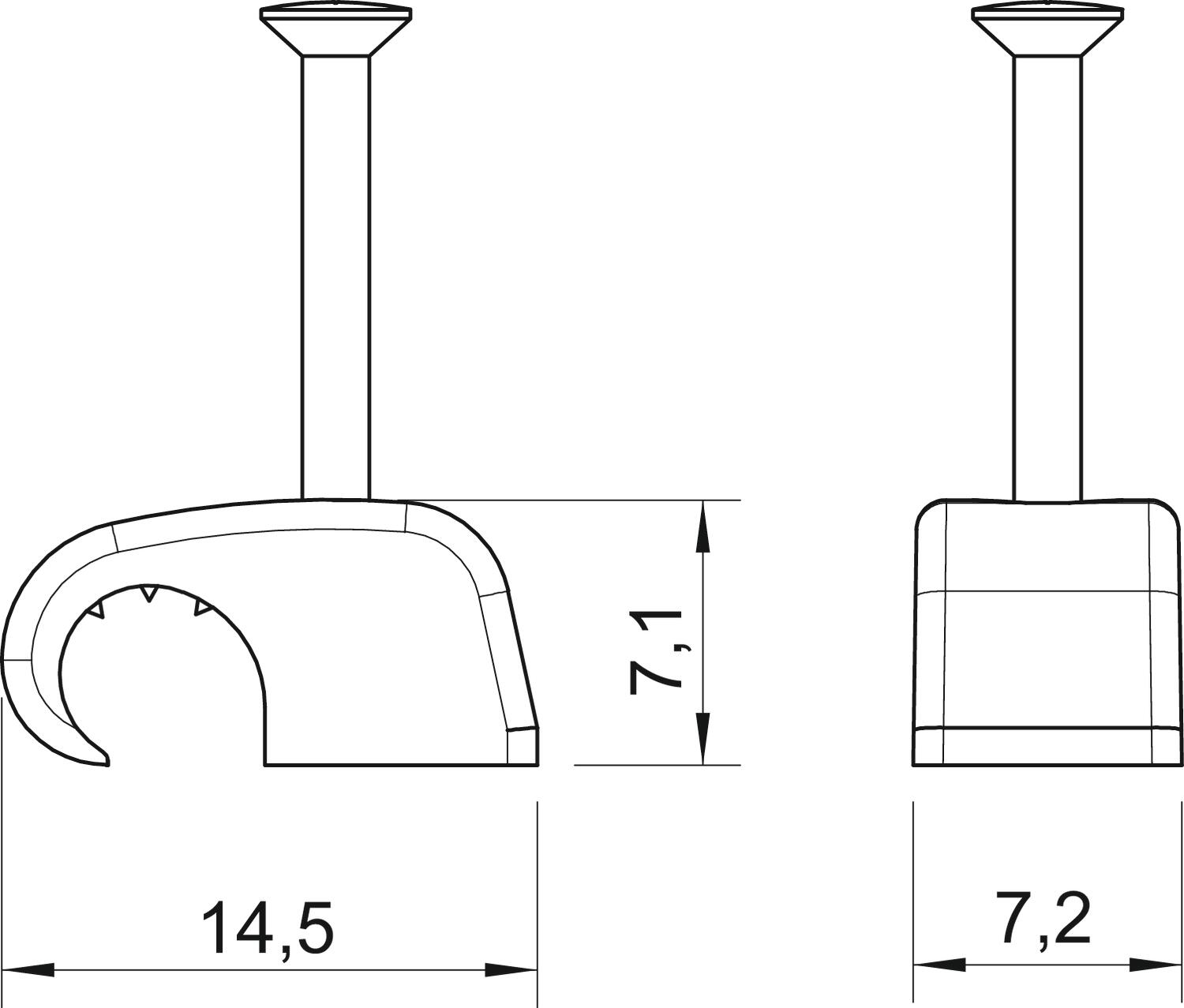

Dimensions

Dimension B 7,2 mm
Dimension H 7,1 mm
Dimension L 14,5 mm
All types

All types

Types Nail length for cable diameter, min. for cable diameter, max. For nail diameter Colour Item no. Quantity SSU
2025 18 LGR 18 mm 4 mm 7 mm 2 x 18 Light grey; RAL 7035 2228610
100 piece
2025 25 LGR 25 mm 4 mm 7 mm 2 x 25 Light grey; RAL 7035 2228629
100 piece
2025 30 LGR 30 mm 4 mm 7 mm 2 x 30 Light grey; RAL 7035 2228637
100 piece
2025 25 LGR SO 25 mm 4 mm 7 mm 2 x 25 Light grey; RAL 7035 2232901
300 piece
