Adhesive clip 2025, light grey 25 | 4 | 7 | 2 x 25 | Light grey; RAL 7035

morepic-1

morepic-2

Adhesive clip 2025, light grey

Item no. 2232901 | EAN 4012195519492

Item no. / Types

Nail length

for cable diameter, min.	4 mm

for cable diameter, max.	7 mm

For nail diameter

Colour	Light grey; RAL 7035

Product description

Product description

Adhesive clip, for clamping to the cable.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	4-7mm, L25
Dimension B	7,2 mm
Dimension H	7,1 mm
Dimension L	14,5 mm
Double clip	no
for cable diameter, max.	7 mm
for cable diameter, min.	4 mm
For nail diameter	2 x 25

Halogen-free	yes
Hardened	yes
Impact-resistant	yes
Material	Polypropylene
Nail length	25 mm
Pipe locking	no
Shape	Round (for round conductor)
With nail	yes

All types

All types

Types	Nail length	for cable diameter, min.	for cable diameter, max.	For nail diameter	Colour	Item no.	Quantity	SSU
2025 18 LGR	18 mm	4 mm	7 mm	2 x 18	Light grey; RAL 7035	2228610	piece	100 piece
2025 25 LGR	25 mm	4 mm	7 mm	2 x 25	Light grey; RAL 7035	2228629	piece	100 piece
2025 30 LGR	30 mm	4 mm	7 mm	2 x 30	Light grey; RAL 7035	2228637	piece	100 piece
2025 25 LGR SO	25 mm	4 mm	7 mm	2 x 25	Light grey; RAL 7035	2232901	piece	7500 piece

Downloads

Data sheet 2025 25 LGR SO / 2232901 , 0.19MB , pdf

Catalogue Connection and fastening systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, connection and fastening systems , 2.10MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

EU declaration of conformity 2025 25 LGR SO / 2232901 , 0.06MB , pdf

Download

REACH Declaration of conformity 2025 25 LGR SO / 2232901 , 0.12MB , pdf

Download

RoHS Declaration of conformity 2025 25 LGR SO / 2232901 , 0.12MB , pdf

Download

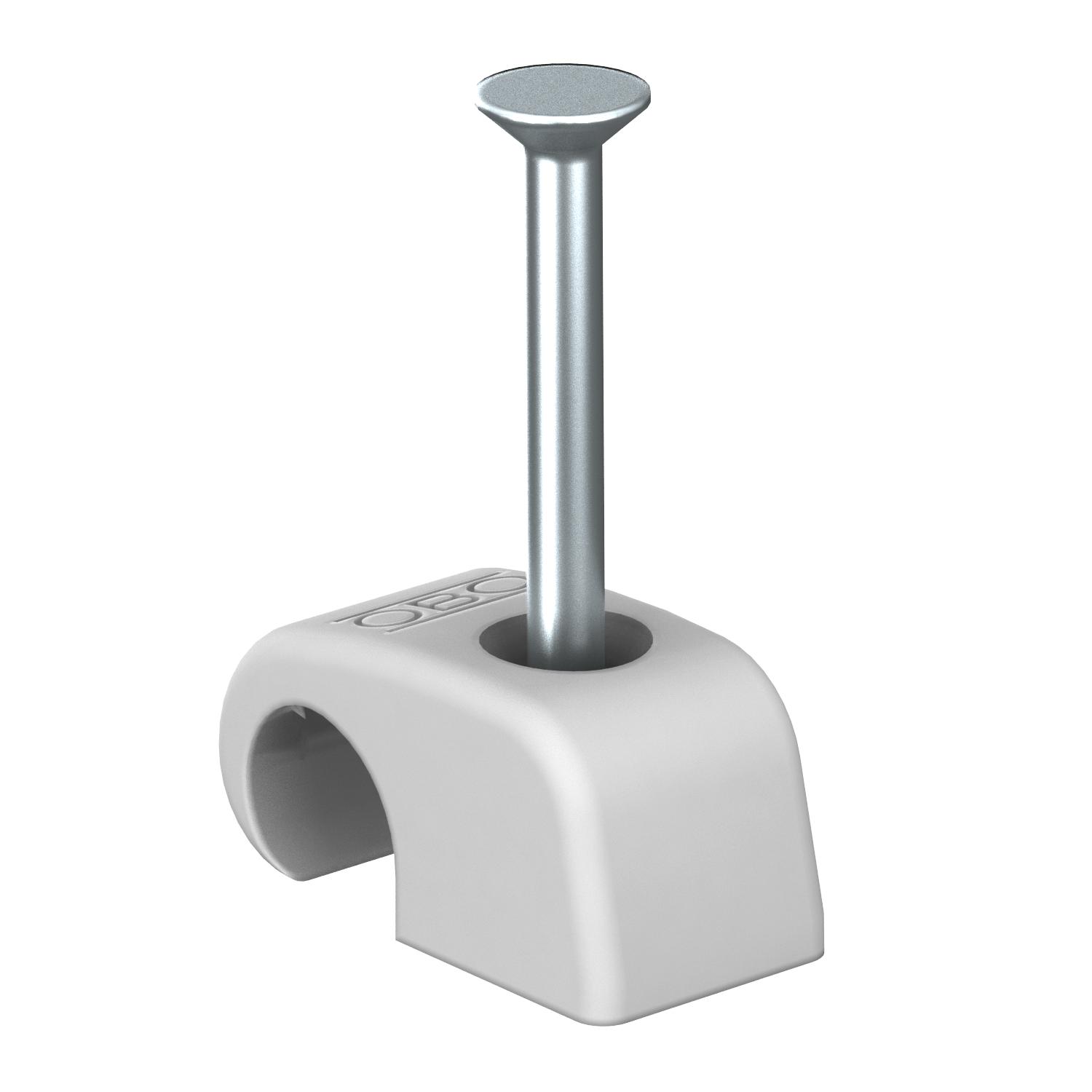

Product graphic 2025 25 LGR SO / 2232901, 48.16 kB, jpg

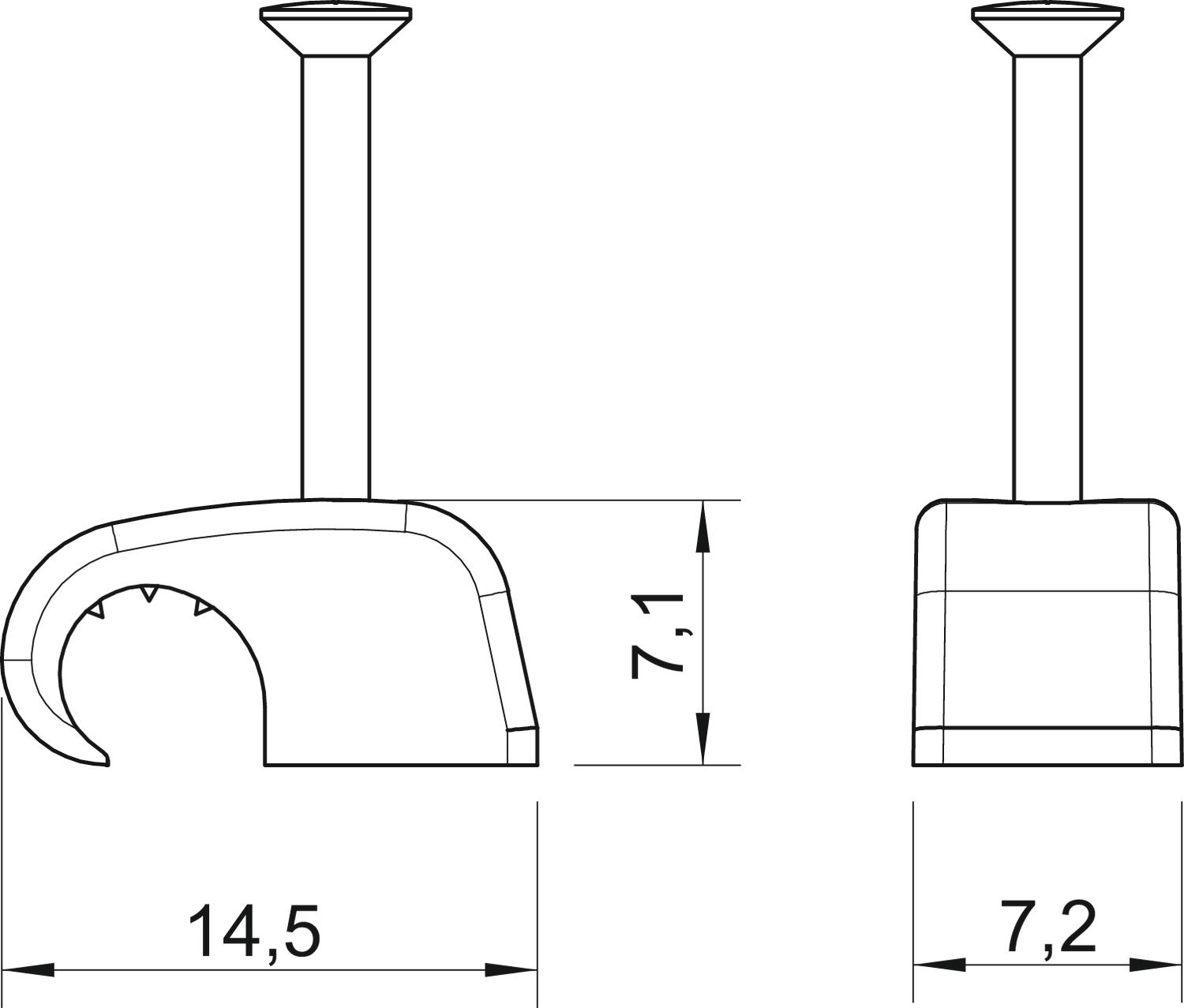

Scale drawing 2025 25 LGR SO / 2232901, 59.16 kB, jpg

2025 25 LGR SO / 2232901
