Adhesive clip 2026, light grey 18 | 7 | 12 | 2 x 18 | Light grey; RAL 7035
morepic-1 morepic-2

Adhesive clip 2026, light grey

Item no. 2228718 | EAN 4012195219675

7 mm
12 mm
Light grey; RAL 7035
Product description
Product description
Adhesive clip, for clamping to the cable.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 7-12mm, L18

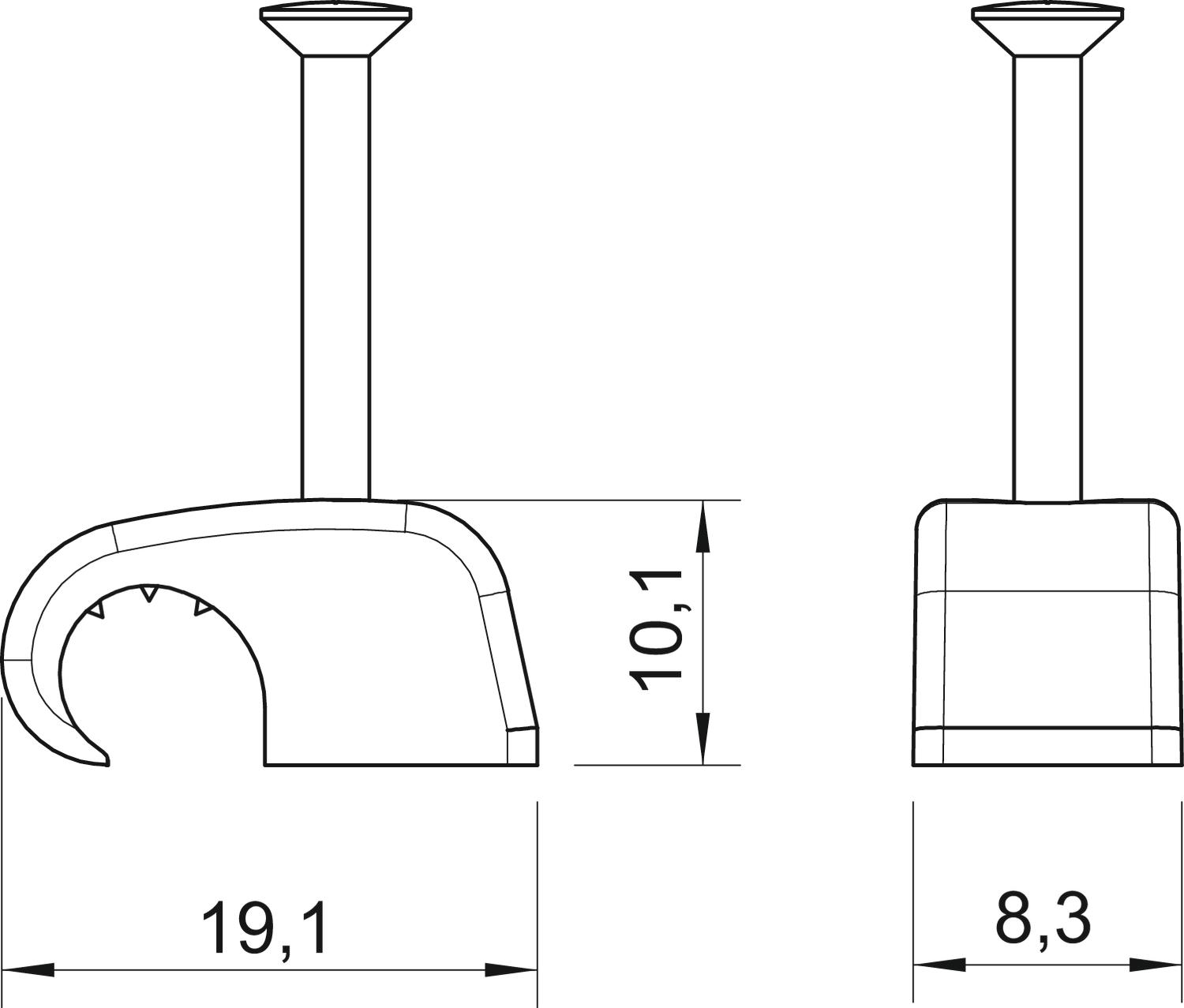

Dimension B 8,3 mm
Dimension H 10,1 mm
Dimension L 19,1 mm
Double clip no
for cable diameter, max. 12 mm
for cable diameter, min. 7 mm
For nail diameter 2 x 18
Halogen-free yes
Hardened yes
Impact-resistant yes
Material Polypropylene
Nail length 18 mm
Pipe locking no
Shape Round (for round conductor)
With nail yes
All types

All types

Types Nail length for cable diameter, min. for cable diameter, max. For nail diameter Colour Item no. Quantity SSU
2026 25 LGR SP 25 mm 7 mm 12 mm 2 x 25 Light grey; RAL 7035 2228432
200 piece
2026 35 LGR SP 35 mm 7 mm 12 mm 2 x 35 Light grey; RAL 7035 2228440
200 piece
2026 45 LGR SP 45 mm 7 mm 12 mm 2 x 45 Light grey; RAL 7035 2228467
200 piece
2026 18 LGR 18 mm 7 mm 12 mm 2 x 18 Light grey; RAL 7035 2228718
100 piece
2026 25 LGR 25 mm 7 mm 12 mm 2 x 25 Light grey; RAL 7035 2228726
100 piece
2026 35 LGR 35 mm 7 mm 12 mm 2 x 35 Light grey; RAL 7035 2228734
100 piece
2026 45 LGR 45 mm 7 mm 12 mm 2 x 45 Light grey; RAL 7035 2228750
100 piece
2026 25 LGR SO 25 mm 7 mm 12 mm 2 x 25 Light grey; RAL 7035 2232928
4500 piece
2026 35 LGR SO 35 mm 7 mm 12 mm 2 x 35 Light grey; RAL 7035 2232930
3600 piece
