Adhesive clip 2026, light grey 35 | 7 | 12 | 2 x 35 | Light grey; RAL 7035

morepic-1

morepic-2

Adhesive clip 2026, light grey

Item no. 2232930 | EAN 4012195519614

Item no. / Types

Nail length

for cable diameter, min.	7 mm

for cable diameter, max.	12 mm

For nail diameter

Colour	Light grey; RAL 7035

Product description

Product description

Adhesive clip, for clamping to the cable.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	7-12mm, L35
Dimension B	8,3 mm
Dimension H	10,1 mm
Dimension L	19,1 mm
Double clip	no
for cable diameter, max.	12 mm
for cable diameter, min.	7 mm
For nail diameter	2 x 35

Halogen-free	yes
Hardened	yes
Impact-resistant	yes
Material	Polypropylene
Nail length	35 mm
Pipe locking	no
Shape	Round (for round conductor)
With nail	yes

All types

All types

Types	Nail length	for cable diameter, min.	for cable diameter, max.	For nail diameter	Colour	Item no.	Quantity	SSU
2026 25 LGR SP	25 mm	7 mm	12 mm	2 x 25	Light grey; RAL 7035	2228432	piece	200 piece
2026 35 LGR SP	35 mm	7 mm	12 mm	2 x 35	Light grey; RAL 7035	2228440	piece	200 piece
2026 45 LGR SP	45 mm	7 mm	12 mm	2 x 45	Light grey; RAL 7035	2228467	piece	200 piece
2026 18 LGR	18 mm	7 mm	12 mm	2 x 18	Light grey; RAL 7035	2228718	piece	100 piece
2026 25 LGR	25 mm	7 mm	12 mm	2 x 25	Light grey; RAL 7035	2228726	piece	100 piece
2026 35 LGR	35 mm	7 mm	12 mm	2 x 35	Light grey; RAL 7035	2228734	piece	100 piece
2026 45 LGR	45 mm	7 mm	12 mm	2 x 45	Light grey; RAL 7035	2228750	piece	100 piece
2026 25 LGR SO	25 mm	7 mm	12 mm	2 x 25	Light grey; RAL 7035	2232928	piece	4500 piece
2026 35 LGR SO	35 mm	7 mm	12 mm	2 x 35	Light grey; RAL 7035	2232930	piece	3600 piece

Downloads

Data sheet 2026 35 LGR SO / 2232930 , 0.17MB , pdf

Catalogue Connection and fastening systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, connection and fastening systems , 2.10MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2026 35 LGR SO / 2232930 , 0.06MB , pdf

Download

REACH Declaration of conformity 2026 35 LGR SO / 2232930 , 0.12MB , pdf

Download

RoHS Declaration of conformity 2026 35 LGR SO / 2232930 , 0.12MB , pdf

Download

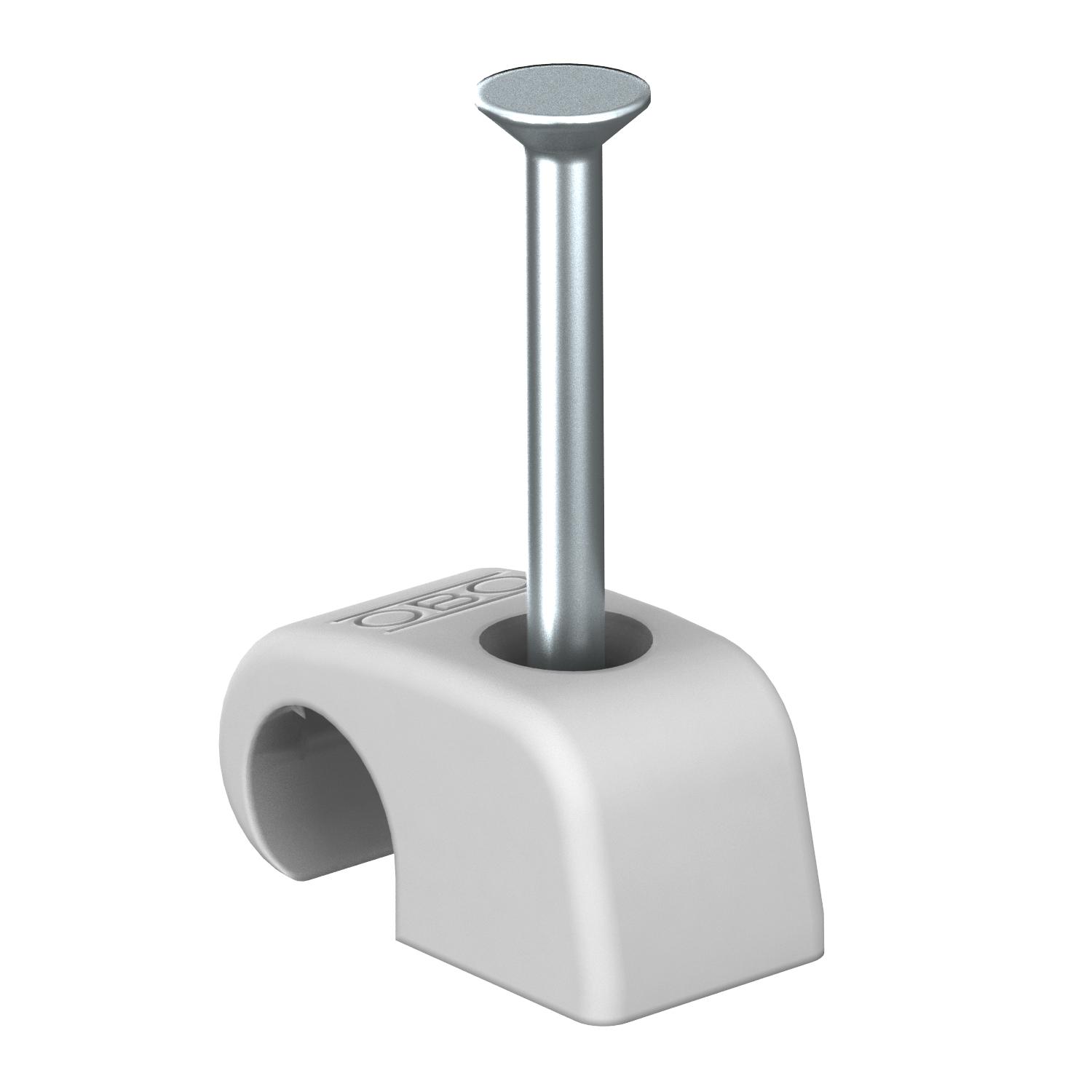

Product graphic 2026 35 LGR SO / 2232930, 48.16 kB, jpg

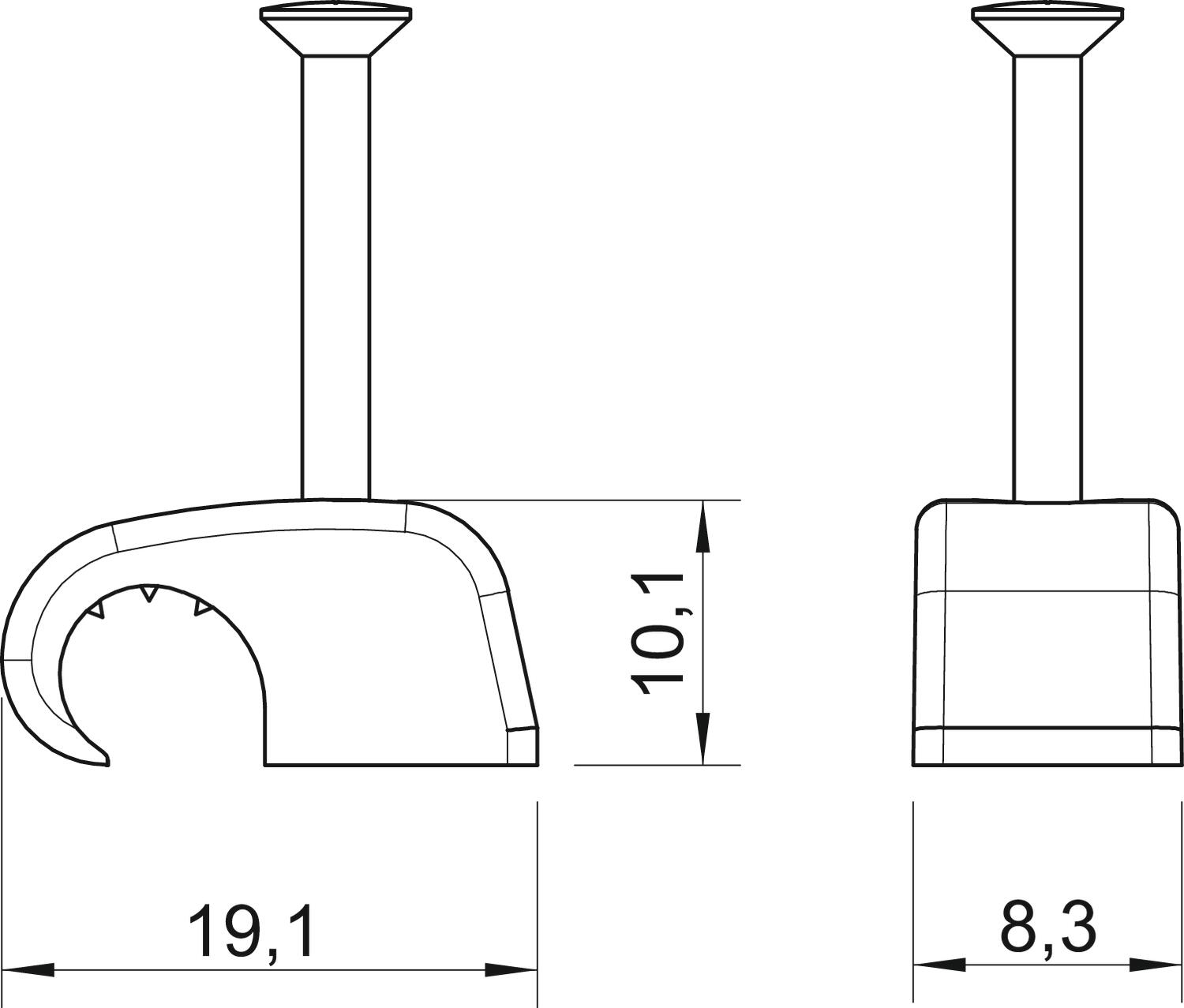

Scale drawing 2026 35 LGR SO / 2232930, 60.39 kB, jpg

2026 35 LGR SO / 2232930
