Adhesive clip 2026, pure white 18 | 7 | 12 | 2,0 x 18 | Pure white; RAL 9010
morepic-1 morepic-2

Adhesive clip 2026, pure white

Item no. 2228420 | EAN 4012195496397

7 mm
12 mm
Pure white; RAL 9010
Product description
Product description
Adhesive clip, for clamping to the cable.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Pure white; RAL 9010
Dimension 7-12mm, L18

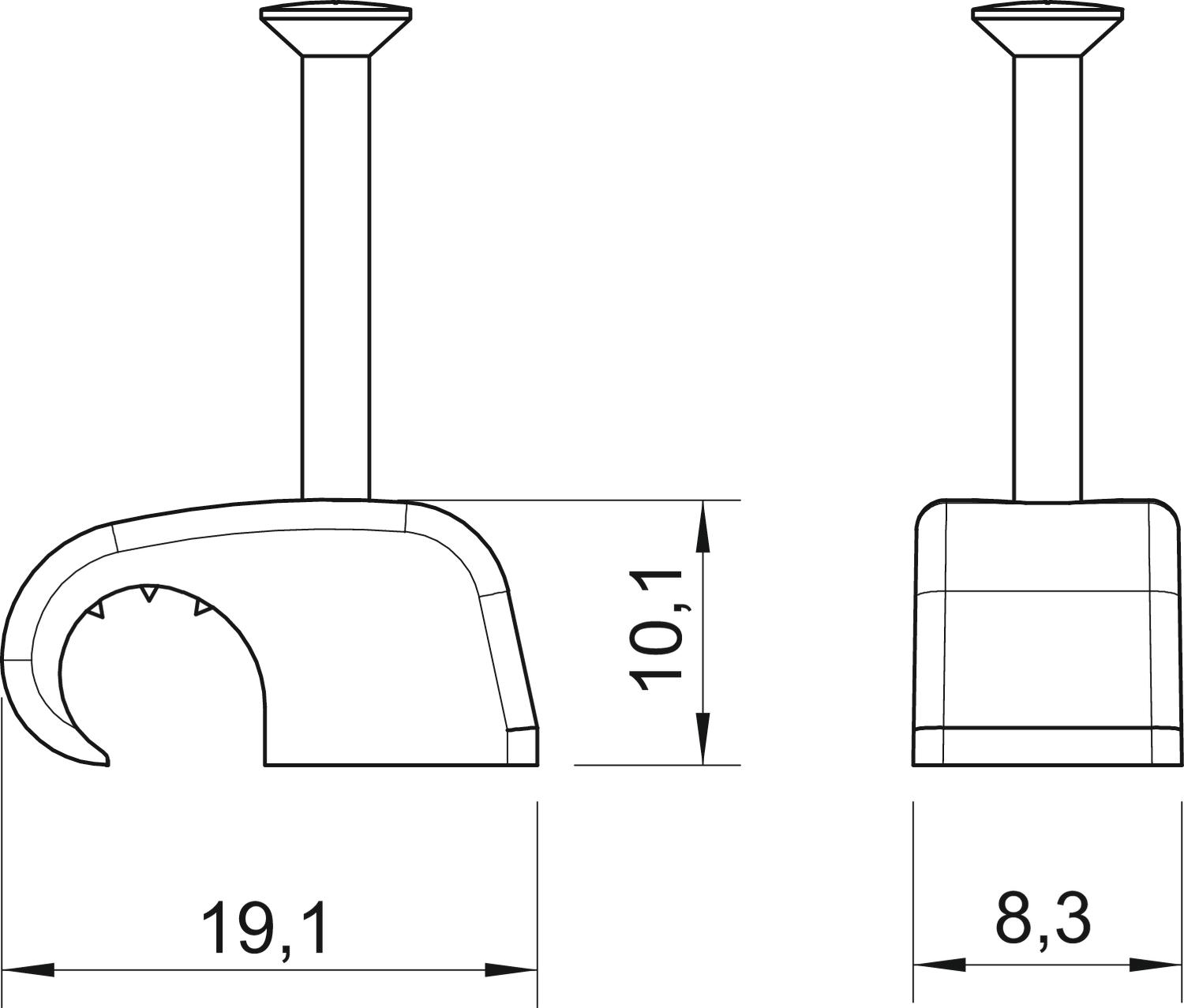

Dimension B 8,3 mm
Dimension H 10,1 mm
Dimension L 19,1 mm
Double clip no
for cable diameter, max. 12 mm
for cable diameter, min. 7 mm
For nail diameter 2,0 x 18
Halogen-free yes
Hardened yes
Impact-resistant yes
Material Polypropylene
Nail length 18 mm
Pipe locking no
Shape Round (for round conductor)
With nail yes
All types

All types

Types Nail length for cable diameter, min. for cable diameter, max. For nail diameter Colour Item no. Quantity SSU
2026 18 RW 18 mm 7 mm 12 mm 2,0 x 18 Pure white; RAL 9010 2228420
100 piece
2026 25 RW 25 mm 7 mm 12 mm 2,0 x 25 Pure white; RAL 9010 2228422
100 piece
Downloads

Download

Download

EU declaration of conformity 2026 18 RW / 2228420 , 0.06MB , pdf
Download
REACH Declaration of conformity 2026 18 RW / 2228420 , 0.12MB , pdf
Download
RoHS Declaration of conformity 2026 18 RW / 2228420 , 0.13MB , pdf
