Adhesive clip 2026, pure white 25 | 7 | 12 | 2,0 x 25 | Pure white; RAL 9010

morepic-1

morepic-2

Adhesive clip 2026, pure white

Item no. 2228422 | EAN 4012195496458

Item no. / Types

Nail length

for cable diameter, min.	7 mm

for cable diameter, max.	12 mm

For nail diameter

Colour	Pure white; RAL 9010

Product description

Product description

Adhesive clip, for clamping to the cable.

Technical data

Technical data

Colour	Pure white; RAL 9010
Dimension	7-12mm, L25
Double clip	no
for cable diameter, max.	12 mm
for cable diameter, min.	7 mm
For nail diameter	2,0 x 25
Halogen-free	yes

Hardened	yes
Impact-resistant	yes
Material	Polypropylene
Nail length	25 mm
Pipe locking	no
Shape	Round (for round conductor)
With nail	yes

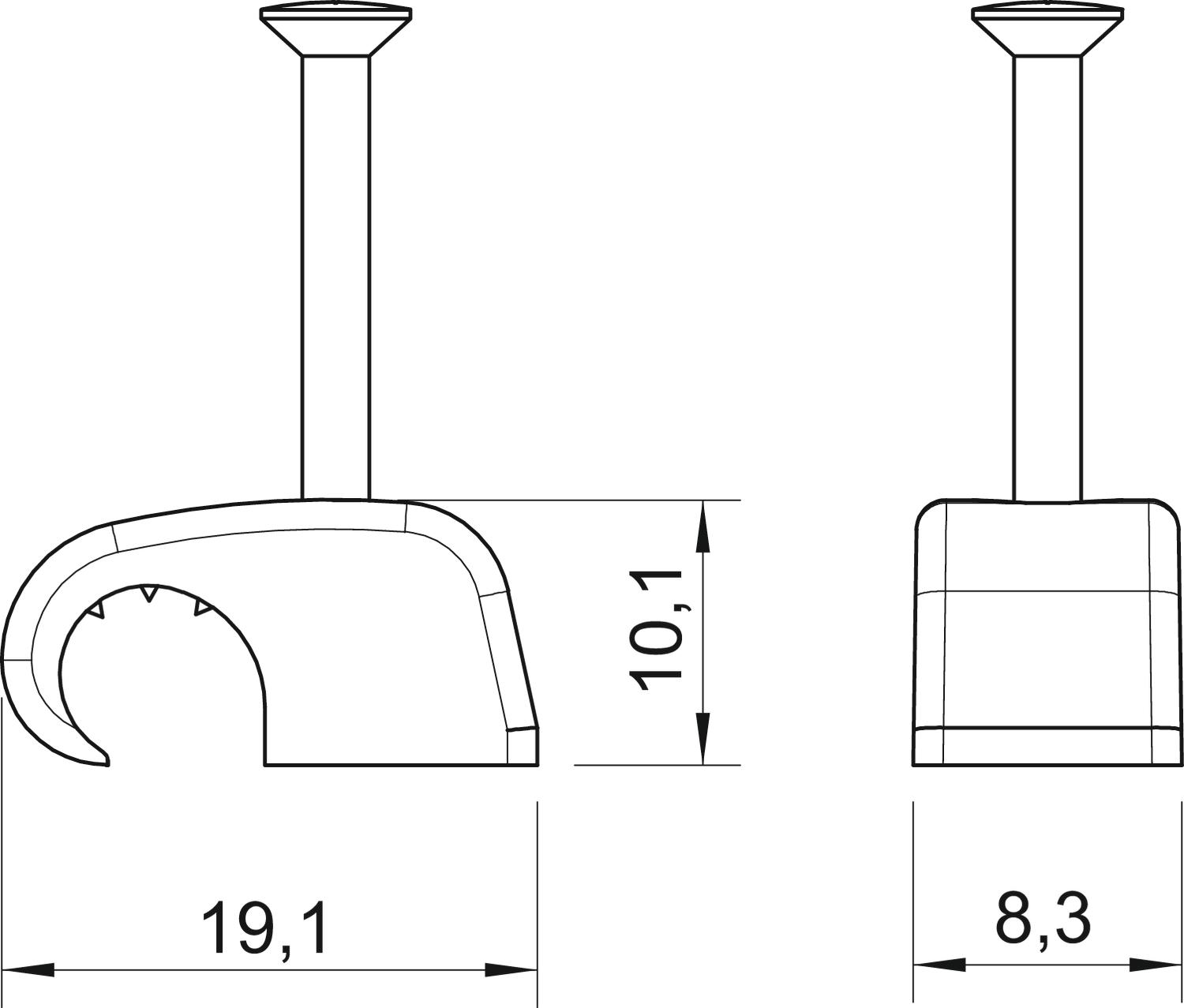

Dimensions

Dimension B	8,3 mm
Dimension H	10,1 mm

Dimension L	19,1 mm

All types

All types

Types	Nail length	for cable diameter, min.	for cable diameter, max.	For nail diameter	Colour	Item no.	Quantity	SSU
2026 18 RW	18 mm	7 mm	12 mm	2,0 x 18	Pure white; RAL 9010	2228420	piece	100 piece
2026 25 RW	25 mm	7 mm	12 mm	2,0 x 25	Pure white; RAL 9010	2228422	piece	100 piece

Downloads

Data sheet 2026 25 RW / 2228422 , 0.21MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2026 25 RW / 2228422 , 0.06MB , pdf

Download

Product graphic 2026 25 RW / 2228422, 43.60 kB, jpg

Scale drawing 2026 25 RW / 2228422, 60.41 kB, jpg

2026 25 RW / 2228422
