Adhesive clip 2027, light grey 40 | 10 | 14 | 2,0 x 40 | Light grey; RAL 7035

morepic-1

morepic-2

Adhesive clip 2027, light grey

Item no. 2232940 | EAN 4012195519737

Item no. / Types

Nail length

for cable diameter, min.	10 mm

for cable diameter, max.	14 mm

For nail diameter

Colour	Light grey; RAL 7035

Product description

Product description

Adhesive clip, for clamping to the cable.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	10-14mm, L40
Dimension B	10 mm
Dimension H	13,3 mm
Dimension L	28 mm
Double clip	no
for cable diameter, max.	14 mm
for cable diameter, min.	10 mm
For nail diameter	2,0 x 40

Halogen-free	yes
Hardened	yes
Impact-resistant	yes
Material	Polypropylene
Nail length	40 mm
Pipe locking	no
Shape	Round (for round conductor)
With nail	yes

All types

All types

Types	Nail length	for cable diameter, min.	for cable diameter, max.	For nail diameter	Colour	Item no.	Quantity	SSU
2027 25 LGR	25 mm	10 mm	14 mm	2,0 x 25	Light grey; RAL 7035	2228823	piece	100 piece
2027 30 LGR	-	10 mm	14 mm	2,0 x 30	Light grey; RAL 7035	2228831	piece	100 piece
2027 40 LGR	-	10 mm	14 mm	2,0 x 40	Light grey; RAL 7035	2228858	piece	100 piece
2027 30 LGR SO	30 mm	10 mm	14 mm	2,0 x 30	Light grey; RAL 7035	2232936	piece	1500 piece
2027 40 LGR SO	40 mm	10 mm	14 mm	2,0 x 40	Light grey; RAL 7035	2232940	piece	1500 piece

Downloads

Data sheet 2027 40 LGR SO / 2232940 , 0.17MB , pdf

Catalogue Connection and fastening systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, connection and fastening systems , 2.10MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

EU declaration of conformity 2027 40 LGR SO / 2232940 , 0.06MB , pdf

Download

REACH Declaration of conformity 2027 40 LGR SO / 2232940 , 0.12MB , pdf

Download

RoHS Declaration of conformity 2027 40 LGR SO / 2232940 , 0.12MB , pdf

Download

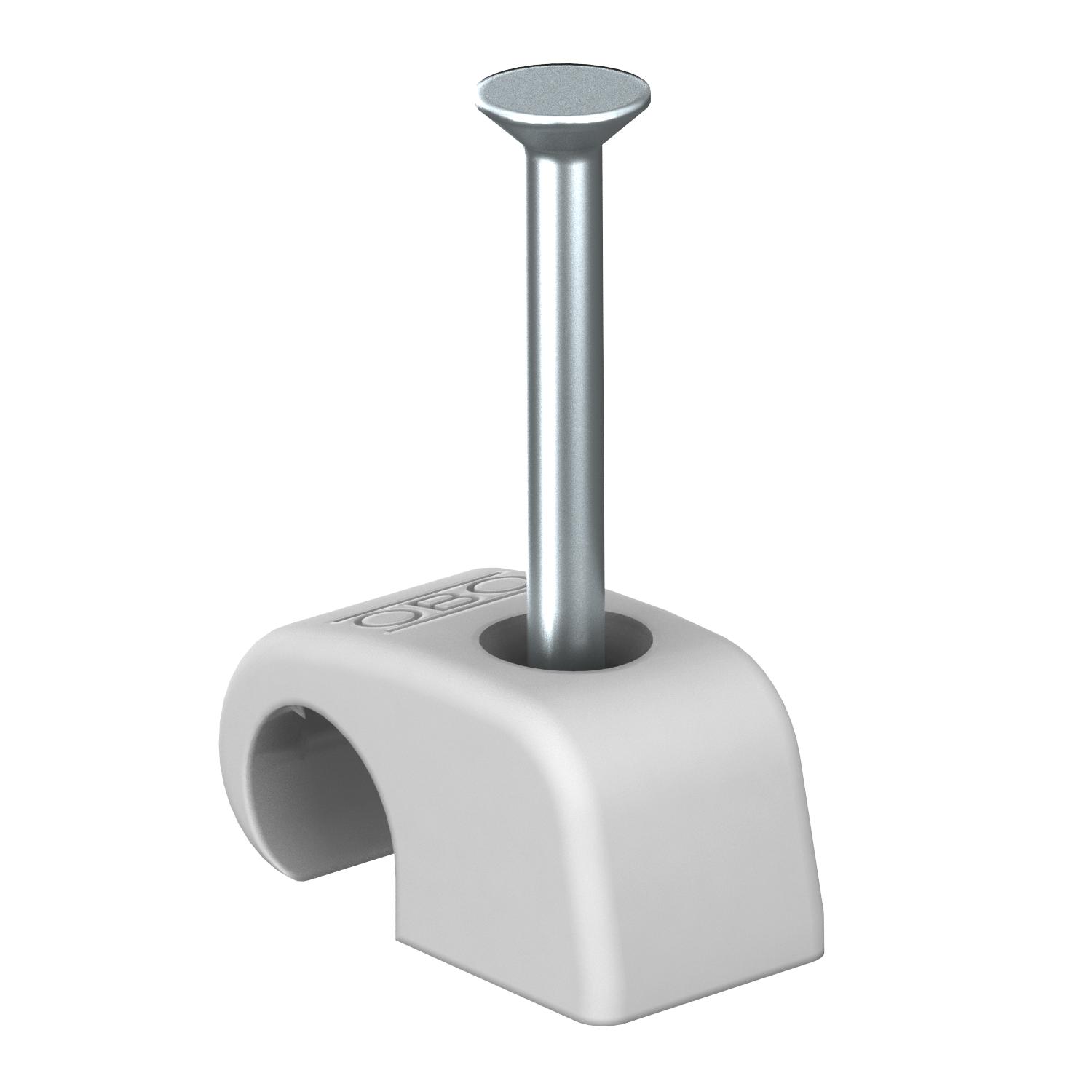

Product graphic 2027 40 LGR SO / 2232940, 48.16 kB, jpg

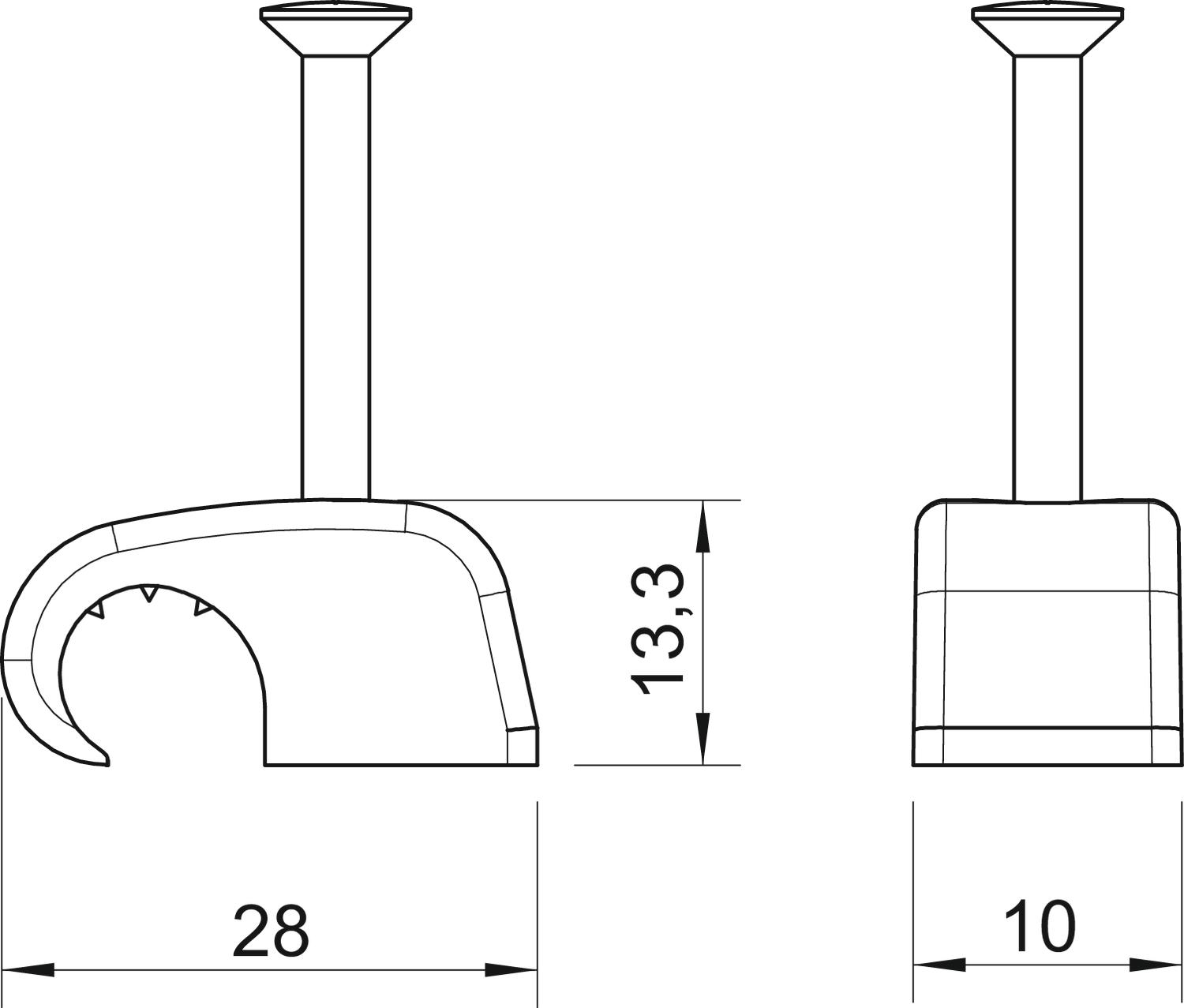

Scale drawing 2027 40 LGR SO / 2232940, 60.11 kB, jpg
