Adhesive clip 2028, light grey

Item no. 2228904 | EAN 4012195220039

2228904 / 2028 40 LGR
40 mm
14 mm
17 mm
2,0 x 40
Light grey; RAL 7035
Product description

Product description

Adhesive clip, for clamping to the cable.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 14-17mm, L40

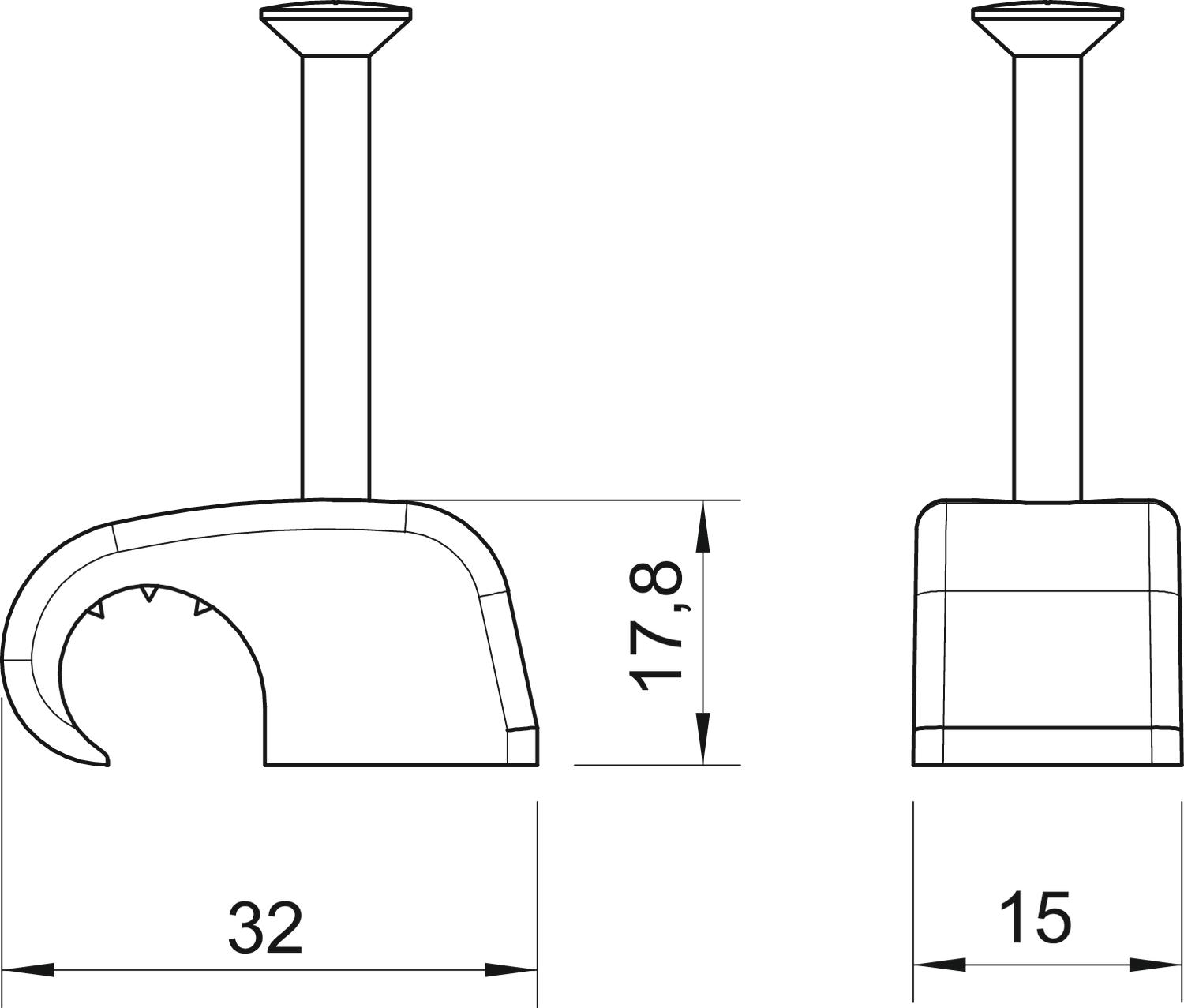

Dimension B 15 mm
Dimension H 17,8 mm
Dimension L 32 mm
Double clip no
for cable diameter, max. 17 mm
for cable diameter, min. 14 mm
For nail diameter 2,0 x 40
Halogen-free yes
Hardened yes
Impact-resistant yes
Material Polypropylene
Nail length 40 mm
Pipe locking no
Shape Round (for round conductor)
With nail yes
All types

All types

Types Nail length for cable diameter, min. for cable diameter, max. For nail diameter Colour Item no. Quantity SSU
2028 40 LGR 40 mm 14 mm 17 mm 2,0 x 40 Light grey; RAL 7035 2228904
100 piece
