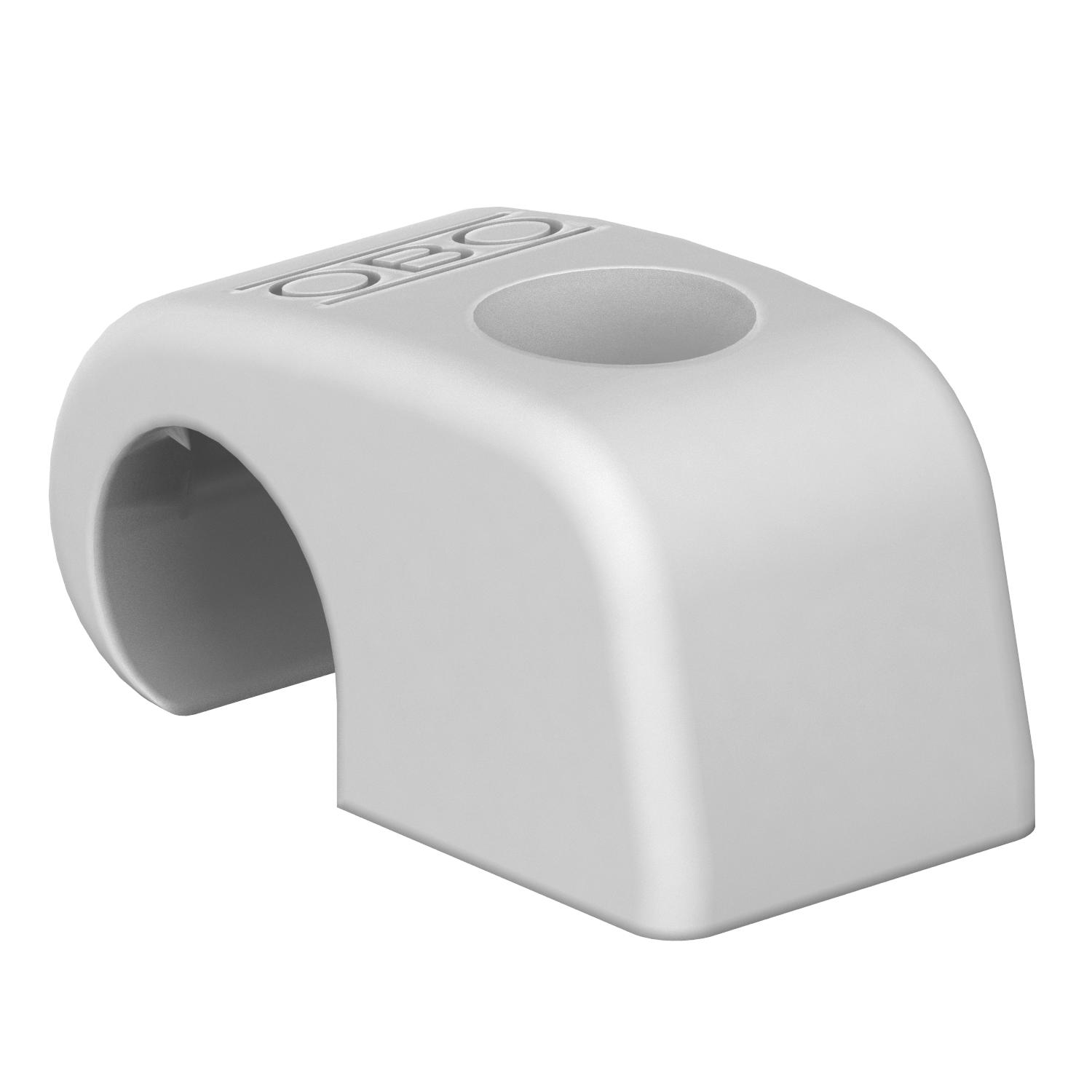

Adhesive clip 4040, without nail

Item no. 2214881 | EAN 4012195599838

7 mm
12 mm
2
Light grey; RAL 7035
Product description
Product description
Adhesive clip, for clamping to the cable, suitable for steel nails 2 mm.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 7-12mm

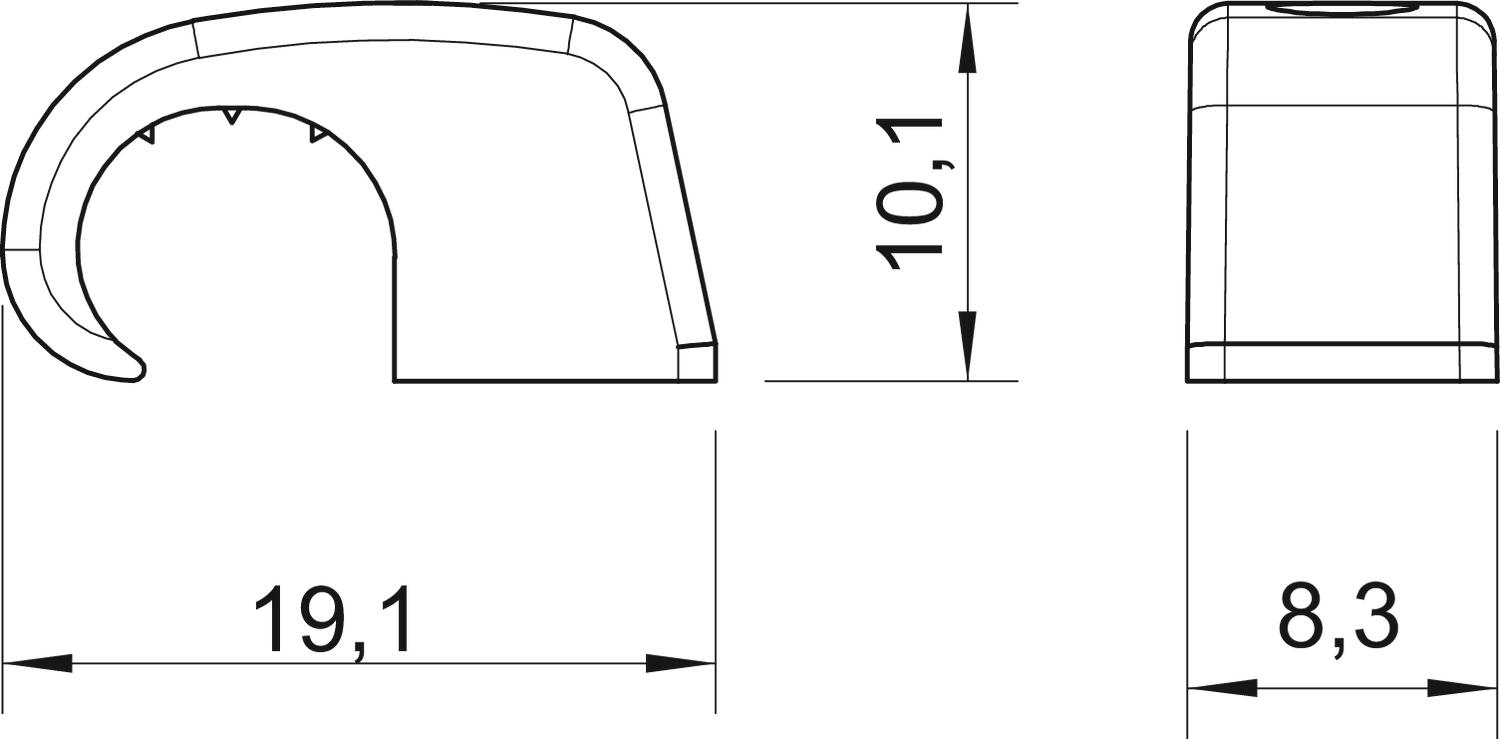

Dimension B 8,3 mm
Dimension H 10,1 mm
Dimension L 19,1 mm
Double clip no
for cable diameter, max. 12 mm
for cable diameter, min. 7 mm
For nail diameter 2
Halogen-free yes
Hardened no
Impact-resistant yes
Material Polypropylene
Pipe locking no
Shape Round (for round conductor)
With nail no
All types

All types

Types for cable diameter, min. for cable diameter, max. For nail diameter Colour Item no. Quantity SSU
4040 SP 7 mm 12 mm 2 Light grey; RAL 7035 2214881
200 piece
4040 7 mm 12 mm 2 Light grey; RAL 7035 2215314
100 piece
