Adhesive clip 4043, without nail | 17 | 21 | 2 | Light grey; RAL 7035

morepic-1

morepic-2

Adhesive clip 4043, without nail

Item no. 2215330 | EAN 4012195213734

Item no. / Types	2215330 / 4043

for cable diameter, min.	17 mm

for cable diameter, max.	21 mm

For nail diameter	2

Colour	Light grey; RAL 7035

Product description

Product description

Adhesive clip, for clamping to the cable, suitable for steel nails 2 mm.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	17-21mm
Dimension B	12 mm
Dimension H	21,6 mm
Dimension H1	38 mm
Dimension L	38 mm
Double clip	no
for cable diameter, max.	21 mm
for cable diameter, min.	17 mm

For nail diameter	2
Halogen-free	yes
Hardened	no
Impact-resistant	yes
Material	Polypropylene
Pipe locking	no
Shape	Round (for round conductor)
With nail	no

All types

All types

Types	for cable diameter, min.	for cable diameter, max.	For nail diameter	Colour	Item no.	Quantity	SSU
4043	17 mm	21 mm	2	Light grey; RAL 7035	2215330	piece	100 piece

Downloads

Data sheet 4043 / 2215330 , 0.19MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

EU declaration of conformity 4043 / 2215330 , 0.06MB , pdf

Download

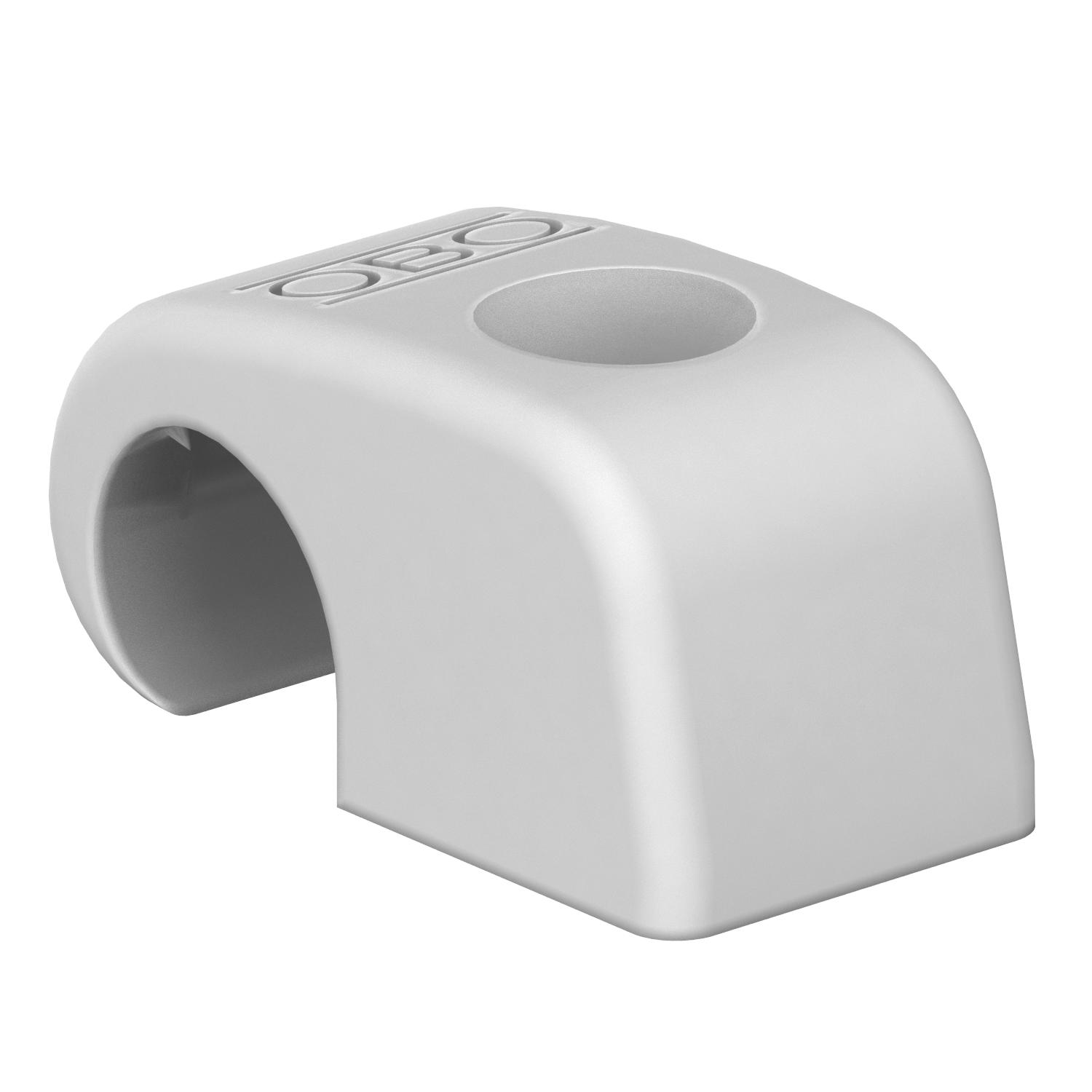

Product graphic 4043 / 2215330, 52.03 kB, jpg

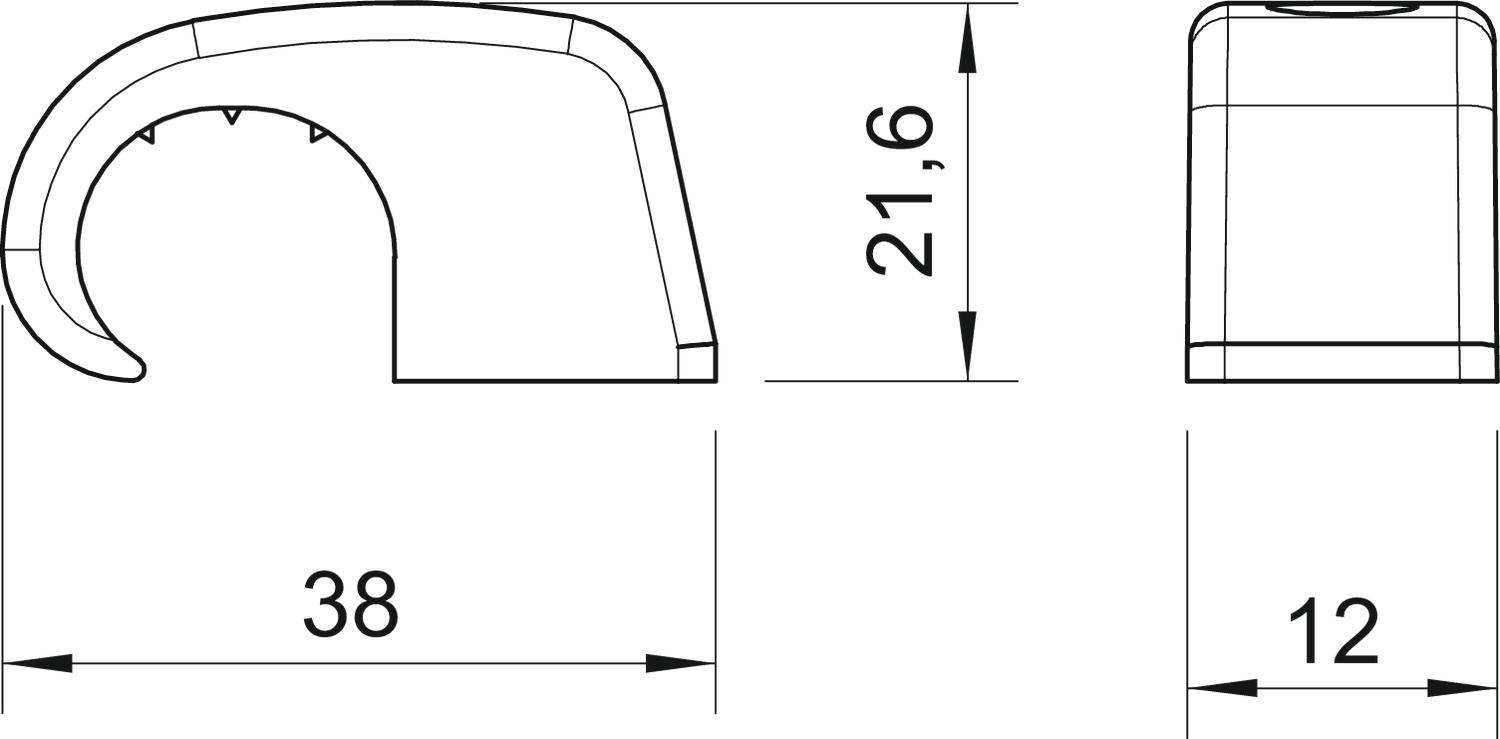

Scale drawing 4043 / 2215330, 47.79 kB, jpg

4043 / 2215330
