Adhesive clip 4044, without nail | 21 | 25 | 2 | Light grey; RAL 7035

morepic-1

morepic-2

Adhesive clip 4044, without nail

Item no. 2215357 | EAN 4012195213857

Item no. / Types	2215357 / 4044

for cable diameter, min.	21 mm

for cable diameter, max.	25 mm

For nail diameter	2

Colour	Light grey; RAL 7035

Product description

Product description

Adhesive clip, for clamping to the cable, suitable for steel nails 2 mm.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	21-25mm
Dimension B	15 mm
Dimension H	26,7 mm
Dimension H1	45 mm
Dimension L	45 mm
Double clip	no
for cable diameter, max.	25 mm
for cable diameter, min.	21 mm

For nail diameter	2
Halogen-free	yes
Hardened	no
Impact-resistant	yes
Material	Polypropylene
Pipe locking	no
Shape	Round (for round conductor)
With nail	no

All types

All types

Types	for cable diameter, min.	for cable diameter, max.	For nail diameter	Colour	Item no.	Quantity	SSU
4044	21 mm	25 mm	2	Light grey; RAL 7035	2215357	piece	50 piece

Downloads

Data sheet 4044 / 2215357 , 0.19MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

EU declaration of conformity 4044 / 2215357 , 0.06MB , pdf

Download

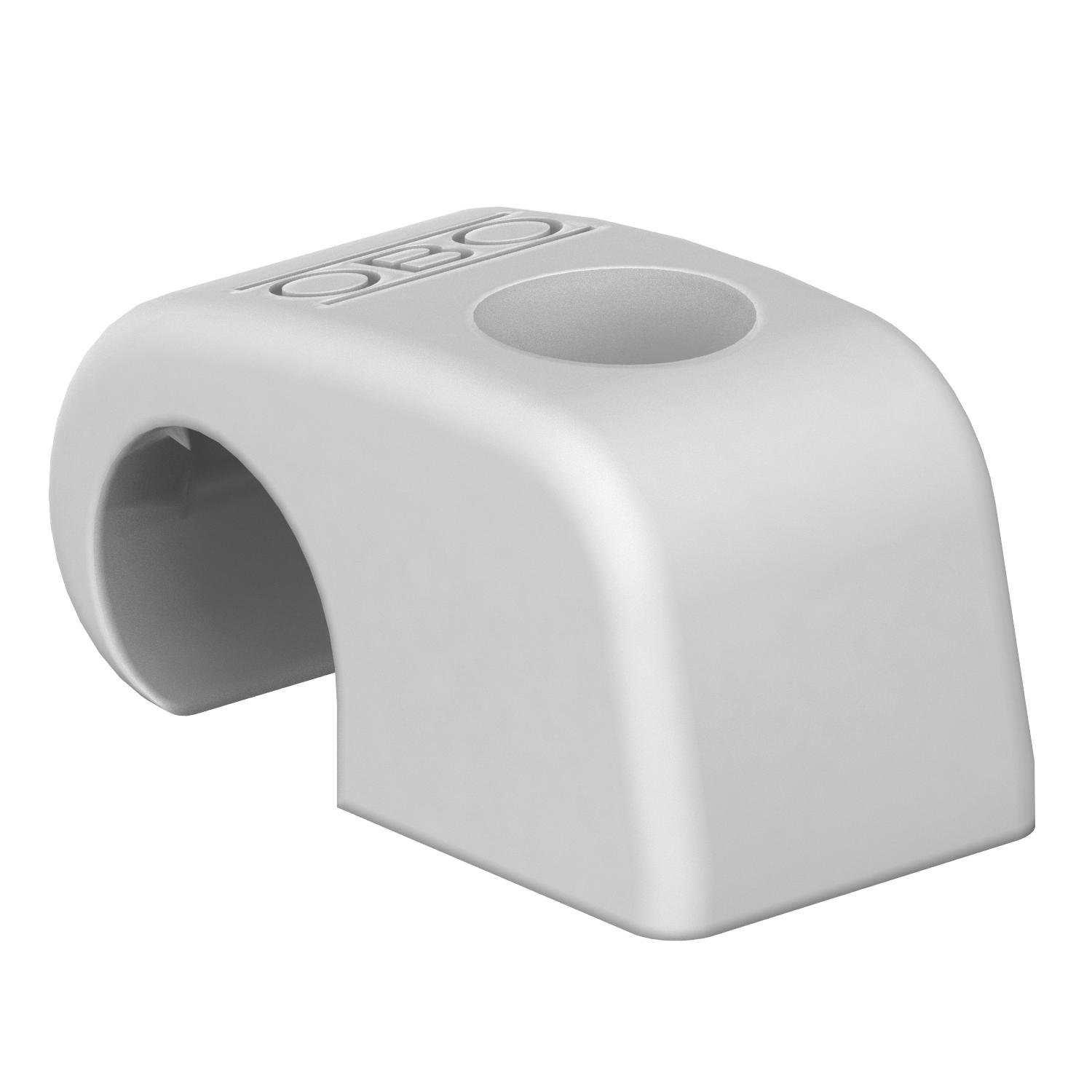

Product graphic 4044 / 2215357, 52.03 kB, jpg

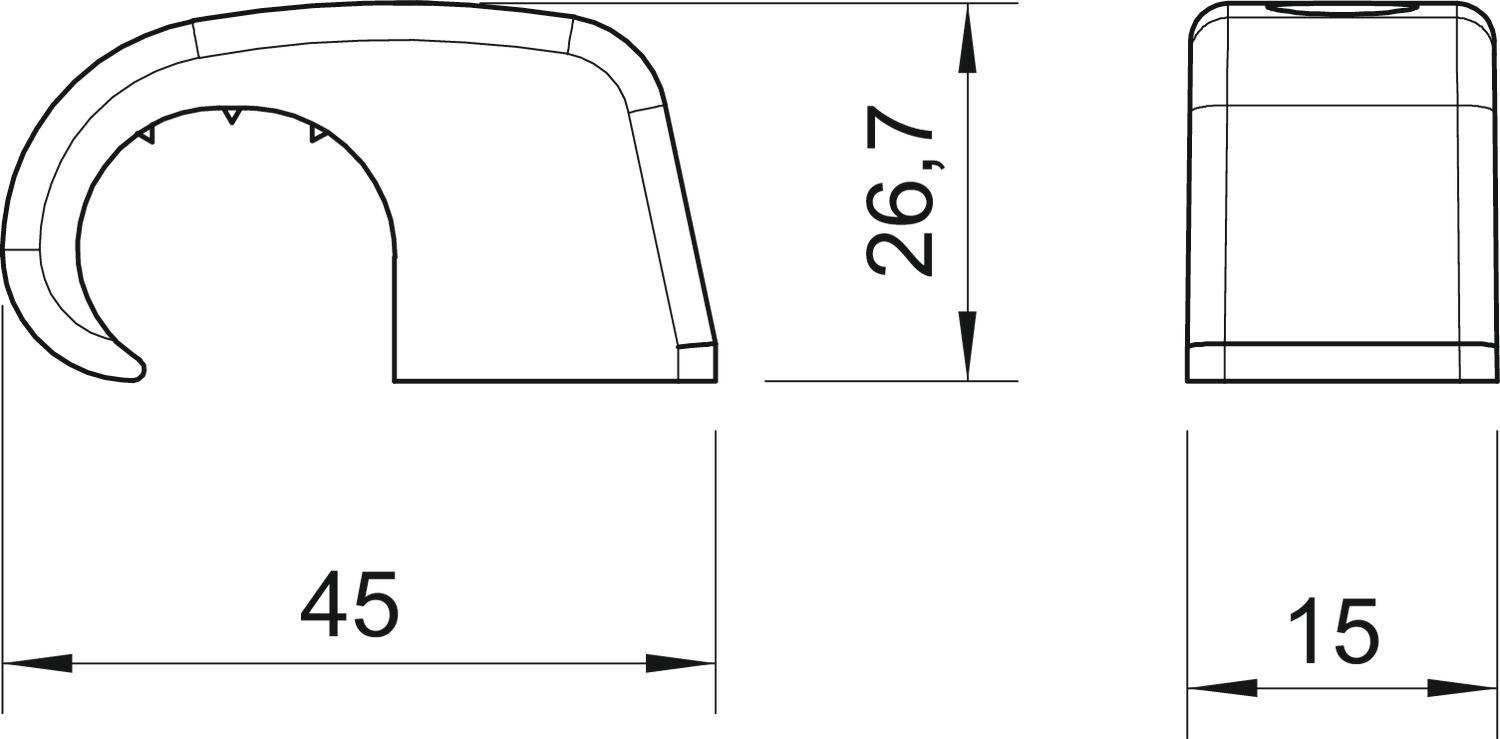

Scale drawing 4044 / 2215357, 47.65 kB, jpg

4044 / 2215357
