Adhesive clip, type 4039, without nail, light grey | 4 | 7 | 2 | Light grey; RAL 7035
morepic-1 morepic-2

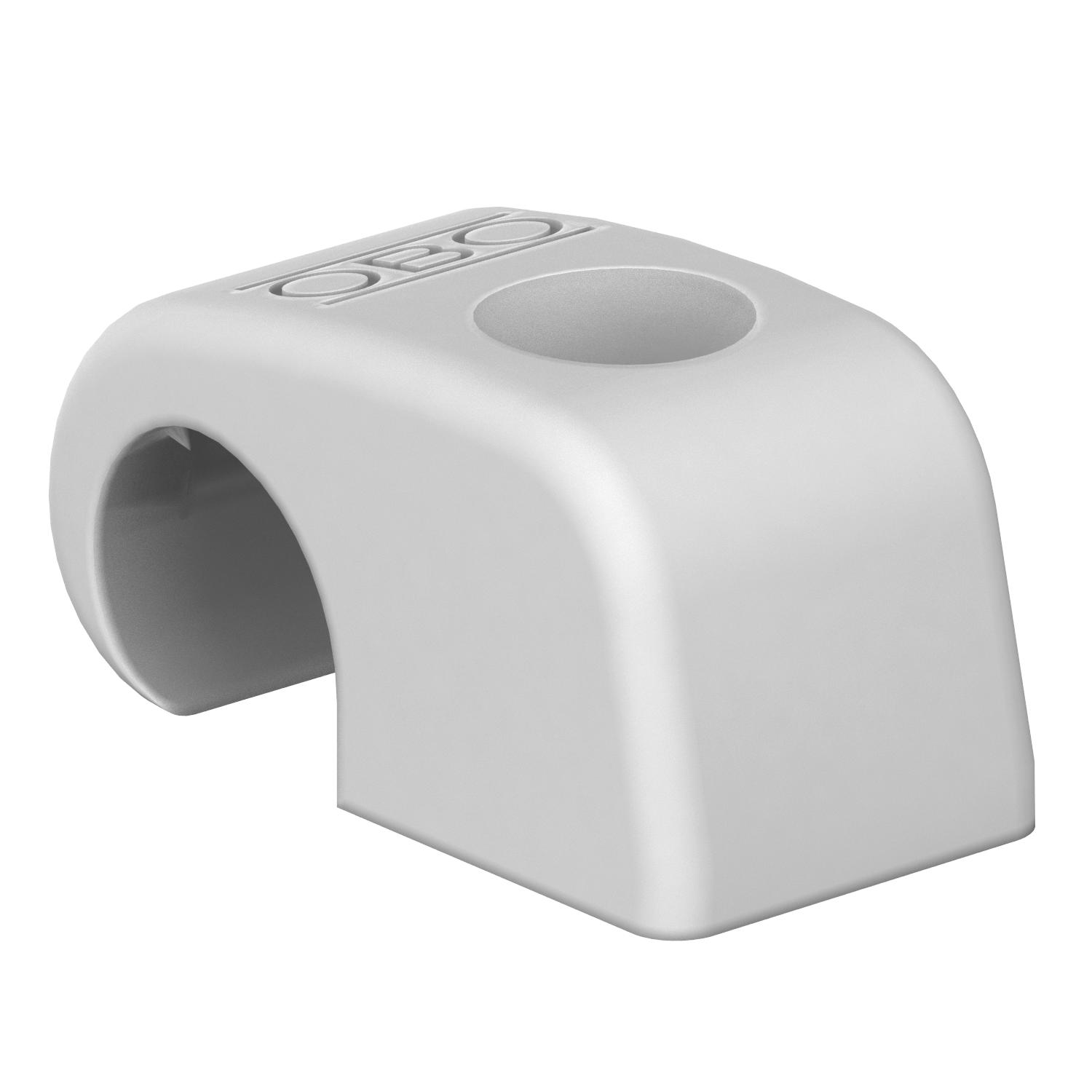

Adhesive clip, type 4039, without nail, light grey

Item no. 2215306 | EAN 4012195213550

4 mm
7 mm
2
Light grey; RAL 7035
Product description
Product description
Adhesive clip, for clamping to the cable, suitable for steel nails 2 mm.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 4-7mm

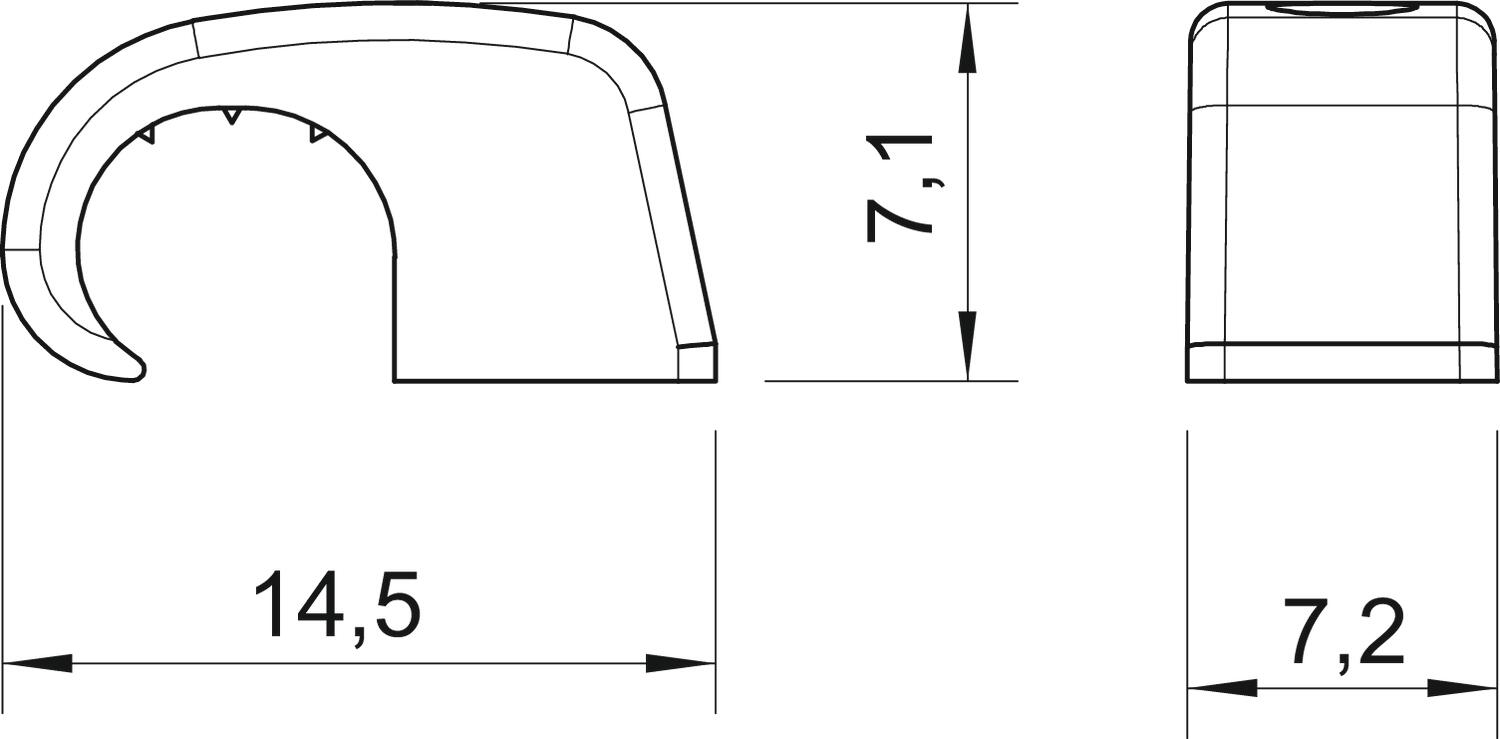

Dimension B 7,2 mm
Dimension H 7,1 mm
Dimension L 14,5 mm
Double clip no
for cable diameter, max. 7 mm
for cable diameter, min. 4 mm
For nail diameter 2
Halogen-free yes
Hardened no
Impact-resistant no
Material Polypropylene
Pipe locking no
Shape Round (for round conductor)
With nail no
All types

All types

Types for cable diameter, min. for cable diameter, max. For nail diameter Colour Item no. Quantity SSU
4039 SP 4 mm 7 mm 2 Light grey; RAL 7035 2214873
200 piece
4039 4 mm 7 mm 2 Light grey; RAL 7035 2215306
100 piece
